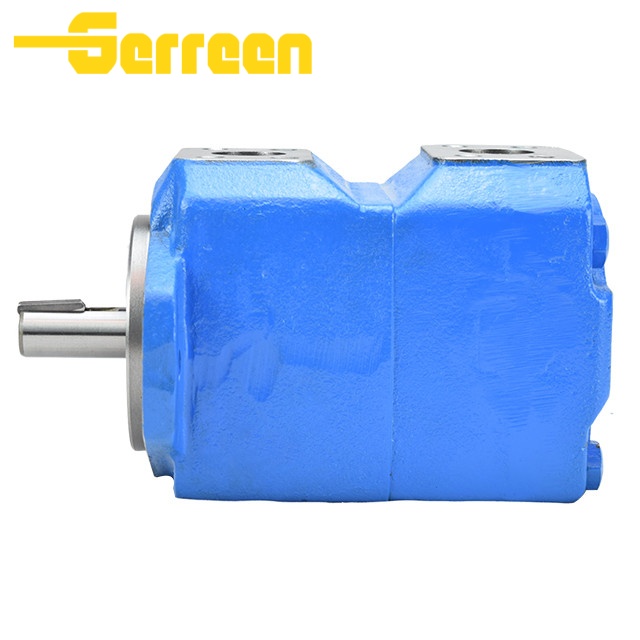

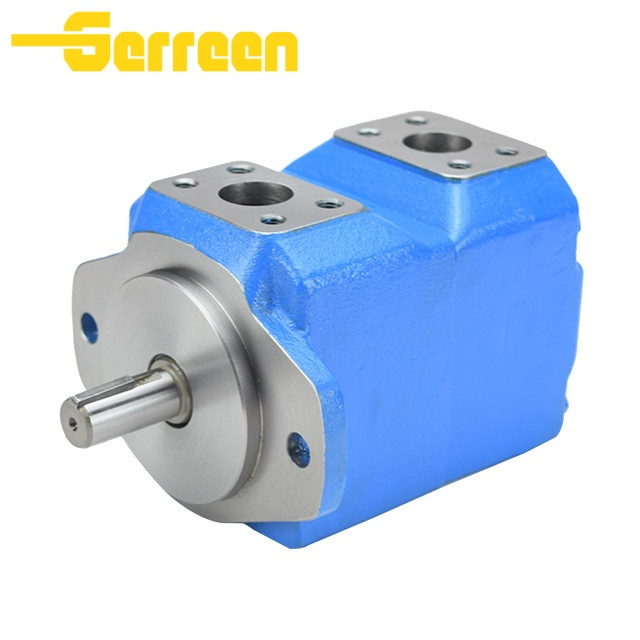

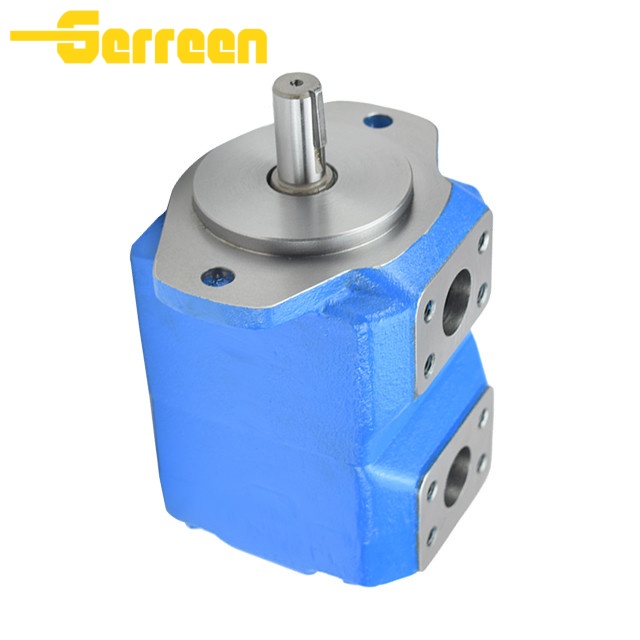

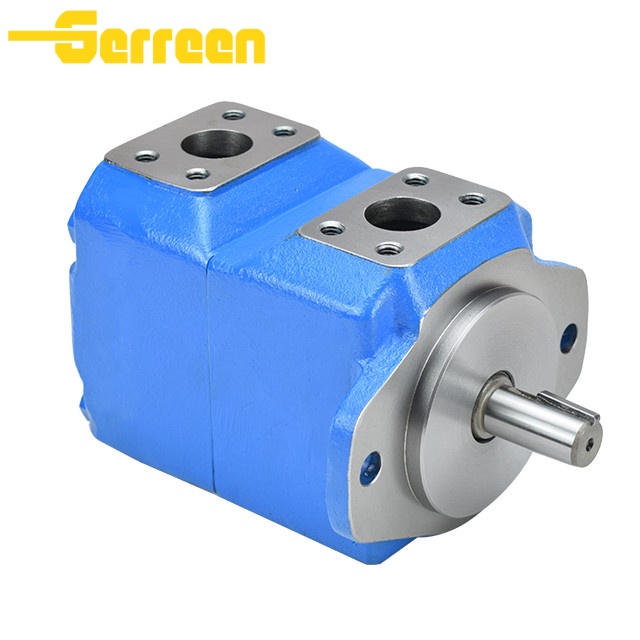

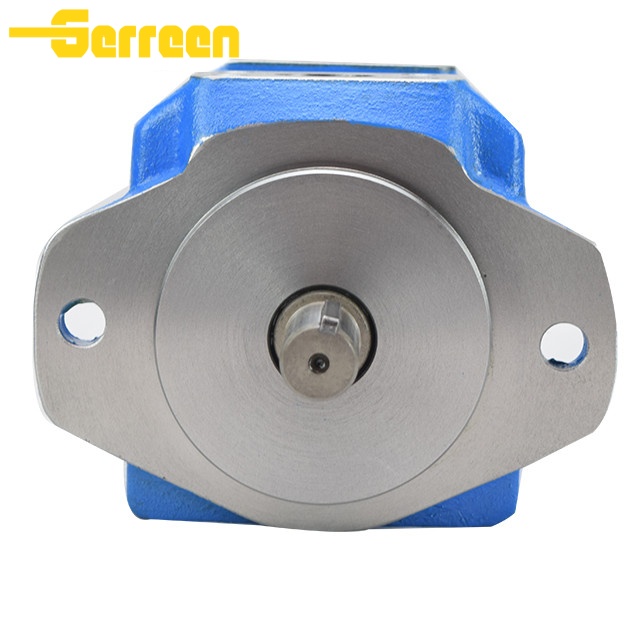

25M Vane Motor
Yes
yes
ISO9001，CE
Standard
1 set
Right hand or Left hand
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Product Description
Green Hydraulic's 25M Vane Motor is designed for superior performance in industrial applications. Engineered to convert hydraulic energy into smooth, high-torque mechanical power, it provides reliable operation for machinery like conveyors, winches, and hydraulic systems. Offering low maintenance and long-lasting durability, the 25M Vane Motor ensures high efficiency in demanding conditions. Its compact design and versatile performance make it ideal for a wide range of B2B applications. Optimize your operations with Green Hydraulic’s trusted solutions.
Key Features:
Maximizes hydraulic energy conversion for consistent, smooth performance.
Ideal for various industrial uses, including conveyors, winches, and hydraulic systems.
Space-saving design without compromising on power or reliability.
Ensures extended service life with reduced wear and tear.
| Model Series | Torque Nm/6,9 bar(lb in/100 psi) | DisplacementcmЗ/r (in3/r) | Flow inputrequired@1200 r/min./min (uSgpm) | Maximum speed & pressures | Approxweightkg (b) |
| 25M | 4.7(42) 6.2(55) 7.3(65) | 43,9(2.68) 57.7(3.52) 68,7 (4.19) | 52,6(13.9) 69,3(18.3) 82.5 (21.8) | 3600 r/min @ 34 bar (500 psi) 4000 r/min @ 34 bar (500 psi) | 18 (40) |
| 35M | 9.0(80) 10.7(95) 13.0(115) | 83.6 (5.10) 100,3 (6.12) 121,9 (7.44) | 100 3 (26.5) 120,4 (31.8) 146.1(38.6) | 29(64) | |
| 45M | 14.7(130) 17.5(155) 20.9(185) | 138.0(8.42) 163,2 (9.96) 193,2(11.79) | 165,4 (43.7) 195.7 (51.7) 232,0(61.3) | 2600 r/min @155 bar(2250 psi) 3000 r/min @ 172 bar(2500 psi) | 39(85) |
| 50M | 24.9(220) 28.8(255) 33.9(300) | 231,2(14.11) 268.1(16.36) 317,1 (19.35) | 277.5 (73.3) 321,8 (85.0) 380,4(100.5) | 2800 r/min @ 34 bar (500 psi) 3200 r/min @ 34 bar (500 psi) 2200 r/min @ 155 bar (2250 psi) 2400 r/min @ 172 bar (2500 psi) | 73(160) |
We are the manufacturer of the 25M vane motor — not just a wholesaler. At Green Hydraulic, we design and produce vane motors and other hydraulic components in our own factory in Changzhou. That means you’re buying directly from the source, ensuring full control over quality, production standards, and after‑sales support.
The design concept behind the Green 25M vane motor stems from the long‑standing technology of hydraulic vane motors: a rotor with sliding vanes enclosed in an eccentric housing that converts pressurized hydraulic fluid into smooth rotational motion. Over time, this design was refined to balance internal pressures and minimize friction — enabling vane motors to deliver stable torque, low noise, and high efficiency in various applications.
Building on this trusted foundation, Green Hydraulic developed the 25M series to meet modern industrial demands. The Green 25M integrates improved manufacturing precision, rigorous quality control, and durable materials to ensure reliable performance under tough conditions. As a result, the Green 25M delivers the proven advantages of vane‑motor technology — smooth operation, consistent torque, and versatility — while aligning with contemporary standards of reliability and export‑quality manufacturing.
Here’s a description of why you should choose Green 25M vane motor — from a customer‑oriented perspective:
The Green 25M vane motor adopts the proven benefits of hydraulic vane‑motor design: smooth rotation, low noise, stable torque at low speeds, and compact structure.
It delivers consistent, reliable performance across diverse industrial applications — even under heavy loads or harsh working conditions — ensuring your machinery keeps running efficiently.
Because Green Hydraulic manufactures the motor directly, you benefit from strict quality control, reliable after‑sales support, and adherence to international standards, which enhances durability and long‑term operational stability.
The motor is versatile and suitable for many uses — from industrial machinery and construction equipment to agricultural devices — making it a flexible choice no matter your project.
