Q How to size hydraulic motor correctly for your application?
A Correct sizing requires calculating torque and speed demands first,then selecting a motor with suitable displacement,pressure rating and efficiency.Oversizing wastes energy; undersizing causes performance issues and shortens service life.
-
Q How to tell if a hydraulic motor is bad?
A Common signs of a failing hydraulic motor include:
Loss of torque or speed
Excessive noise or vibration
Oil leakage from seals
Overheating
Metal contamination in oil
Testing pressure, flow, and leakage can confirm motor condition.
-
Q How to slow down a hydraulic motor?
A To slow down a hydraulic motor:
Reduce flow using a flow control valve
Use a variable displacement pump
Add a pressure-compensated flow regulator
Avoid restricting return lines excessively to prevent heat buildup.
-
Q How to size a hydraulic motor?
A Hydraulic motor sizing depends on:
Required torque
Desired speed
Available system pressure
Available flow rate
Choose a motor displacement that meets torque needs at available pressure and delivers target speed with available flow.
-
Q How to plumb a hydraulic motor?
A To plumb a hydraulic motor correctly:
Connect pressure and return lines correctly
Install a case drain line if required
Use proper hose sizes to reduce pressure loss
Ensure correct flow direction for desired rotation
Incorrect plumbing can cause seal failure or motor damage.
-
Q Difference between hydraulic motor and hydraulic pump
A Hydraulic pump converts mechanical energy into hydraulic energy, while a hydraulic motor converts hydraulic energy into mechanical energy. Pumps create flow; motors consume flow to produce torque and motion.
-
Q How to match a hydraulic pump and motor?
A To properly match a hydraulic pump and motor, ensure:
1. Pump flow matches motor speed requirements
2. Pump pressure meets motor torque demand
3. System pressure rating exceeds operating pressure
4. Displacement sizes are compatible
Correct matching improves efficiency and prevents overheating or failure.
-
Q How to control hydraulic motor speed?
A Hydraulic motor speed is controlled by adjusting the flow rate. This can be done using:
1. Flow control valves
2. Variable displacement pumps
3. Proportional or servo valves
More flow increases speed; less flow slows the motor.
-
Q How to calculate hydraulic motor torque?
A Hydraulic motor torque is calculated using the formula:
Torque (Nm) = (Pressure × Displacement) ÷ (2π)
Where pressure is in Pascals and displacement is in cubic meters per revolution. Higher pressure and larger displacement produce higher torque.
-
Q How to bleed air from a hydraulic motor?
A To bleed air from a hydraulic motor:
1. Fill the hydraulic system with clean oil
2. Loosen the motor case drain or bleed screw
3. Run the system at low speed and pressure
4. Allow trapped air to escape until oil flows smoothly
5. Tighten fittings and check for leaks
Removing air prevents noise, vibration, and damage.
-

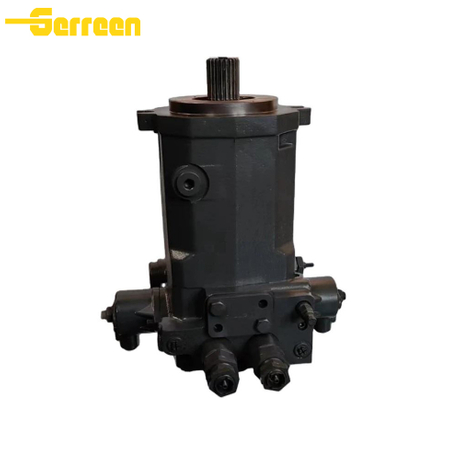

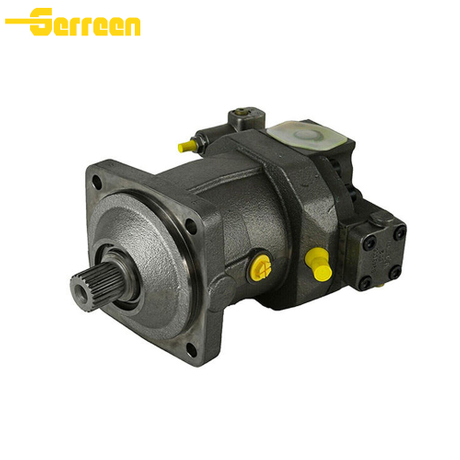

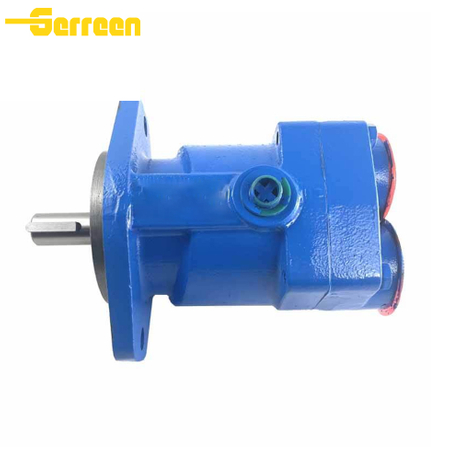

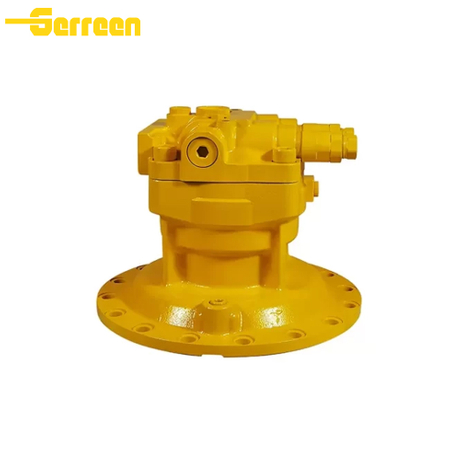

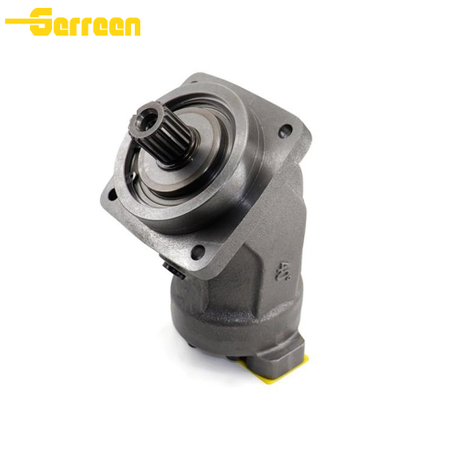

Q How does a hydraulic piston motor work?
A Hydraulic piston motor works by using pressurized oil to push pistons arranged axially or radially. The piston movement turns a crankshaft or cam ring, producing high torque and efficiency. Piston motors are ideal for high-pressure, heavy-duty applications.
-

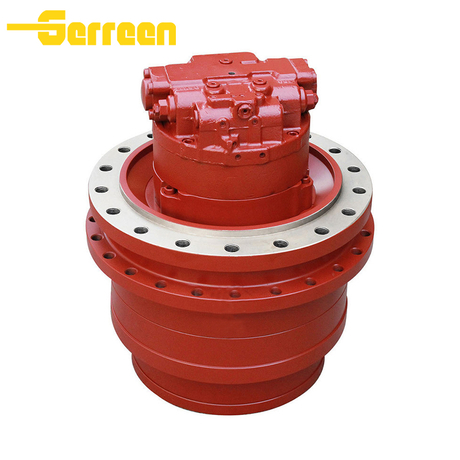

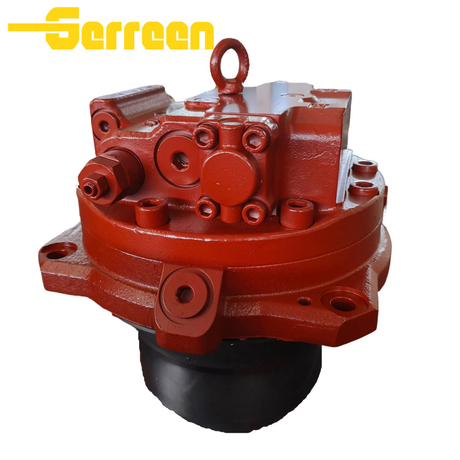

Q How does a hydraulic drive motor work?
A Hydraulic drive motor uses pressurized hydraulic oil to generate torque and rotational motion to drive wheels, tracks, winches, or conveyors. It receives flow from a hydraulic pump and delivers controlled speed and torque based on system pressure and flow rate.
-
Q Can a hydraulic pump be used as a motor?
A Yes, some hydraulic pumps can be used as motors if their design allows bidirectional operation. Gear pumps and piston pumps are the most commonly used pumps in reverse operation. However, efficiency, sealing, lubrication, and bearing design must be suitable, otherwise performance and service life may be reduced.
-
Q Why choose Green Hydraulic as your hydraulic motor supplier?
A Green Hydraulic offers high-quality hydraulic motors, competitive pricing, strict quality control, fast delivery, and professional technical support for global customers.
-
Q Can hydraulic motors replace electric motors?
A In many heavy-duty, mobile, or explosion-proof environments, hydraulic motors are better than electric motors because they offer higher torque, better overload protection, and stronger environmental resistance.
-
Q Can hydraulic motors run in both directions?
A Yes. Most hydraulic motors are reversible and can rotate in both clockwise and counterclockwise directions by changing oil flow direction.
-
Q What mounting types are available for hydraulic motors?
A Common mounting types include flange mounting, foot mounting, wheel mounting, and shaft mounting, depending on motor design and application.
-
Q What is cavitation in a hydraulic motor?
A Cavitation happens when inlet pressure is too low, causing air bubbles to form and collapse inside the motor, which can damage internal parts and reduce low, causing air bubbles to form and collapse inside the motor, which can damage internal parts and reduce performance.
-
Q How do I maintain a hydraulic motor?
A Regularly change hydraulic oil and filters, keep the system clean, check seals and connections, and monitor temperature and pressure during operation.
-
Q What are common causes of hydraulic motor failure?
A Common causes include oil contamination, overpressure, overheating, cavitation, poor lubrication, and incorrect installation.
-
Q Can hydraulic motors run continuously?
A Yes. Hydraulic motors are designed for continuous operation under proper pressure, temperature, and lubrication conditions.
-
Q What hydraulic oil can be used in hydraulic motors?
A Most hydraulic motors are compatible with mineral hydraulic oil, anti-wear hydraulic oil, and some biodegradable or fire-resistant fluids, depending on seal material and design.
-
Q What is the efficiency of a hydraulic motor?
A Modern hydraulic motors have high volumetric and mechanical efficiency, often exceeding 85%–95%, depending on the design and operating conditions.
-
Q How do I choose the right hydraulic motor?
A You should consider required torque, speed, pressure, flow rate, mounting type, shaft type, and application conditions. Professional technical support can help you select the correct model.
-
Q What pressure can hydraulic motors handle?
A Hydraulic motors can typically operate at pressures from 140 bar up to 420 bar, depending on the motor type and design.
-
Q What is the difference between low-speed high-torque (LSHT) motors and high-speed motors?
A LSHT motors provide high torque at low speed without a gearbox, while high-speed motors operate at higher RPM and usually require a gearbox to increase torque.
-

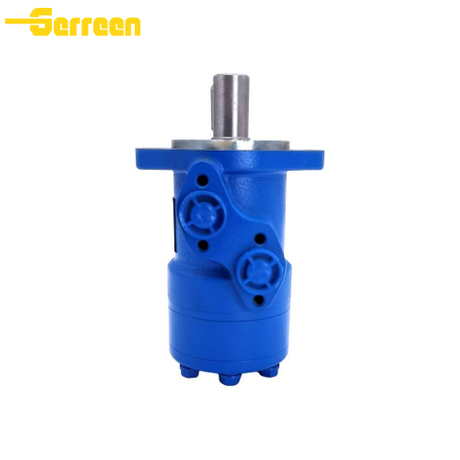

Q What is high torque hydraulic motor?
A High torque hydraulic motor is designed to produce very high output torque at low speed, commonly used in winches, track drives, mixers, and heavy-duty rotating equipment.
-
Q What are the advantages of hydraulic motors?
A Hydraulic motors offer high torque at low speed, compact size, smooth operation, overload protection, and excellent reliability in harsh working environments.
-
Q What are hydraulic motors used for?
A Hydraulic motors are used in excavators,winches,conveyors,mixers,crushers,drilling machines,injection molding machines, and many other industrial and mobile machines.
-
Q What is the difference between a hydraulic motor and a hydraulic pump?
A Hydraulic pump converts mechanical energy into hydraulic energy,while a hydraulic motor converts hydraulic energy back into mechanical energy.
-

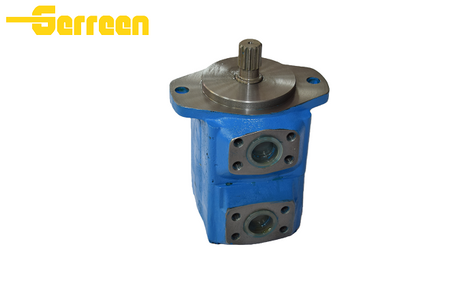

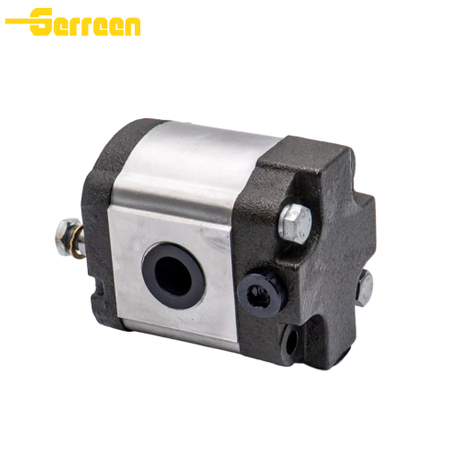

Q What are the main types of hydraulic motors?
A The main types of hydraulic motors are gear motors,vane motors and piston motors.Piston motors are used for high-pressure and high-torque applications, while gear and vane motors are used for simpler systems.
-
Q How does a hydraulic motor work?
A Hydraulic motor works by using pressurized hydraulic oil to push internal components such as gears,vanes or pistons,causing the output shaft to rotate and produce torque.
-
Q What is a hydraulic motor?
A Hydraulic motor is a mechanical actuator that converts hydraulic energy (pressure and flow) into rotary mechanical motion.It is widely used in construction machinery,industrial equipment,agricultural machines, and marine applications.
