Q Should I rebuild or replace my hydraulic cylinder?
A Rebuild if:
Tube and rod are in good condition
Only seals are worn
Replace if:
Tube is deeply scratched
Rod is bent
Cylinder is severely damaged
-
Q How often should hydraulic cylinders be serviced?
A It depends on usage, but generally:
Inspect regularly
Replace seals every 1–3 years in heavy-duty applications
Change oil and filters on schedule
-
Q What causes hydraulic cylinder seal failure?
A Common causes:
Dirty oil
Over pressure
High temperature
Poor quality seals
Rod damage or misalignment
-
Q How long does it take to rebuild a hydraulic cylinder?
A A normal cylinder rebuild usually takes:
1–3 hours for simple cylinders
More time for large or telescopic cylinders
-
Q Can a hydraulic cylinder be repaired instead of replaced?
A Yes. Most hydraulic cylinders can be:
Re-sealed
Repaired
Rebuilt
This is much cheaper than buying a new cylinder.
-
Q Why does a hydraulic cylinder leak oil?
A Main causes:
Worn seals
Damaged rod surface
Contaminated oil
High pressure or misalignment
Seal replacement usually fixes the issue.
-
Q Why does a hydraulic cylinder move slowly?
A Common reasons:
Air in the system
Low oil level
Worn seals
Low pump pressure
Blocked filter
Bleeding the system and checking pressure usually solves the problem.
-
Q How does a double acting hydraulic cylinder work?
A A double acting hydraulic cylinder:
Uses hydraulic pressure to extend and retract
Has two ports (one for extend, one for retract)
Can push and pull with force in both directions
It is the most commonly used type of hydraulic cylinder.
-
Q How to fix a leaking hydraulic cylinder?
A To fix a leaking hydraulic cylinder:
If leaking outside → replace rod seals
If leaking inside → replace piston seals
Check rod surface for scratches
Rebuild the cylinder using a seal kit
Do not continue using a leaking cylinder, as it can cause system damage.
-
Q How to check if a hydraulic cylinder is leaking internally?
A Signs of internal leakage:
Cylinder drifts under load
Cannot hold position
Weak or slow movement
No external oil leak
Test by extending the cylinder and shutting off the valve. If it moves back, internal seals are leaking.
-
Q Where is the hydraulic clutch master cylinder located?
A The hydraulic clutch master cylinder is usually located:
In the engine bay,
Mounted on the firewall,
Directly connected to the clutch pedal.
It supplies hydraulic pressure to the clutch slave cylinder.
-
Q How to rebuild a hydraulic cylinder (diagram explanation)?
A A typical rebuild diagram shows:
Cylinder tube
Piston
Piston rod
Gland
Seals and wear rings
The rebuild process follows this order:
Disassemble → Inspect → Replace seals → Reassemble → Test
If needed, I can draw a diagram for you.
-
Q How to pack a hydraulic cylinder?
A Packing a hydraulic cylinder means installing new seals and packing kits:
Remove old packing and seals
Clean all parts
Install new seals in correct order
Lubricate before assembly
Reassemble and test
Proper packing prevents leakage and restores pressure.
-
Q How to fix a hydraulic cylinder?
A To fix a hydraulic cylinder:
1. Identify the problem (leak, weak force, drifting, slow movement)
2. Replace worn seals
3. Repair or replace damaged rod or tube
4. Check for internal scoring or bending
5. Reassemble and test
Most cylinder problems are caused by seal wear or contamination.
-
Q How to replace hydraulic cylinder seals?
A To replace seals:
Disassemble the cylinder
Remove old seals carefully without damaging metal surfaces
Clean all grooves and parts
Install new seals in the correct direction
Lubricate seals with hydraulic oil
Reassemble and test
Use the correct seal kit for your cylinder model.
-
Q How to disassemble a hydraulic cylinder?
A Steps to disassemble:
1. Release all hydraulic pressure
2. Remove the cylinder from the machine
3. Remove the gland or end cap
4. Pull out the rod and piston assembly
5. Remove piston and seals carefully
6. Keep parts clean and in order
Always follow safety procedures because cylinders may contain residual pressure.
-
Q How to rebuild a hydraulic cylinder?
A To rebuild a hydraulic cylinder:
1. Remove the cylinder from the machine
2. Disassemble the cylinder
3. Remove old seals and wear parts
4. Clean and inspect all components
5. Replace seals and damaged parts
6. Reassemble the cylinder
Test for leaks and smooth operation
Rebuilding restores performance and extends service life.
-
Q What causes the hydraulic cylinder of a dump truck to retract?
A Cylinder retraction mostly occurs in the following situations: First, the retraction phenomenon mostly happens when the truck is loaded with heavy cargo, and does not occur frequently. This phenomenon does not occur when the truck is empty and the cylinder is lifted. Second, when retraction occurs, the truck is usually transporting sticky cargo such as clay and mud. When the cylinder is lifted to the third or fourth stage, the cargo remains at the front of the truck bed, causing the cylinder to retract on its own. Third, when retraction occurs, adjusting the manual directional control valve to the neutral position can stop the cylinder from further retraction, indicating that cylinder retraction is only occasional and not frequent.
-
Q What are the reasons why a dump truck's hydraulic cylinder lifts weakly or fails to lift?
A Reasons:Typically, this is due to insufficient pressure from the gear pump, a faulty power take-off (PTO), or leaks in the hydraulic system.
Solution: Check if the gear pump's working pressure meets the manufacturer's specifications, check for leaks at the cylinder and pipe connections, and check if the power take-off is properly engaged.
-
Q What causes the hydraulic cylinder of a dump truck to shake during lifting?
A Shaking during the lifting of a dump truck's hydraulic cylinder is usually caused by insufficient hydraulic fluid, blockage by impurities, or inadequate oil supply; oil leaks and unusual noises may stem from aging seals or insufficient pressure from the gear pump. Regular checks of the hydraulic fluid level and quality, tightening of the cylinder supports, and inspection of the seals in all parts are necessary to ensure normal system pressure.
-
Q Dump truck uses a hydraulic cylinder for what?
A Dump truck uses a hydraulic cylinder to lift and lower the dump bed.

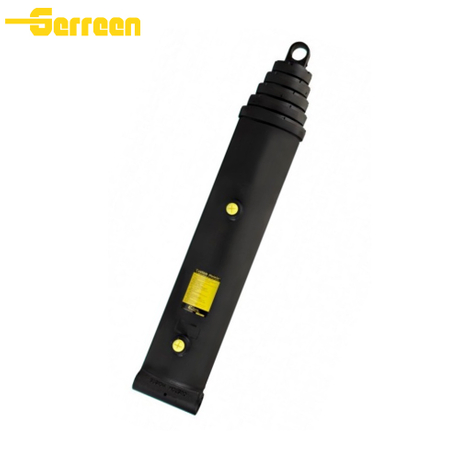

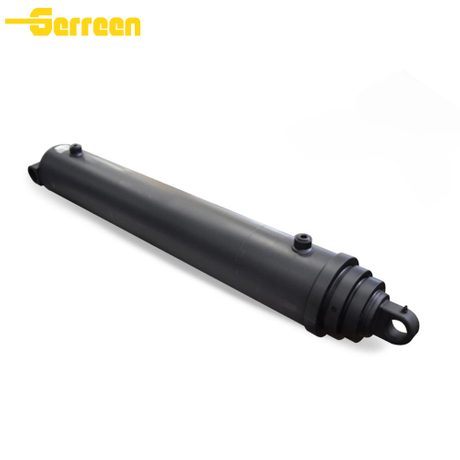

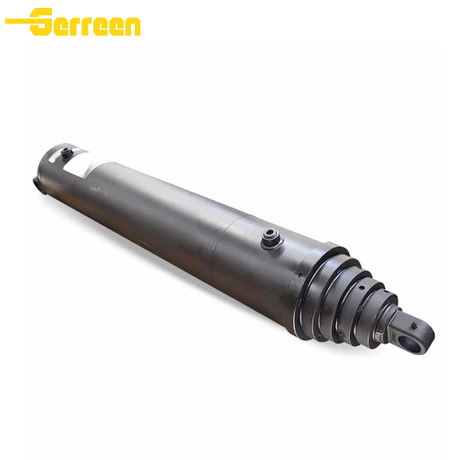

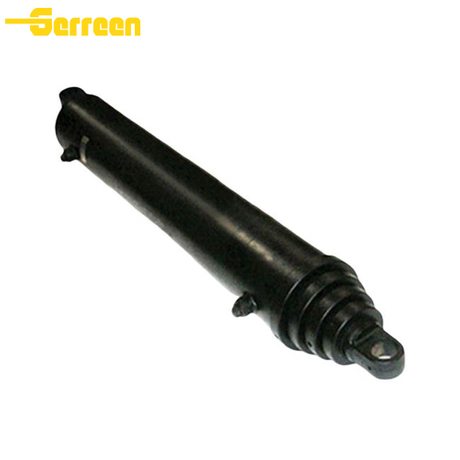

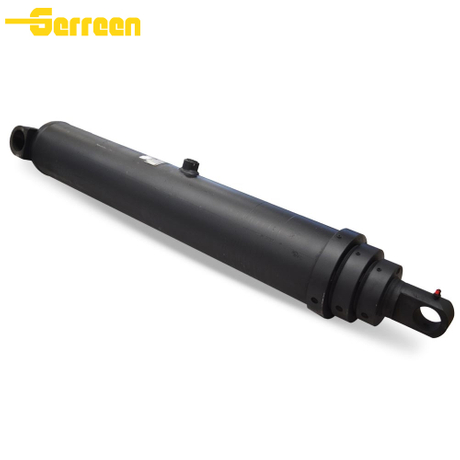

Usually, a telescopic hydraulic cylinder is used because it provides a long stroke in a compact space and can lift very heavy loads.
-
Q How to bleed a hydraulic cylinder?
A To bleed a hydraulic cylinder:
1.Install the cylinder in the system
2.Fill the hydraulic system with oil
3.Run the cylinder slowly in and out several times
4.Keep the oil tank full
5.Open bleed screws if available
6.Continue until movement is smooth and no air bubbles appear
Bleeding removes air from the system and prevents jerky or weak movement.
-
Q How do you measure a hydraulic cylinder?
A To measure a hydraulic cylinder, you need to measure:
Bore diameter (inside diameter of the tube)
Rod diameter
Stroke length (distance from fully retracted to fully extended)
Closed length and extended length
Mounting type and pin sizes
-
Q Why choose Green Hydraulic as your hydraulic cylinder supplier?
A Green Hydraulic offers high-quality hydraulic cylinders, custom manufacturing, strict quality control, fast delivery, and professional technical support for global customers.
-
Q How do I choose the right hydraulic cylinder?
A You should consider required force,stroke length,working pressure,mounting type,speed,operating environment and application conditions.
-
Q What are hydraulic cylinders used for?
A Hydraulic cylinders are used in excavators, dump trucks,forklifts,presses, cranes, agricultural machinery and industrial automation systems.
-
Q What are the main types of hydraulic cylinders?
A The main types include single-acting cylinders,double-acting cylinders,telescopic cylinders, and tie-rod or welded cylinders.
-
Q How does a hydraulic cylinder work?
A Hydraulic cylinder works by using pressurized hydraulic oil to push a piston inside the cylinder barrel, creating linear movement and force.
-
Q What is a hydraulic cylinder?
A Hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear force and motion.It is widely used in construction machinery, industrial equipment,agricultural machines and lifting systems.
