3773115064D Hydraulic Cylinder

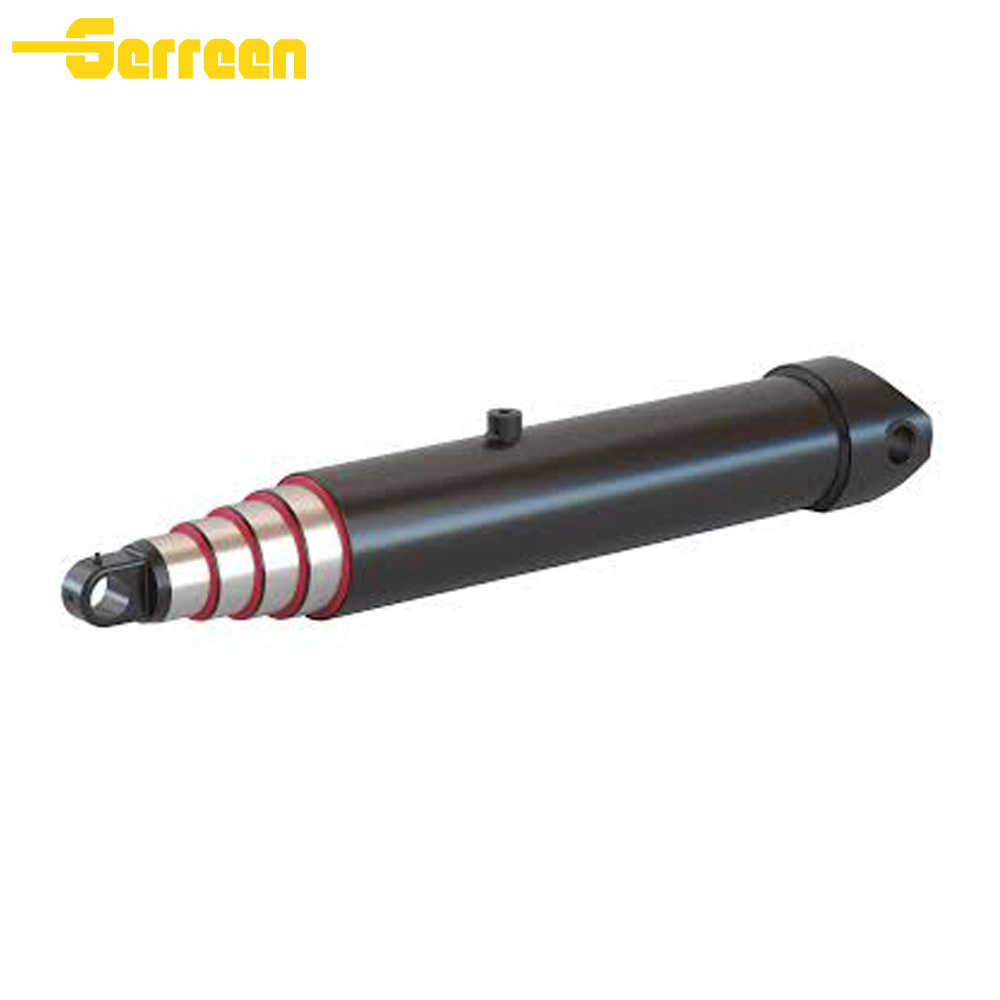

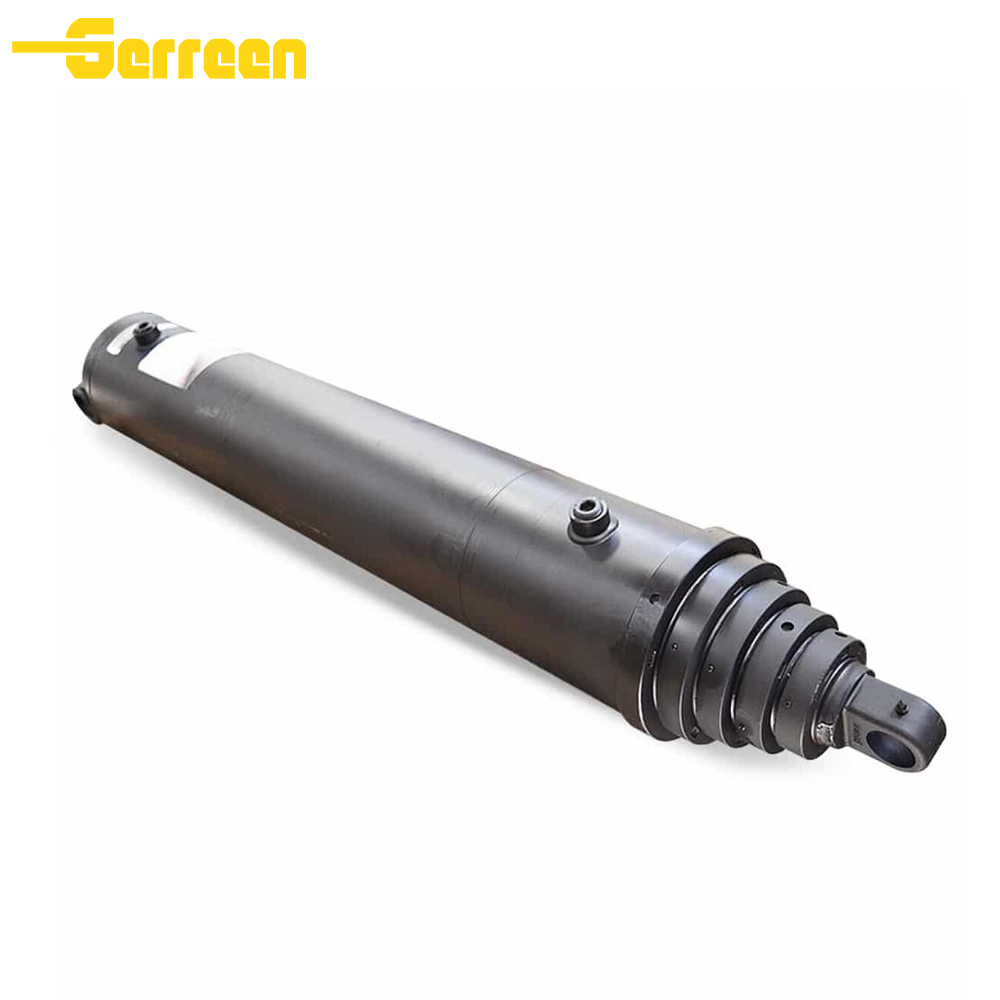

The 3773115064D hydraulic cylinder (also referred to as the S63DC-102-140) is a single-acting, three-stage telescopic cylinder designed for use as a dump hoist or tipping mechanism in specific commercial dump trucks and trailers.

Key Features

• Telescopic Design: It features a three-stage nesting configuration. This design allows it to achieve an exceptionally long 140-inch stroke (over 11 feet) from a relatively compact retracted length of 61.5 inches.

• Single-Acting Operation: The cylinder is single-acting, meaning hydraulic pressure is used to power only the extension stroke (lifting the dump body). The return stroke is accomplished using gravity once the fluid is released from the system.

• High Strength Construction: The stages are constructed from high-tensile steel tubing and built to withstand the demanding pressures and loads associated with heavy-duty material handling.

• High Pressure Rating: Designed to operate efficiently at pressures up to 3000 PSI (206.8 bar), providing substantial lifting force for heavy loads of aggregate materials.

• Specific Compatibility: It is manufactured to match the original equipment specifications (OEM) for certain Heil dump truck applications, ensuring a precise fit and reliable performance as a replacement unit.

• Standard Mounting Configuration: It features a cross-tube mount at the base end and a drilled-through lug mount at the rod end, facilitating easy installation and secure attachment to the vehicle's chassis and dump body.

• Application-Specific Optimization: The cylinder is optimized specifically for vertical hoisting mechanisms on dump trucks and trailers, designed for durability and efficiency in frequent tipping cycles.

Application

• Dump Trucks: Raising the truck body to discharge bulk materials using gravity.

• Dump Trailers: Integrated into semi-automated tipping (SAT) dump trailers to achieve the high angles necessary for complete material offloading.

Packaging & Delivery

Hydraulic Cylinder are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Certifications & Quality Assurance

All Hydraulic Cylinders are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every Hydraulic Cylinder is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.Are you a manufacture for the Hydraulic Cylinder or a wholesale ?

We are a manufacture for Hydraulic Cylinder。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
