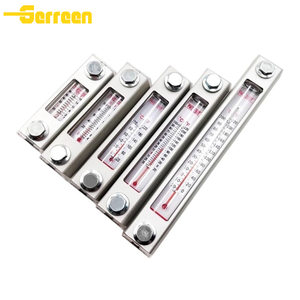

GYW-100~381 Series Liquid Level Control Type Liquid Level And Temperature Gauge
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Product Description
The GYW-100~381 series liquid level control type liquid level and temperature gauge is an advanced hydraulic tank accessory that not only provides a visual indication of fluid level and temperature but also incorporates electrical switching contacts for remote monitoring and control of both parameters. This allows for automated warning signals or system shutdowns based on preset high or low limits.
Key Features of RFA series miniature direct return oil filters
Integrated Control Function: A primary feature is the ability to provide electrical switching signals (via integrated float switches and temperature switches) for automated control or remote alarming. This allows systems to react automatically to abnormal levels or temperatures.
Dual Monitoring: Offers simultaneous, clear visual monitoring of both the fluid level and temperature, ensuring comprehensive oversight of system conditions.
Magnetic Float Switch Principle: The level control function typically uses a magnetic float that moves with the liquid level. This float magnetically actuates reed switches at user-defined points along the gauge's height to open or close an electrical circuit.

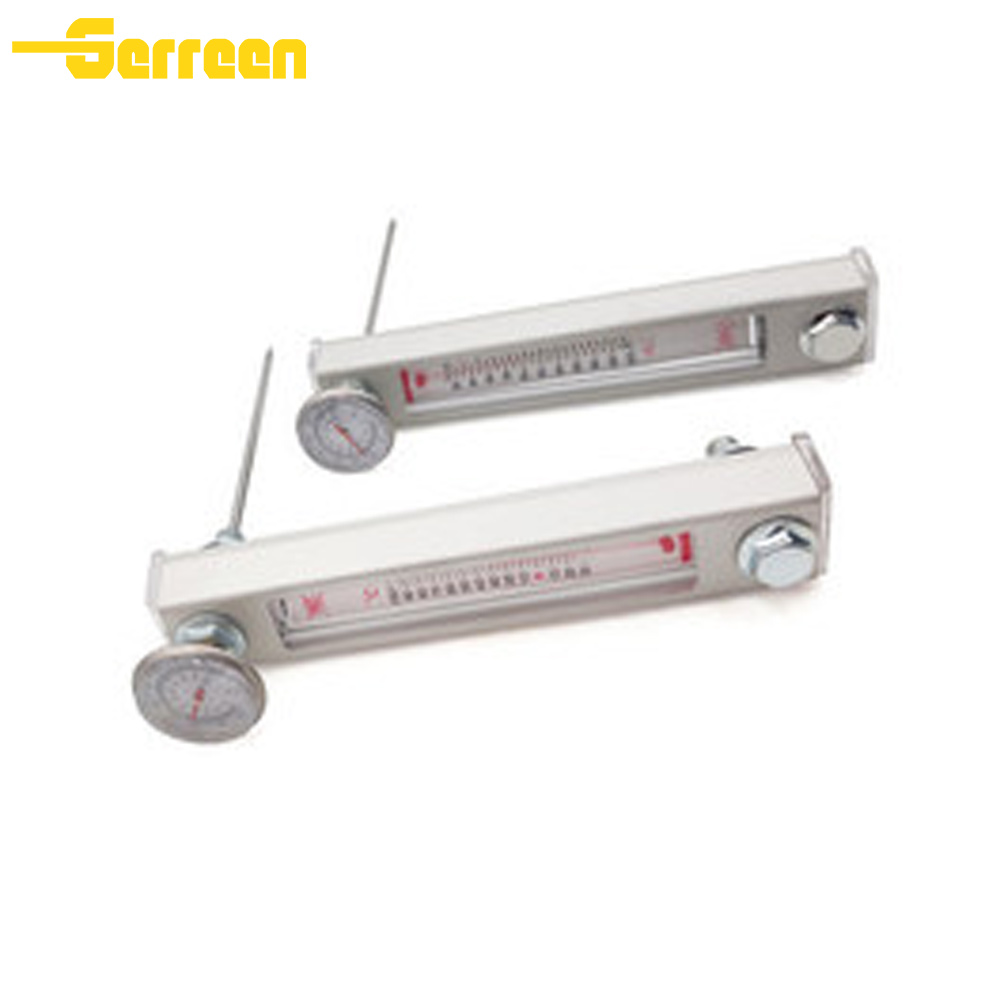

Temperature Sensing: Includes a temperature sensor or switch (e.g., bimetallic strip or thermistor) that activates an electrical contact when a specific nominal temperature (e.g., 60°C, 70°C, or 80°C) is reached, useful for high-temperature warnings.
Durable Construction: Designed for industrial environments, often featuring robust materials like die-cast aluminum or plastic bodies and shatterproof transparent polyamide viewing lenses to withstand vibration and resist leakage.
Versatile Mounting: Designed for direct, two-hole mounting on the exterior of the oil tank, available in various standard center distances (from 100mm to 381mm or more) to fit different tank sizes.
Application
Hydraulic Systems and Power Units: Used in oil tanks to trigger alarms or automatic shutdown when the fluid level or temperature exceeds preset limits, preventing pump cavitation or oil overheating.
Machine Tools and Automation Equipment: Integrated into fluid systems to achieve automated process control and safety monitoring.
Lubrication Systems and Gearboxes: Monitors the lubricant level and temperature of large machinery to ensure optimal operating conditions.
Systems Engineering: Used in automated control systems that require real-time feedback of fluid level and temperature signals.
Level gauge are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All Level gauge are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
