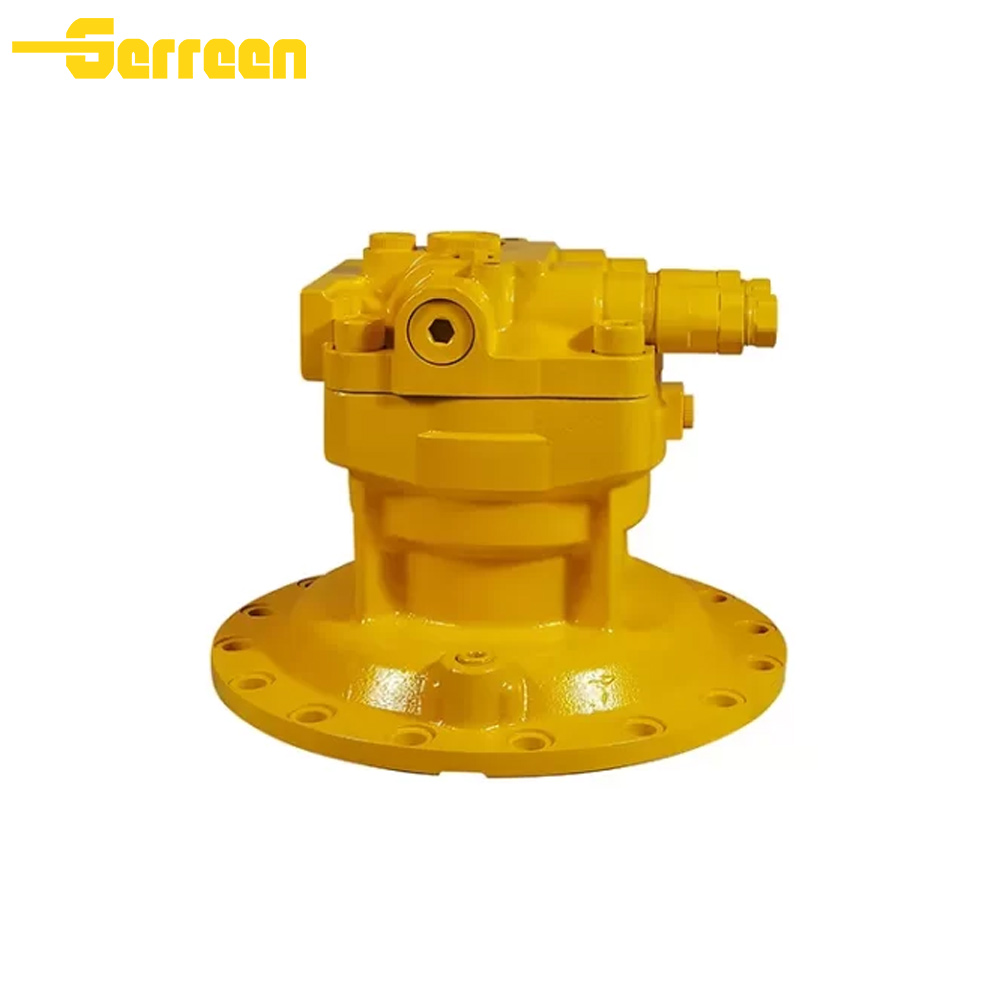

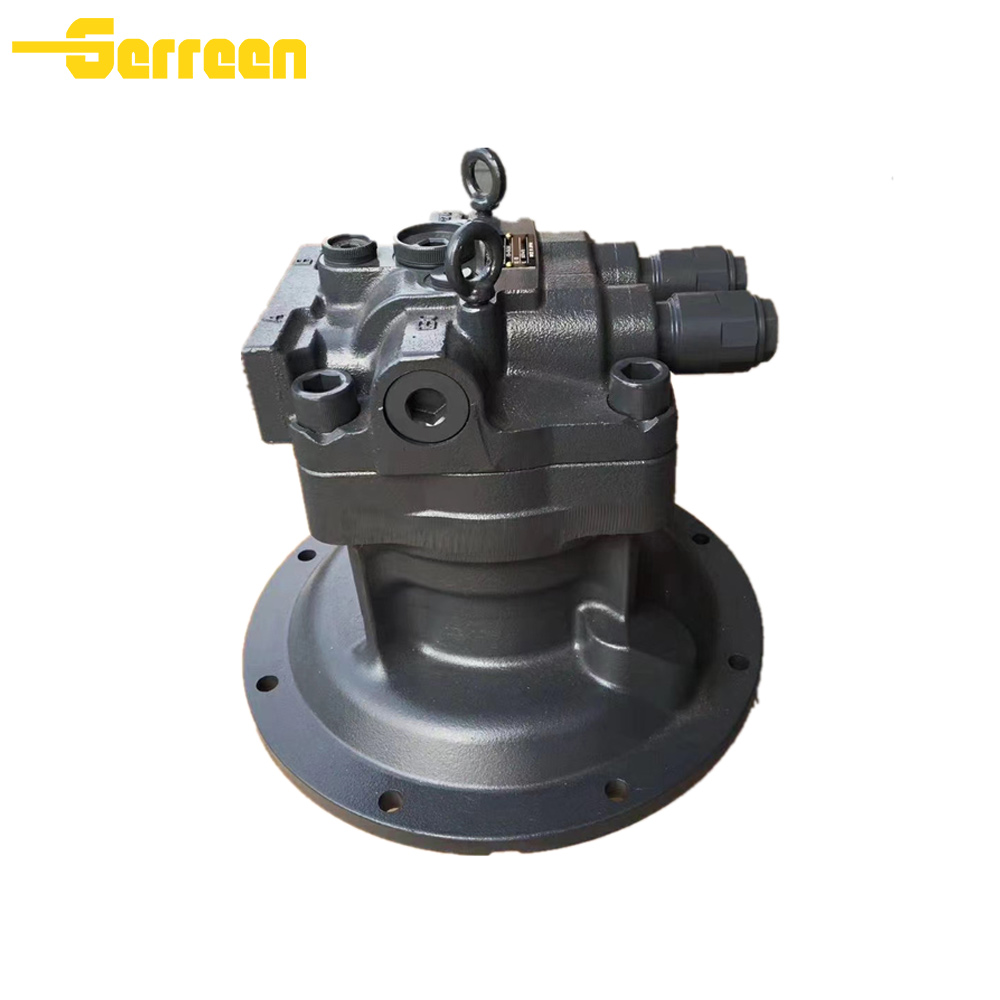

M5X Piston Motor
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Product Description
Integrated Valving for Swing Function: The motor incorporates built-in main relief valves and make-up valves (anti-reaction valves) within the motor's valve block. This design provides smooth control over acceleration and deceleration, minimizes shock during operation, and simplifies the external hydraulic piping.
Built-in Parking Brake: Features an integral spring-applied, pressure-released mechanical wet multi-disc brake. This essential safety feature restricts rotation and securely locks the superstructure in place when hydraulic power is removed.
Compact Construction: The M5X series achieves a highly compact design by neatly arranging the piston group, mechanical brake, and integrated valves within the housing, making it ideal for the limited space available in mobile machinery.
Direct Gearbox Connection: The mounting flange is enlarged to allow for direct connection to the ring gear of a reduction gearbox, streamlining the overall drive assembly and contributing to cost reduction in system design.
High Performance and Reliability: Building on Kawasaki's extensive experience with previous series, the M5X is designed for high reliability and a long service life, even under the high pressures and cyclic loads typical of excavator operations.
High Operating Pressure: The motor is built for high-pressure systems, with a rated pressure of around 32.4 MPa (approx. 330 bar) and maximum peak pressures up to 39.2 MPa (approx. 400 bar), depending on the specific model
Function: It controls the horizontal rotation of the excavator's superstructure (the cab, arm, and counterweight assembly) on its undercarriage via a large ring gear.
Suitability: The M5X's integrated brake ensures the excavator stays fixed when not rotating, and the anti-reaction valves provide smooth acceleration and deceleration, preventing jerky movements of the arm and bucket.
Crawler Cranes: Used for the slewing mechanism of crawler cranes and rough terrain cranes.
Pile Drivers/Drilling Rigs: Provides the rotational power for drilling heads in construction and geotechnical applications.
Marine & Offshore Equipment: Sometimes adapted for specific winch or crane applications on ships or offshore platforms where a compact design with an integrated brake is necessary.
Piston motors are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All piston motorsare manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The motor's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
We are a manufacture for piston motor。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
