PTO 442
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Product Description

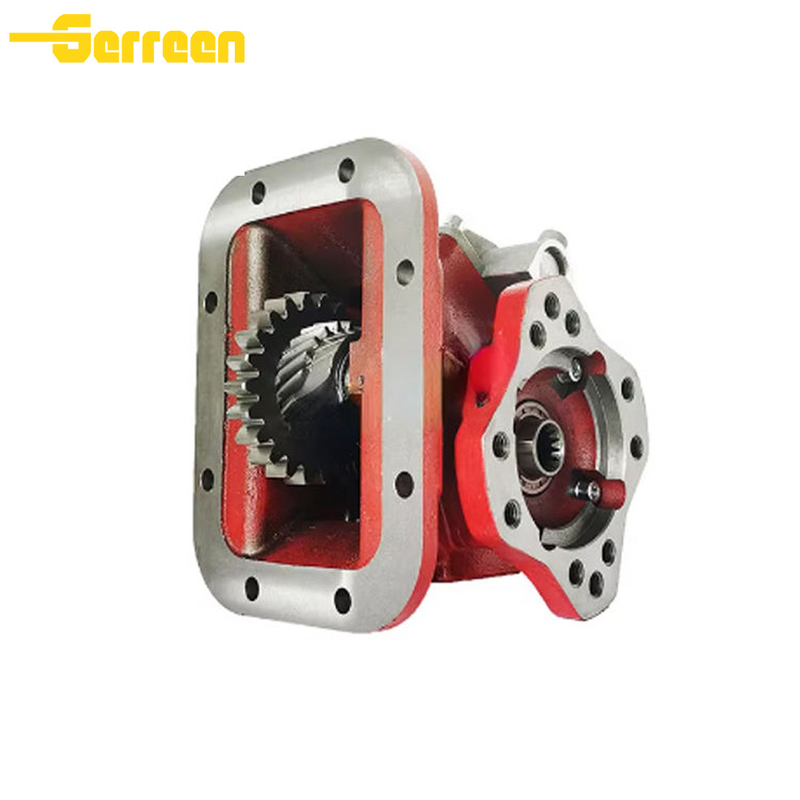

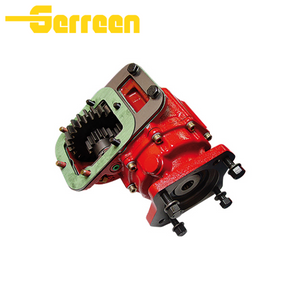

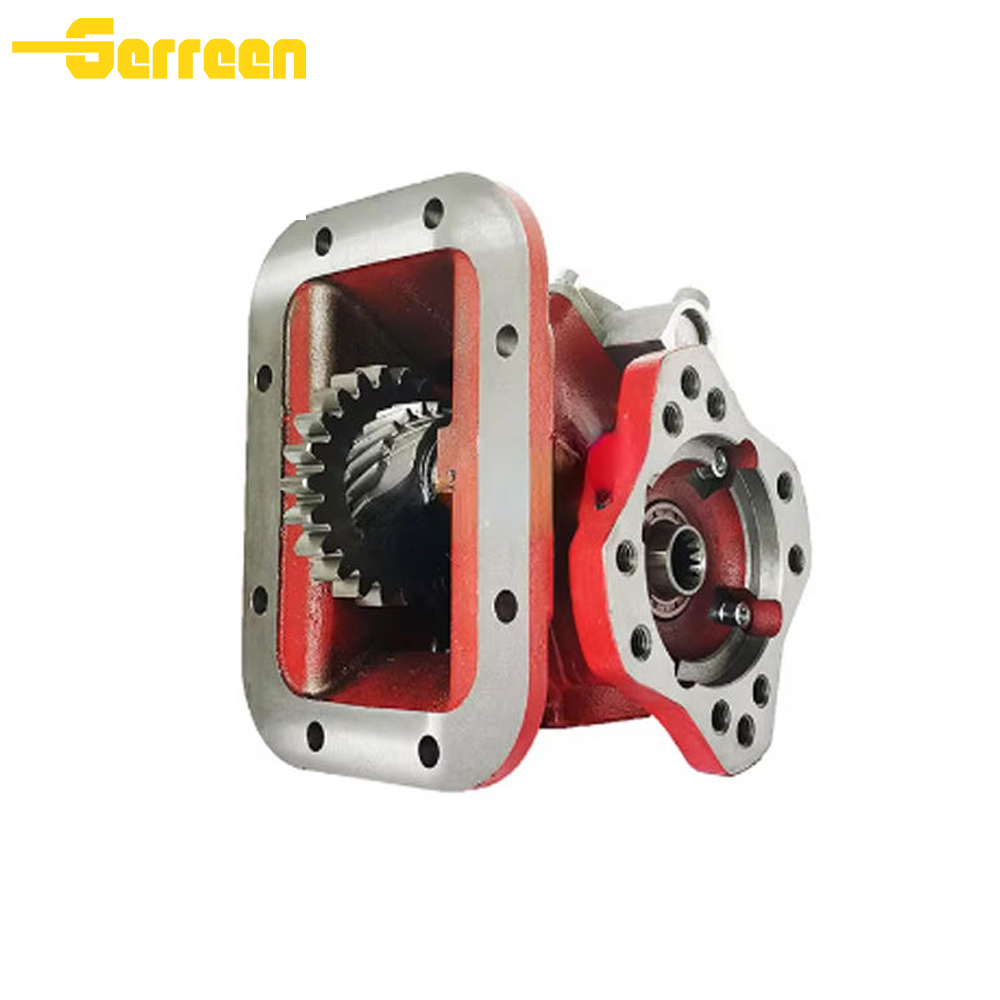

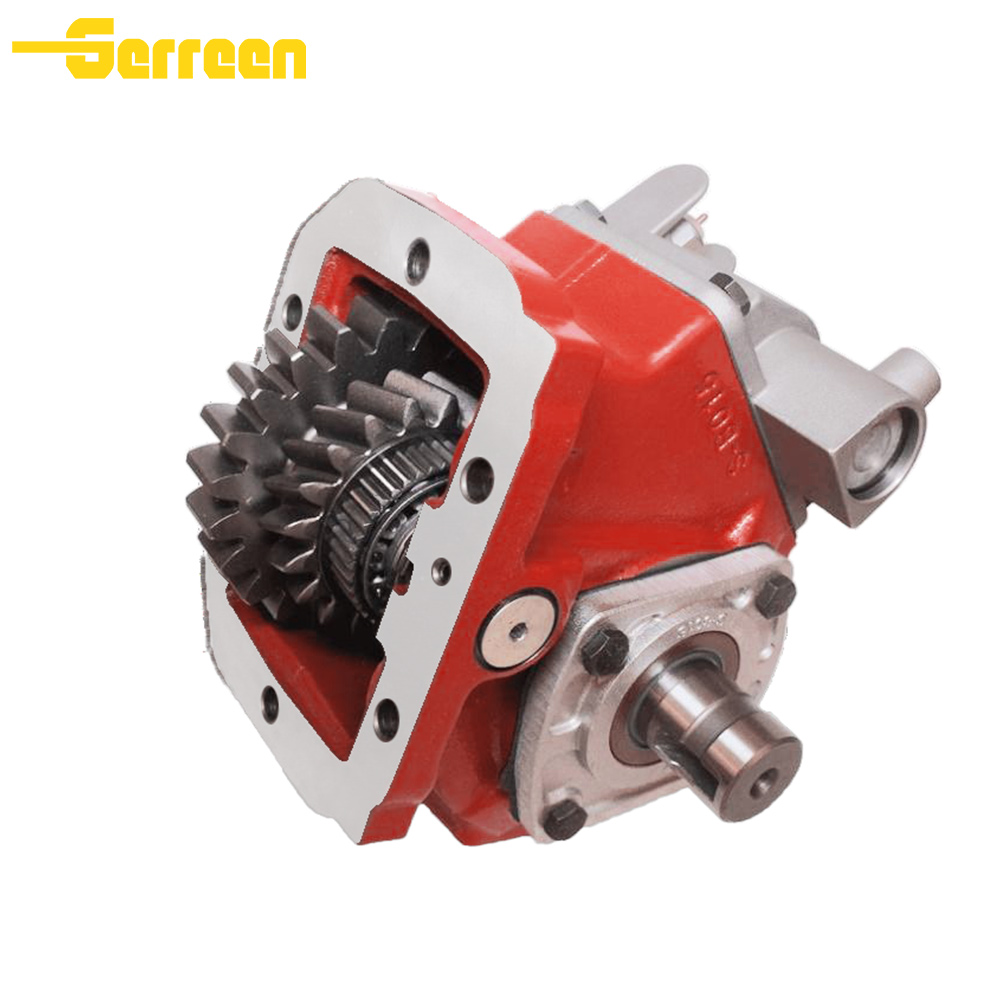

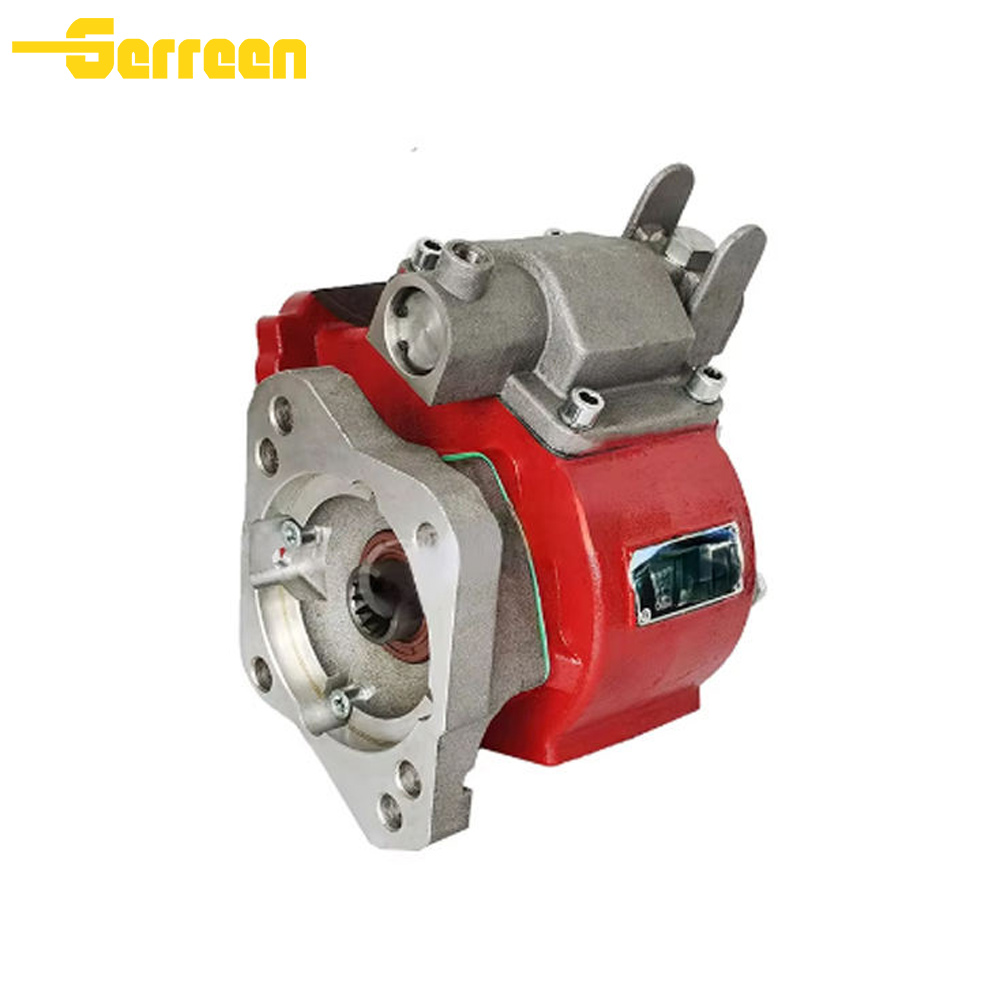

The 442 Series PTO is designed to connect a truck's manual transmission to auxiliary equipment like hydraulic pumps for applications such as dump trucks, snow removal vehicles, and fire & rescue equipment.
6-Bolt Mounting: Designed specifically to fit standard 6-bolt transmission openings, making it compatible with a wide range of existing mechanical transmissions.
Durable Construction: Features a robust cast iron housing and tapered roller/cone bearings (instead of needle bearings) on the output shaft, which provides a high torque rating and a long service life.
High Torque Capacity: Offers an intermittent torque rating up to 250 lb-ft (339 Nm), providing ample power for various auxiliary equipment.
Installation Flexibility:
Low-profile shift cover design provides maximum clearance under the truck.
360° rotatable output flange is available, allowing for flexible mounting to different pump orientations.
Slip-fit idler pin allows for easy interchange from one transmission to another, simplifying serviceability.
Easy backlash adjustment feature further simplifies installation and maintenance.
Versatile Options: Available with a wide range of choices to fit specific needs, including multiple speed ratios (eleven), numerous output options (over 30), and various shift types (air, cable, electric-over-air, etc.).
Greaseable Shafts: Features greaseable output shafts for extended life and improved performance.
Self-Lube Option: A self-lube option is available for transmissions that may have difficulty supplying lubrication to the PTO.
Aerial Equipment: Powering hydraulic pumps for bucket trucks and other lifting equipment.
Dump Truck & Trailer: Engaging systems for lifting and lowering dump bodies and trailers.
Snow & Ice Removal: Providing power for plows, salt/sand spreaders, and other winter maintenance machinery.
Fire & Rescue: Operating essential pumps and hydraulic tools on emergency vehicles.
Service Trucks: Used in various service applications that require auxiliary hydraulic power.
Refuse/Waste Management: Powering compactors and other systems in refuse collection vehicles.
PTO are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All PTO are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every PTO is rigorously tested for performance, pressure, and leak integrity before shipping.
We are a manufacture for PTO。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
