V23 Piston Pump
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Right hand or Left hand
1. Machine tools and metalworking machinery 2. Forging and pressing machinery 3. Plastic molding machines (injection molding machines) 4. Metal cutting and forming equipment 5. Industrial automation and material handling 6. Construction machinery 7. Agricultural machinery 8. Marine systems
straight key shaft and spline shaft
Product Description

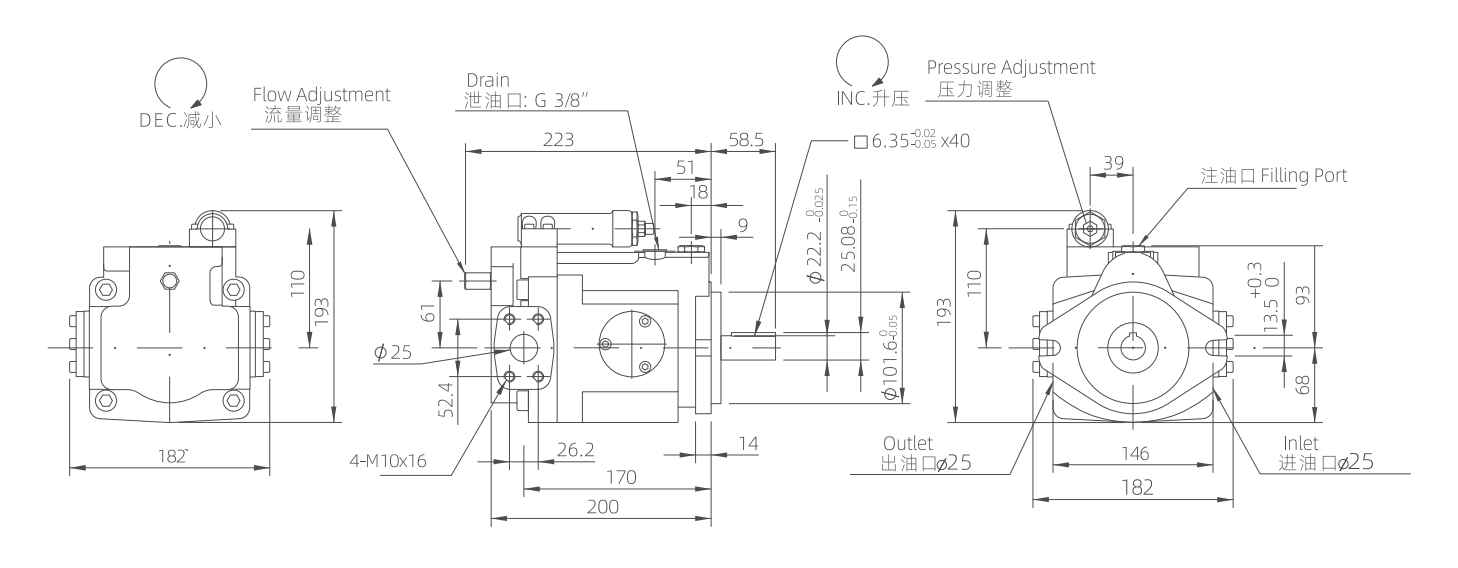

he V23 size in the series has a displacement of up to 23cm³/rev and pressure adjustment options that range from 8 bar up to 250 bar. There are five different sizes also available from the V series: the smaller V8 (8cm³/rev) and V15 (15cm³/rev) as well as the larger displacement options, the V38 (38cm³/rev), V50 (50cm³/rev) and V70 (70cm³/rev).
High pressure capability:Plunger pumps are capable of generating very high working pressures, typically reaching several tens of megapascals (MPa) or more, making them suitable for high-pressure hydraulic systems.
High efficiency:Plunger pumps have high volumetric and mechanical efficiencies, with minimal internal leakage, effectively converting mechanical energy into hydraulic energy.
Convenient flow adjustment:Plunger pumps can easily adjust flow by changing the stroke of the plungers or using displacement adjusters, accommodating different operational requirements.
Robust and durable construction:Plunger pumps feature sturdy construction, typically utilizing high-strength materials for components, resulting in long service life and suitability for demanding operating conditions.
Strong adaptability:Plunger pumps can handle various media, including hydraulic oil, water, and other fluids, exhibiting strong adaptability and widespread use across various industrial sectors.
Machine tools and machine tools: Used to provide stable hydraulic power, ensuring processing accuracy and efficiency.
Forging and pressing machinery: Provides the necessary high-pressure hydraulic source for stamping and forging equipment.
Plastic molding machines (injection molding machines): Achieves precise flow and pressure control during the injection molding process, contributing to energy saving and cost reduction.
Metal cutting and forming equipment: Provides hydraulic power for metal shearing machines, bending machines, and pipe forming machines, etc.
Industrial automation and material handling: Provides precise hydraulic control in automated production lines and large industrial conveying systems.
Construction machinery: Applied to heavy equipment such as excavators, loaders, cranes, and road rollers.
Agricultural machinery: Provides hydraulic power for farm equipment (such as tractors and their attachments).
Marine systems: Ensures the stable operation of ship hydraulic systems.
Piston pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
