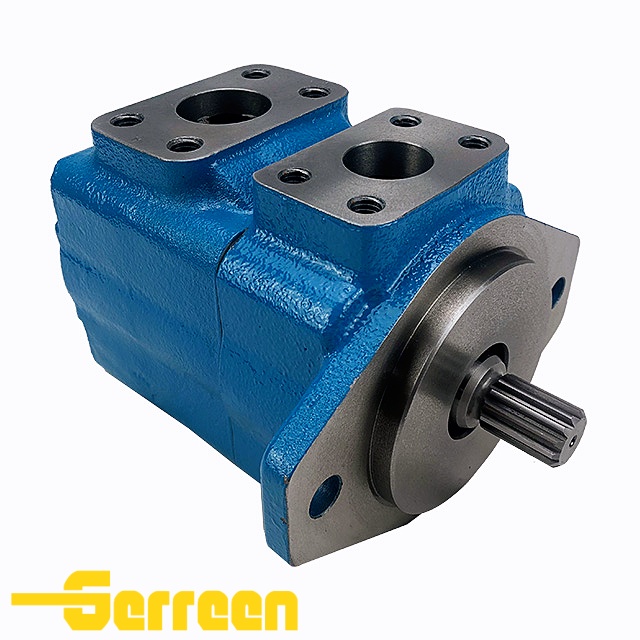

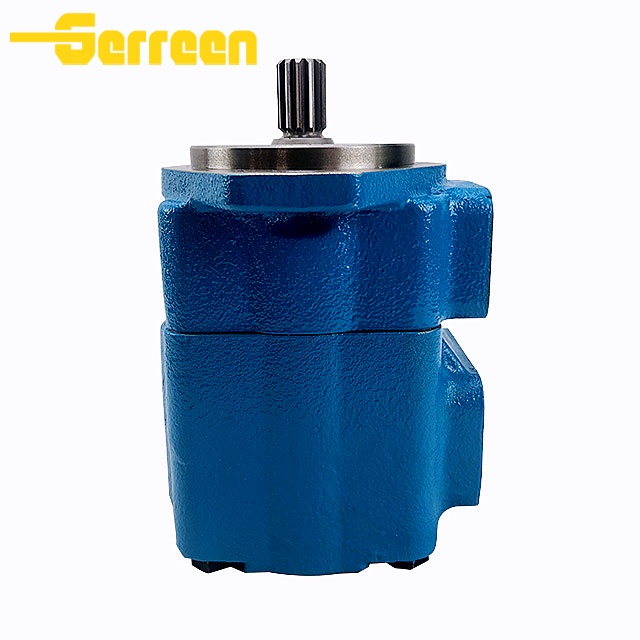

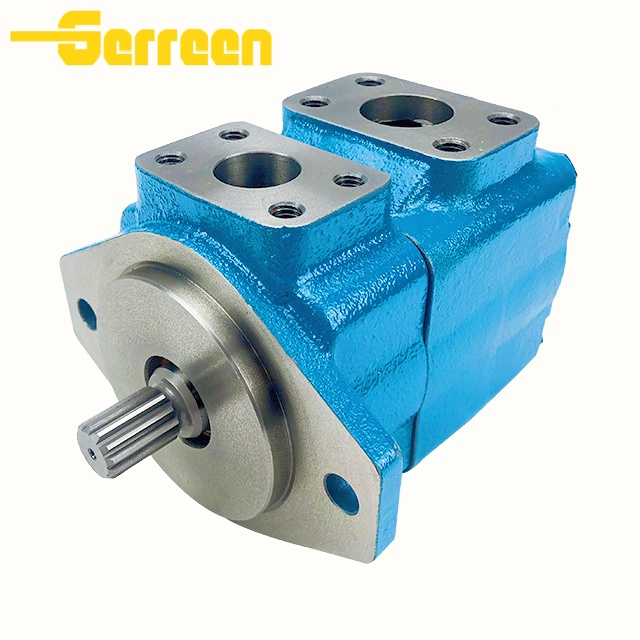

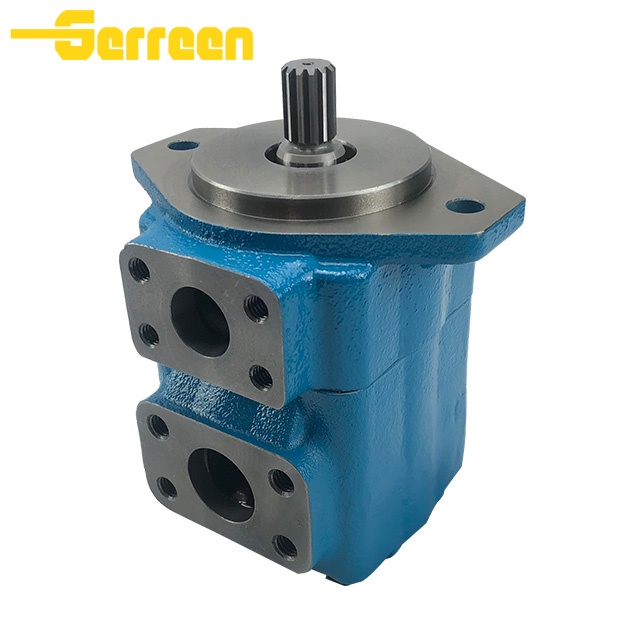

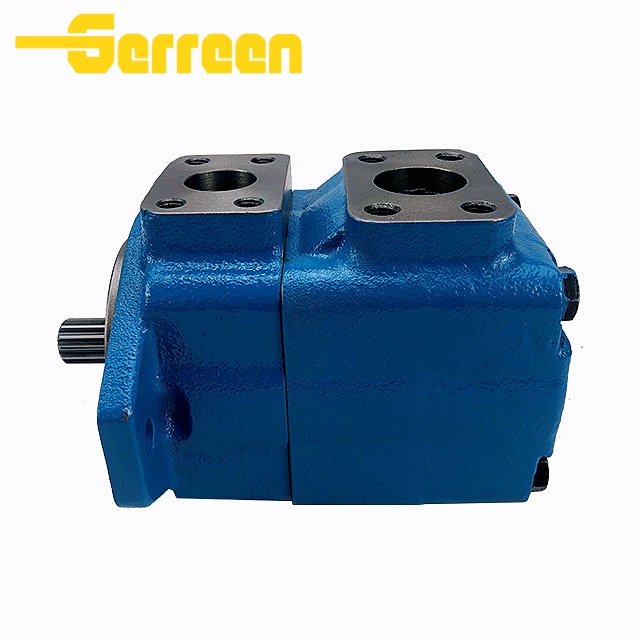

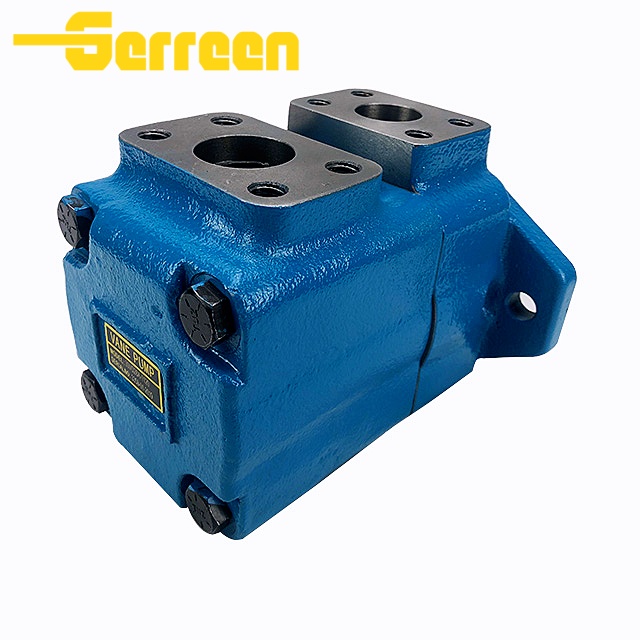

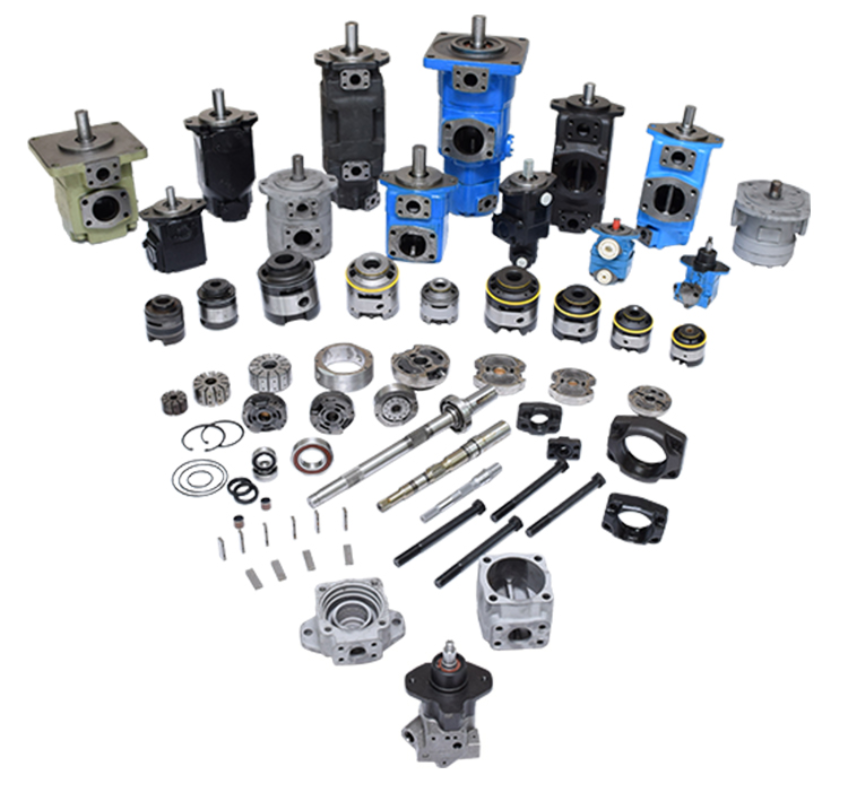

30VQ Series Vane Pumps
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Right hand or Left hand
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Teeth Shaft
Product Description
The 30VQ Series Vane Pumps from Green Hydraulic are precision-engineered for reliable hydraulic performance in industrial and mobile applications. These pumps deliver consistent flow and pressure, even under demanding operating conditions. Constructed with high-quality materials and tight tolerances, they offer excellent wear resistance, reduced noise, and long service life. Easy to install and compatible with a wide range of hydraulic systems, the 30VQ Series pumps provide a dependable solution for both maintenance and new equipment applications.
High-Precision Design – Manufactured with tight tolerances for accurate fit and reliable hydraulic performance.
Durable Construction – Made from premium materials for excellent wear resistance and long service life.
Stable Flow & Pressure – Ensures consistent hydraulic output under varying load conditions.
Low Noise & Smooth Operation – Optimized design reduces vibration and operational noise.
Easy Installation & Compatibility – Fits a wide range of hydraulic systems, suitable for both OEM and replacement applications.
Enhanced System Efficiency: Maintains optimal pump performance and hydraulic energy use.
Reduced Maintenance Costs: Long-lasting components minimize downtime and repair needs.
Reliable Operation: Stable output ensures smooth performance for industrial and mobile machinery.
Versatile Applications: Ideal for construction, agriculture, material handling, and other hydraulic systems.
Cost-Effective Solution: Durable and easy-to-install design provides excellent value for maintenance and system upgrades.
1. Industrial Hydraulic Systems
2. Mobile Equipment
3. Construction and Engineering Machinery
4. Metallurgy and Steel Industry
5. Marine and Offshore Equipment
Vane pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
| F3 | -30VQ | -28 | -A | -1 | -A | -22 | -R |
| Series | Flow code | Port connections | Shaft type | Outlet positions | Design number | Rotation(Viewed from cover end of pump) | |
| F3: Fluoro rubber seals Omit if not required | 30VQ | 24 28 | A-SAE 4-bolt flange | Str key-1 HD str key-86 Spline-11 | Viewed from cover end of the pump A-Opposite inlet port B-90°CCW from inlet C-lnline with inlet D-90°CW from inlet | 22 | R-Right hand for clockwise,omit L-Left hand for counterclockwise |
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
| Series | Flow code | Geometric displacement ml/r | Max.pressure(Mpa) | Max.speed(rpm) | Min.speed(rpm) |
| 30VQ | 24 | 80 | 21 | 2500 | 600 |
| 28 | 89 | 21 | 2500 |
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
