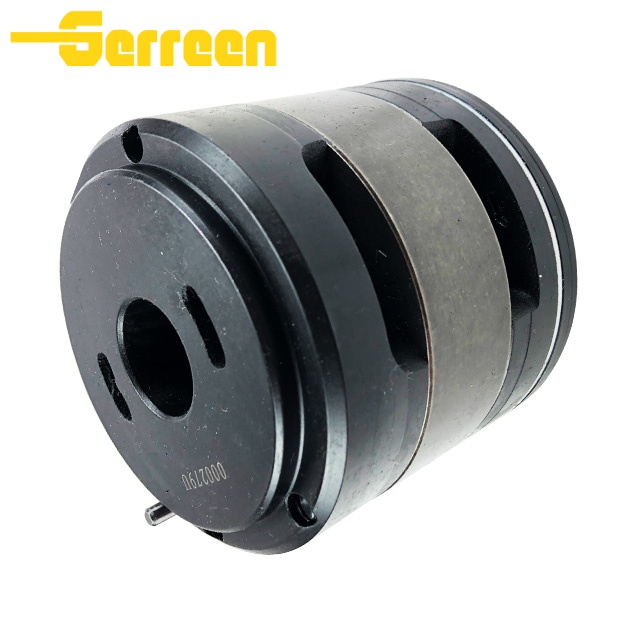

T6T7 Series Cartridge
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Right hand or Left hand
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Teeth Shaft
Product Description

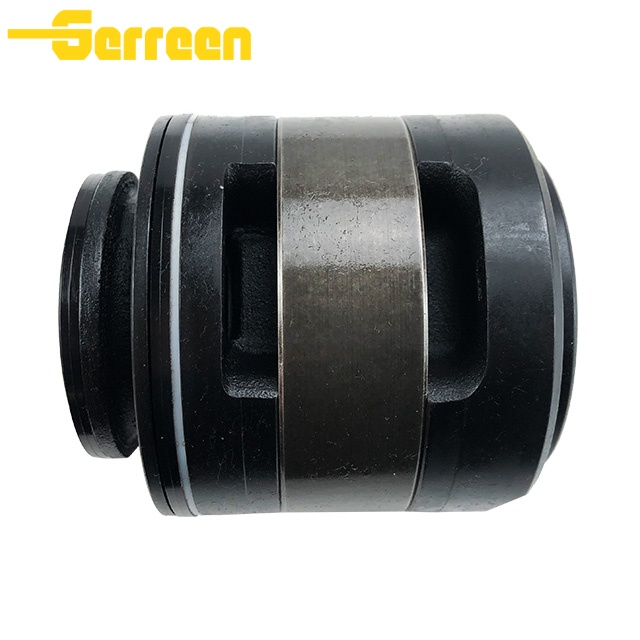

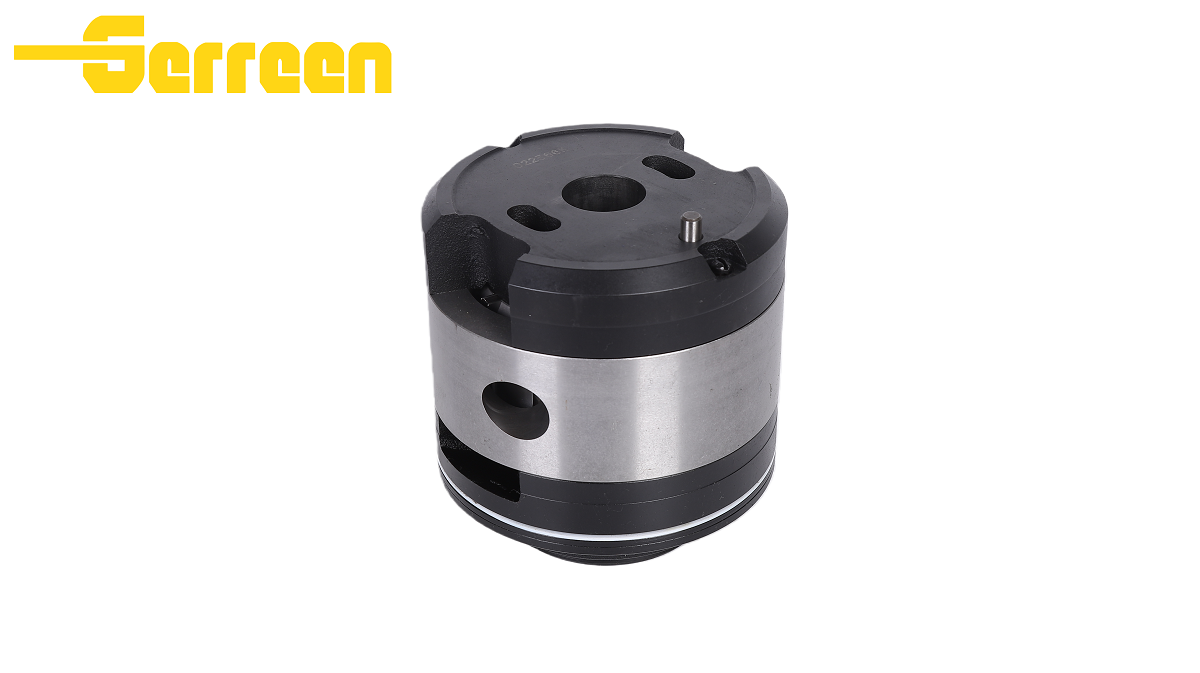

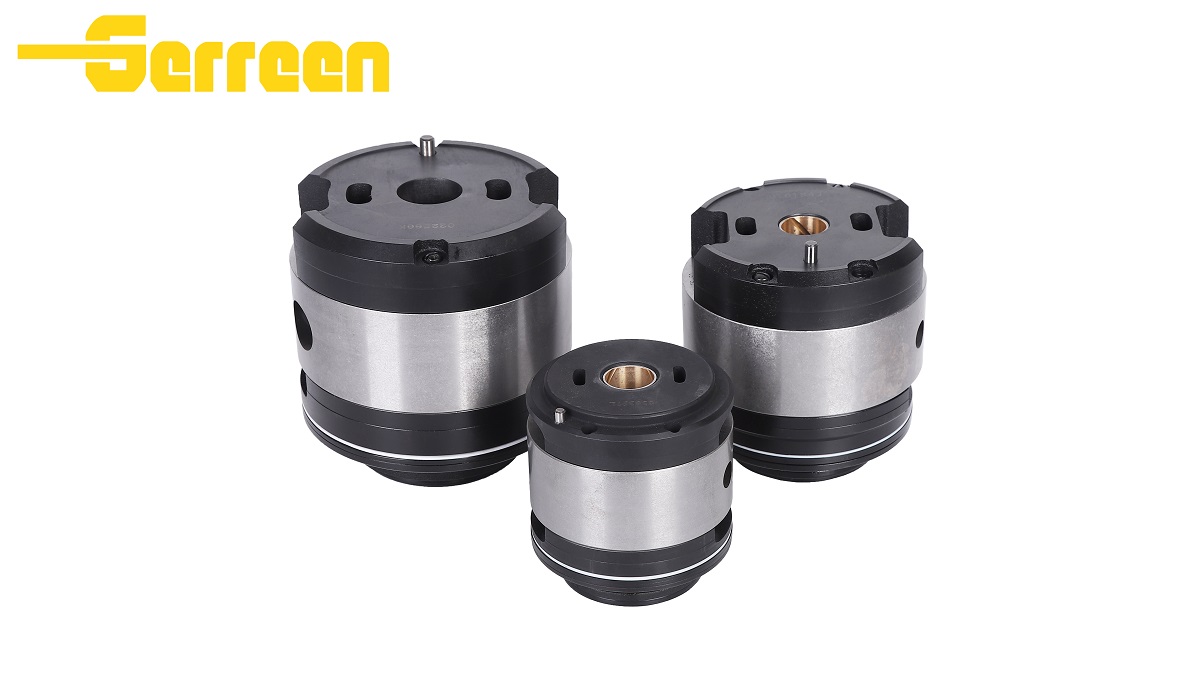

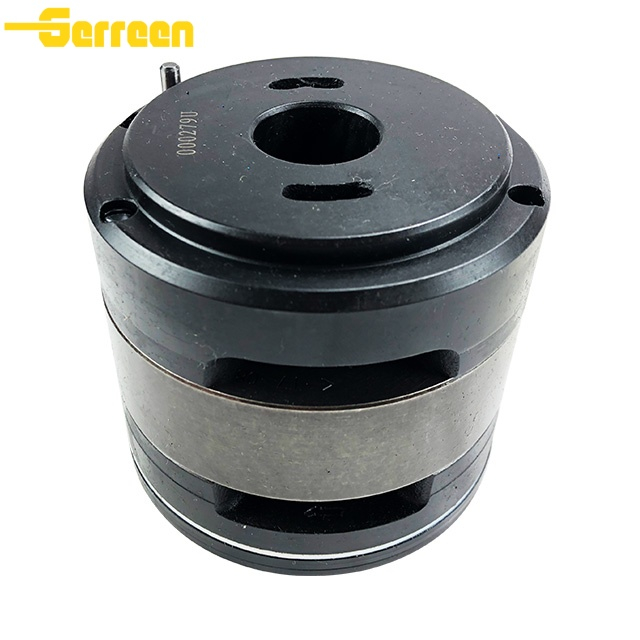

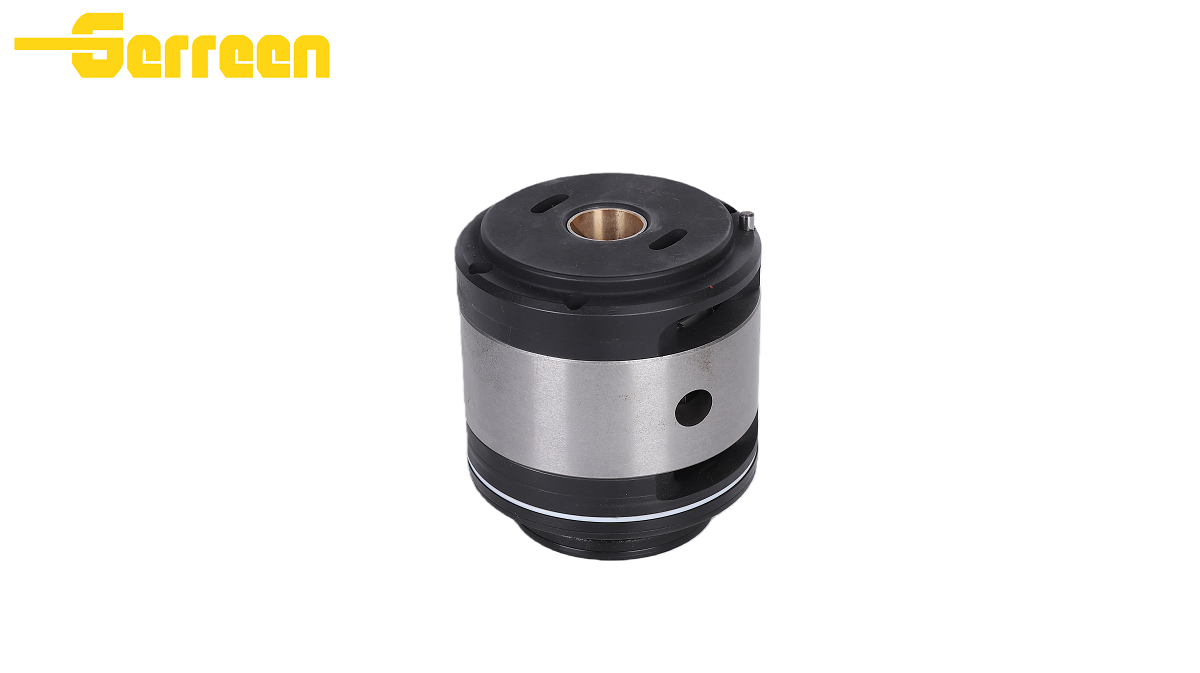

The T6T7 Series Cartridge is a high-efficiency hydraulic vane pump component designed for reliable performance in demanding applications. It offers smooth, low-noise operation, excellent volumetric efficiency, and long service life. Easy to install and maintain, the T6T7 Series is ideal for industrial, mobile, and construction hydraulic systems requiring stable pressure and consistent power output.
High-efficiency hydraulic vane design
Low noise and smooth operation
Compact and durable construction
Easy installation and maintenance
Compatible with various hydraulic systems
Ensures stable flow and pressure performance
Reduces system noise and vibration
Extends pump service life
Minimizes downtime and maintenance costs
Ideal for industrial and mobile hydraulic applications
Vane pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
| Front cartridge | T6DC | -045 | R | 1 |
| Cartridge name | Series | Flow code | Rotation | Sealing Level |
| Single pump cartridge Front cartridge Front cartridge of double or treble pump Middle cartridge Middle cartridge of treble pump Rear cartridge Rear cartridge of double or treble pump | T7B(S),T7BB(S),T67CB,T67DB， T67EB,T67DBB,T67DCB， T67DDBS,T67EDB | B02，B03,B04,B05,B06，B07，B08， B10，B12，B15 | Viewed from shaft end of pump R- right hand for clockwise L-left hand for counter- clockwise | 1-S1, NBR Nitrile rubber 5-S5, Fluororubber |
| T7D(S),T7DB(S),T7ED(S)，T67DC，T67ED | B14,B17,B20,B22，B24，B28,B31， B35，B38，B42 | |||
| T7E(S),T7EE(S),T7ED(S) | 042，045，050，052，054,057，062， 066，072，085 | |||
| T6C，T6CC，T67CB，T6DC，T6EC， T6DCC，T67DCB,T6DDCS， T6EDC(S) | 003/B03，005/B05，006/B06，008/ B08，010/B10，012/B12，014/B14， 017/B17,020/B20，022/B22，025/ B25，028/B28，031/B31 | |||
| T6D，T6DC，T67DB,T6ED，T6DCC， T67DBB，T67DCB，T6DDCS， T67DDBS,T6EDC(S),T67EDB | 014/B14，017/B17,020/B20， 024/B24，028/B28,031/B31, 035/B35，038/B38，042/B42， 045/B45，050/B50，061 | |||
| T6E，T6EC，T67EB,T6ED,T6EDC(S) T67EDB | 042，045,050,052，057， 062，066， 072，085 |
1. Industrial Hydraulic Systems
2. Mobile Equipment
3. Construction and Engineering Machinery
4. Metallurgy and Steel Industry
5. Marine and Offshore Equipment
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

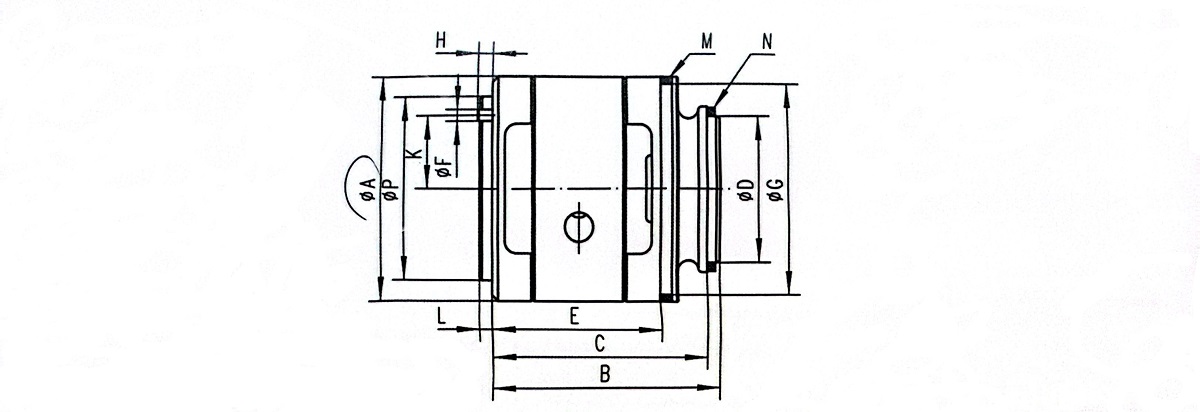

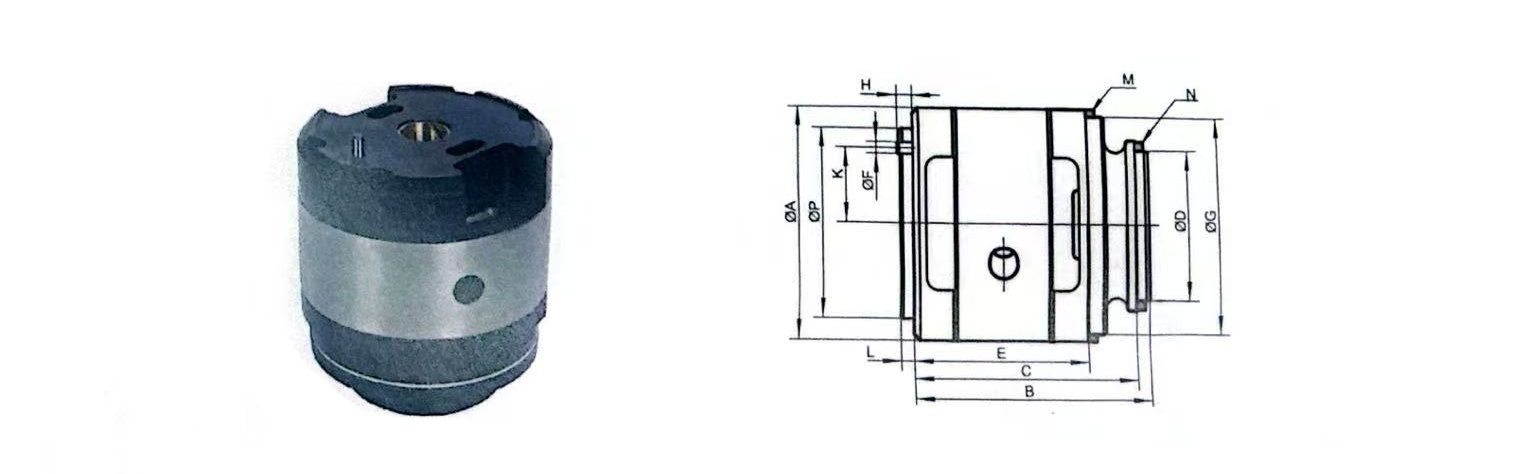

| Cartridge name | Sliding bearing diameter | A | B | C | D | E | F | G | H | K | M Rubber washer | N Rubber washer | P | L |
| Single pump cartridge T6C,T7B(S) | 15.90 | 95.25 | 99.4 | 93.9 | 61.9 | 72.1 | 4.8 | 89.1 | 4.8 | 43.7 | 88.5*3.53 | 60*3.53 | 77.7 | 5.5 |
| Front cartridge T6CC,T67CB,T7BB(S) | NO | |||||||||||||
| Rear cartridge T67DBB,T67DCB,T6DDCS, T6CC,T7BB(S),T67CB,T6DCC, T67DDBS,T6EDC(S),T67EDB | 19.05 | |||||||||||||
| Rear cartridge T6DC,T7DB(S),T7EB(S),T67DB, T67DC,T6EC,T67EC,T67EB | 22.225 | |||||||||||||
| Middle cartridge T6DCC,T67DBB,T67DCB | NO | 95.25 | 83.4 | 77.3 | 52.6 | - | 4.8 | - | 4.8 | 43.7 | 89*2.4 | 52*2.4 | 77.7 | 5.5 |
| Single pump cartridge T6D,T7D(S),Front cartridge T6DCC,T67DBB,T67DCB | 22.225 | 123.0 | 132.4 | 125.8 | 71.9 | 102.2 | 6.4 | 108.1 | 8.0 | 41.2 | 107.5*3.53 | 69.5*3.53 | NO | |
| Front cartridge T6DC,T67DB,T7DB(S),T7DD(S), T67DC,T6DDCS,T67DDBS | NO | |||||||||||||
| Rear cartridge T6ED,T7DD(S) Middle cartridge T6EDC(S) T67EDB | 28.6 | |||||||||||||
| Middle cartridge T6DDCS,T67DDBS Rear cartridge T7DD(S) | 22.2225 | |||||||||||||
| Single pump cartridge T6E,T7E(S) | 28.6 | 143.08 | 150.3 | 142.5 | 88.0 | 113.0 | 8.0 | 137.0 | 8.0 | 49.2 | 136.1*3.53 | 85.3*3.53 | ||
| Front cartridge T6ED,T6EC,T67EB,T7EB(S), T7ED(S),T7EE(S),T7EDC(S), T67EDB,T67EC | NO | |||||||||||||
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
