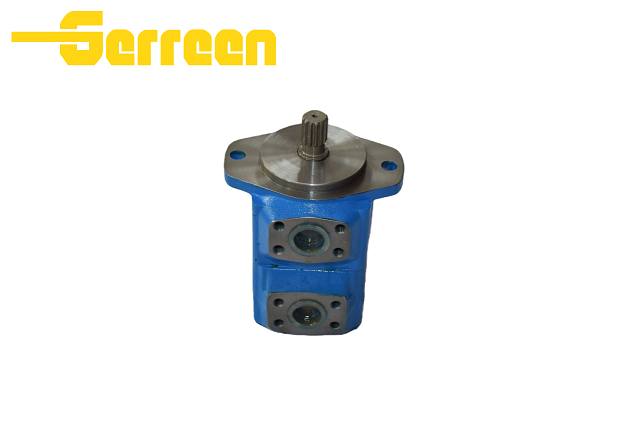

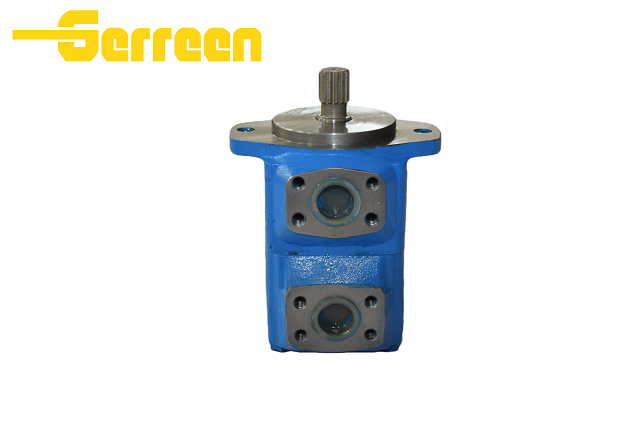

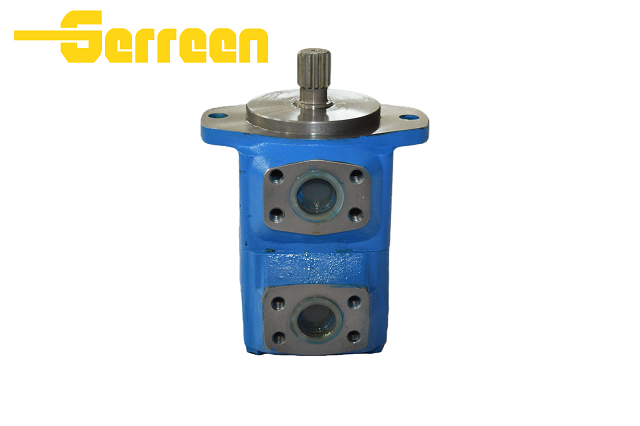

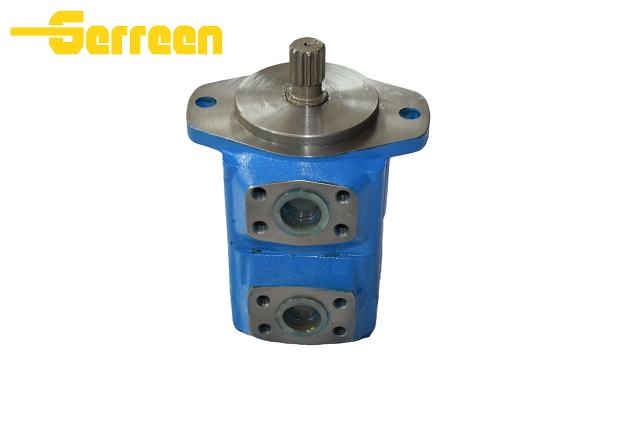

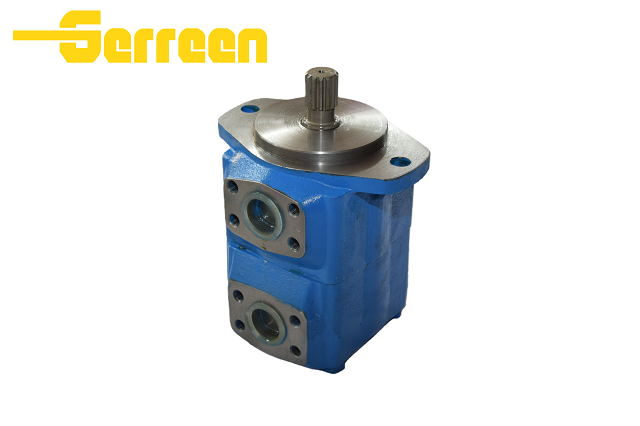

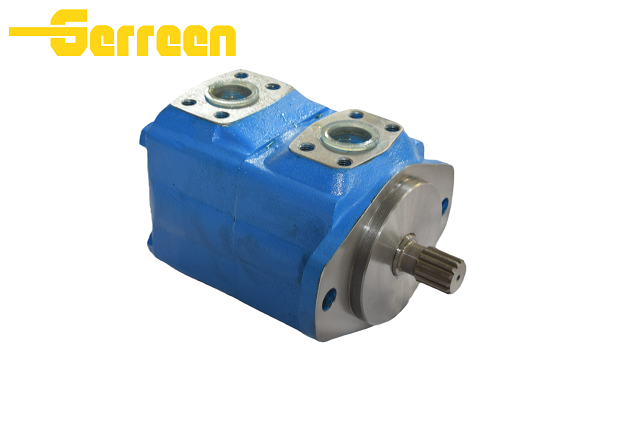

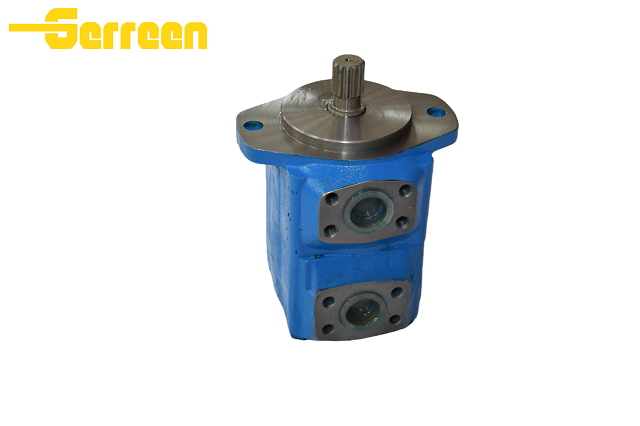

35M Series Vane Motor

35M Series Vane Motor overview

The 35M Series Vane Motor is a medium-duty hydraulic motor from the Vickers/Eaton M Series, featuring a vane-type dual-platen design for high efficiency, smooth low-inertia operation, and easy maintenance. It supports up to about 155 bar (2250 psi) continuous pressure and 3000 rpm speed, with displacement around 80–120 cm³/rev and torque about 9–13 Nm at 6.9 bar. Commonly used in cranes, winches, mobile machinery, and industrial hydraulic systems requiring reliable medium torque and high-speed performance.

Key Features

• Dual-Platen Vane Design: Improves efficiency by reducing internal friction.

• Low Inertia Rotor: Ensures quick response and smooth operation.

• Versatile Mounting Options: Available in various mounting configurations (flange, keyed/splined shafts).

• Compact and Space-Saving: High torque in a smaller form factor.

• High Pressure & Speed Capacity: Supports up to 155 bar pressure and speeds up to 3000 rpm.

• Modular Design: Allows easy maintenance and part replacement.

Advantages

• Improved Efficiency: The dual-platen design minimizes wear and maximizes performance.

• Reliability: Built to handle demanding conditions with long-lasting durability.

• Flexibility: Multiple mounting and configuration options allow for versatile application use.

• Quick Start and Stop: Low inertia ensures fast response time.

• Easy Serviceability: Modular design makes it simpler to maintain and repair.

Application

1. Industrial Hydraulic Systems

2. Mobile Equipment

3. Construction and Engineering Machinery

4. Metallurgy and Steel Industry

5. Marine and Offshore Equipment

Packaging & Delivery

Vane pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Certifications & Quality Assurance

All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

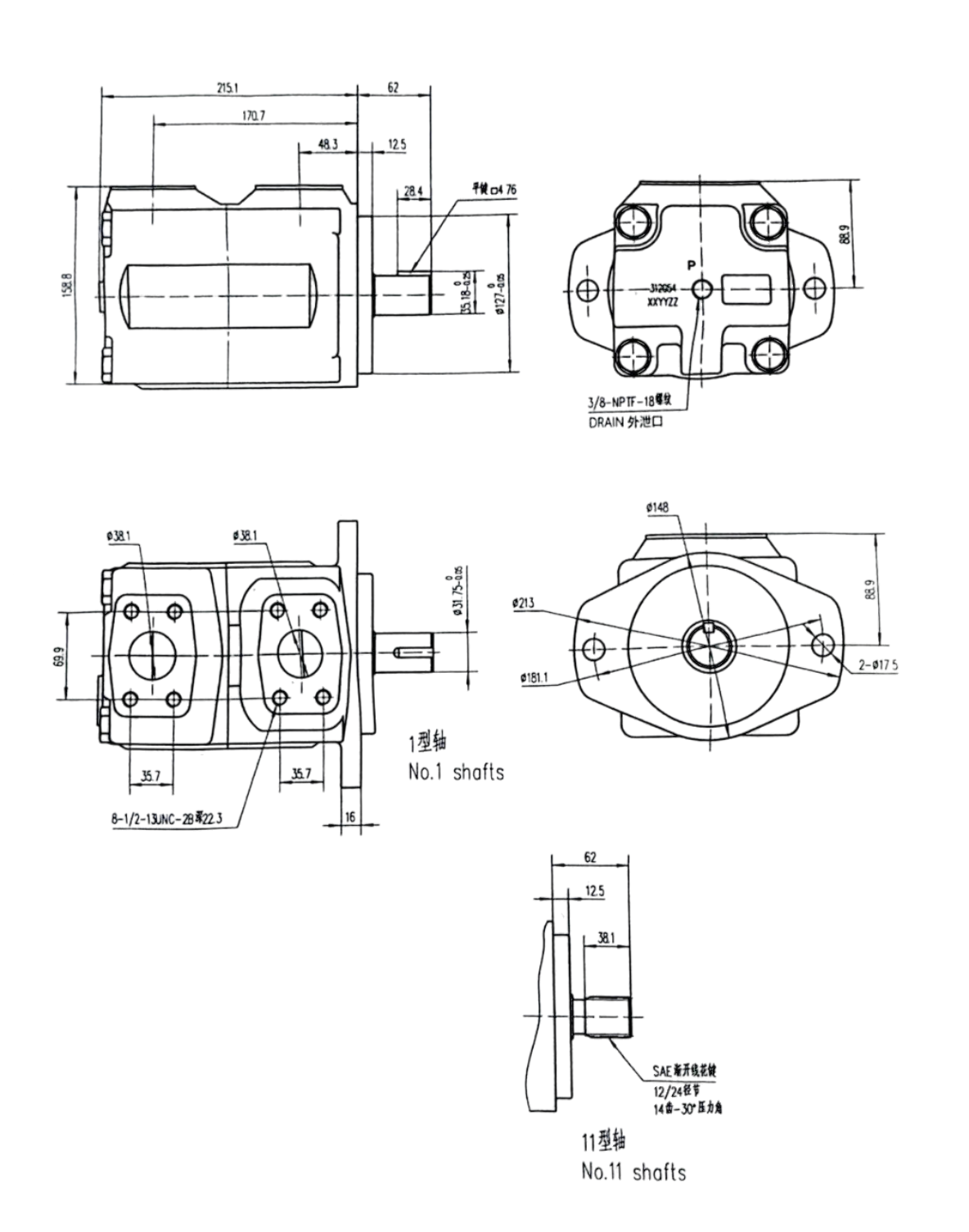

Technical Date:

FAQ

1.Are you a manufacture for the vane pump or a wholesale ?

We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
