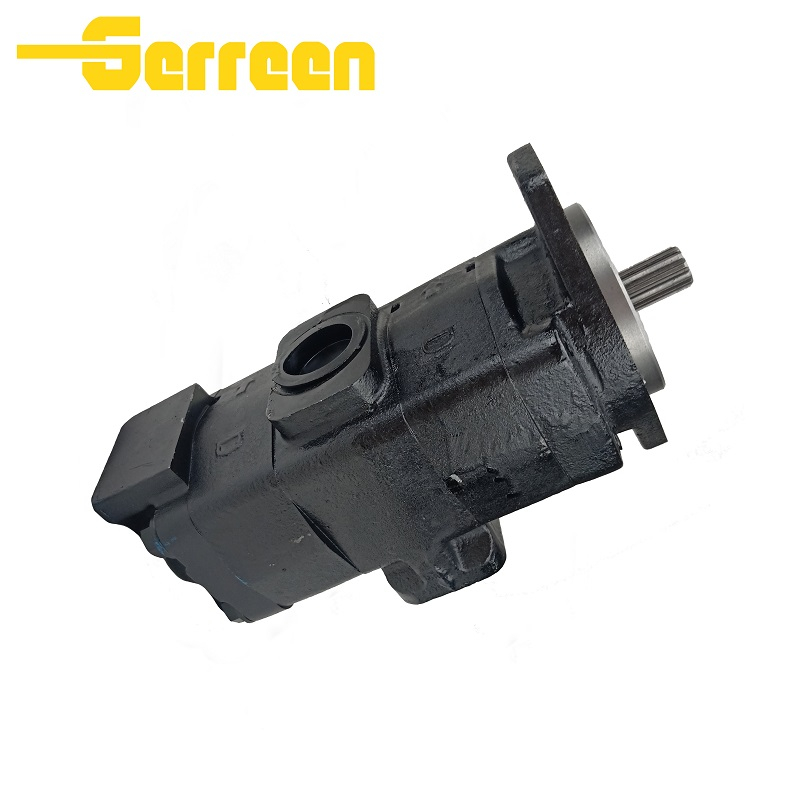

PGP/PGM620 Series Gear Pump overview
The PGP/PGM620 Series Gear Pump from Parker is a fixed-displacement hydraulic gear pump designed for heavy-duty mobile and industrial applications. Its robust two-piece interlocking cast-iron construction delivers high volumetric efficiency, power density, and durability under high-pressure conditions. With displacements ranging roughly from 16 cm³/rev to 52 cm³/rev, continuous operating pressures up to 275 bar (4,000 psi), and speeds up to 3,500 rpm, the PGP620 series supports clockwise, counter-clockwise, and bi-rotational operation. Available in single, tandem, or multi-section configurations, it offers flexible mounting, shaft, and porting options, as well as a variety of integrated valve choices such as pressure relief and anti-cavitation features. This makes the PGP620 ideal for construction, material handling, agriculture, and other demanding hydraulic systems requiring reliable, high-performance gear pumps.
Key Features
Two-piece interlocking cast-iron body for high volumetric efficiency and structural strength.
Pressure-balanced design to reduce internal leakage and improve overall efficiency.
Wide displacement range (approx. 16 – 52 cm³/rev) suitable for various hydraulic system requirements.
High continuous pressure capability up to ~275 bar (4000 psi).
Multi-section and integrated valve options including pressure relief, anti-cavitation, cross-port relief, solenoid unloading, and proportional relief.
High speed capability up to ~3500 rpm for demanding applications.
Reduced noise levels and smoother operation compared with older models.
Advantages
Excellent durability and long service life thanks to rugged cast-iron construction.
Flexible configuration options allow integration into single, tandem, and multi-pump systems.
Wide fluid and application compatibility, including construction, agriculture, material handling, and more.
Flexible system integration thanks to modular design and configuration options.
Improved system performance with balanced thrust plates and options for integrated valves that enhance control and safety.
Broad application range including construction equipment, truck hydraulics, and hydraulic power units.
Application
Construction Machinery — hydraulic systems for excavators, loaders, graders, and cranes.
Truck-Mounted Equipment — dump trucks, concrete pump trucks, refuse loaders, and lift gates.
Material Handling — forklifts, aerial work platforms, and industrial lift systems.
Agricultural Machinery — tractors, balers, sprayers, and harvesters.
Mobile Hydraulic Power Units — power packs for on-site hydraulic tools and equipment.
Industrial Hydraulic Systems — presses, conveyors, and machine tools requiring stable hydraulic power.
Municipal and Utility Vehicles — street sweepers, snow plows, and service vehicles.
Packaging & Delivery
Gear pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
| Pump Displac-ement | code | 0160 | 0190 | 0210 | 0230 | 0260 | 0290 | 0330 | 0360 | 0370 | 0410 | 0440 | 0460 | 0500 | 0520 |
| cm²/rev | 16 | 19 | 21 | 23 | 26 | 29 | 33 | 36 | 37 | 41 | 44 | 46 | 50 | 52 |
| in²/rev | 0.98 | 1.16 | 1.28 | 1.4 | 1.6 | 1.8 | 2.01 | 2.2 | 2.3 | 2.5 | 2.7 | 2.8 | 3.1 | 3.2 |
| Continous Pressure | bar | 275 | 275 | 275 | 275 | 275 | 275 | 275 | 250 | 250 | 220 | 210 | 210 | 210 | 210 |
| psi | 4000 | 3600 | 3200 | 3050 |
| Intermitt-ent Press. | bar | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 275 | 275 | 245 | 230 | 220 | 210 | 210 |
| psi | 4350 | 4000 | 3500 | 3300 | 3200 | 3050 |
| Min Speed | rpm | 500@Max.outlet press. |
| Max Speed | 3500@0 Inlet&Max outlet press. | 3000 |
| Dimension"X" | mm | 79.2 | 82.5 | 84.7 | 86.9 | 90.2 | 93.5 | 97.9 | 101 | 102 | 107 | 110 | 112 | 117 | 119 |
| in²/rev | 3.1 | 3.2 | 3.6 | 3.4 | 3.6 | 3.7 | 3.9 | 4 | 4 | 4.2 | 4.3 | 4.4 | 4.6 | 4.7 |
| Dimension"Y" | mm | 120 | 124 | 126 | 128 | 131 | 1341 | 139 | 142 | 143 | 148 | 151 | 153 | 158 | 160 |
| in²/rev | 4.7 | 4.9 | 4.9 | 5 | 5.2 | 5.3 | 5.5 | 5.6 | 5.6 | 5.8 | 5.9 | 6 | 6.2 | 6.3 |
| Approx Weight | kg | 12 | 12.1 | 12.1 | 12.2 | 112.3 | 12.6 | 12.7 | 12.8 | 12.9 | 13 | 13.1 | 13.2 | 13.3 | 13.4 |
| lb | 26.4 | 26.6 | 26.6 | 26.8 | 27.1 | 27.7 | 27.9 | 28.1 | 28.4 | 28.6 | 28.8 | 29.4 | 29.3 | 29.5 |
Certifications & Quality Assurance
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

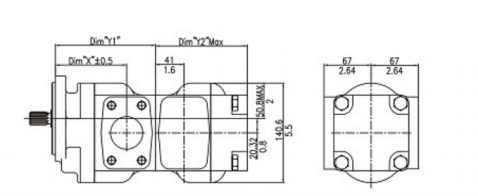

| code | 0160 | 0190 | 0210 | 0230 | 0260 | 0290 | 0330 | 0360 | 0370 | 0410 | 0440 | 0460 | 0500 | 0520 |
| Dimension"X" | mm | 79.2 | 82.5 | 84.7 | 86.9 | 90.2 | 93.5 | 97.9 | 101 | 102 | 107 | 110 | 112 | 117 | 119 |
| in | 3.1 | 3.2 | 3.3 | 3.4 | 3.5 | 3.7 | 3.9 | 4 | 4 | 4.2 | 4.3 | 4.4 | 4.6 | 4.7 |
| Dimension"Y1" | mm | 120 | 124 | 126 | 128 | 131 | 135 | 139 | 142 | 143 | 148 | 151 | 153 | 158 | 160 |
| in | 4.7 | 4.9 | 4.9 | 5 | 5.2 | 5.3 | 5.5 | 5.6 | 5.6 | 5.8 | 5.9 | 6 | 6.2 | 6.3 |
| Dimension"Y2" | mm | 115 | 119 | 121 | 123 | 126 | 130 | 134 | 137 | 138 | 143 | 146 | 148 | 153 | 155 |
| in | 4.5 | 4.7 | 4.8 | 4.8 | 5 | 5.1 | 5.3 | 5.4 | 5.4 | 5.6 | 5.7 | 5.8 | 6 | 6.1 |
| Weight (front section) | kg | 12 | 12.1 | 12.1 | 12.2 | 12.3 | 12.6 | 12.7 | 12.8 | 12.9 | 13 | 13.1 | 13.2 | 13.3 | 13.4 |
| lb | 26.4 | 26.6 | 26.6 | 26.8 | 27.1 | 27.7 | 27.9 | 28.2 | 28.4 | 28.6 | 28.8 | 29.0 | 29.3 | 29.5 |
| Weight (rear section) | kg | 10.4 | 10.5 | 10.5 | 10.6 | 10.7 | 11.0 | 11.1 | 11.2 | 11.3 | 11.4 | 11.5 | 11.6 | 11.7 | 11.8 |
| lb | 22.9 | 23.1 | 23.1 | 23.3 | 23.5 | 24.2 | 24.4 | 24.6 | 24.9 | 25.1 | 25.3 | 25.5 | 25.7 | 26.0 |
FAQ
1.Are you a manufacture for the vane pump or a wholesale ?
We are a manufacture for vane pumps.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
2.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
3.What is your payment terms?
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
4.Can you make my own brand on the products?
Of course we can. Just send me your logo we can make it for you.
5.What is our main export market?
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
