Product Description

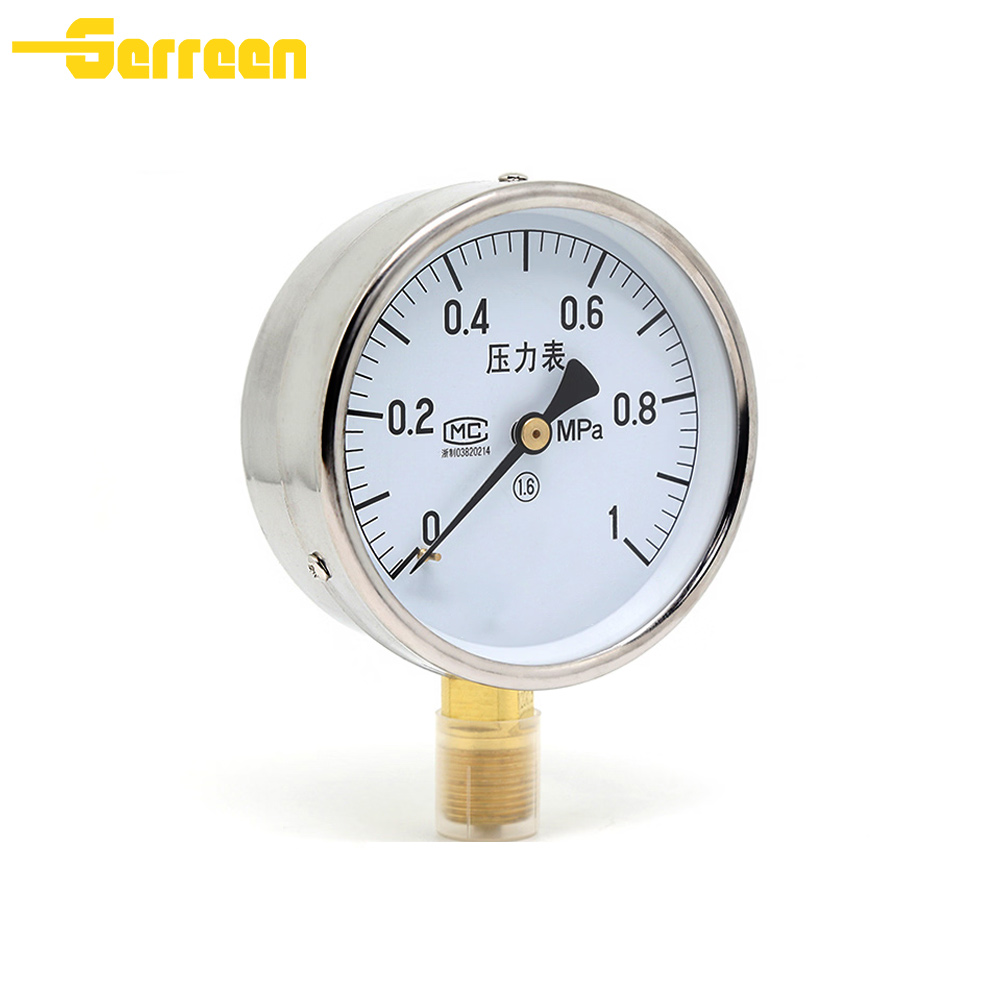

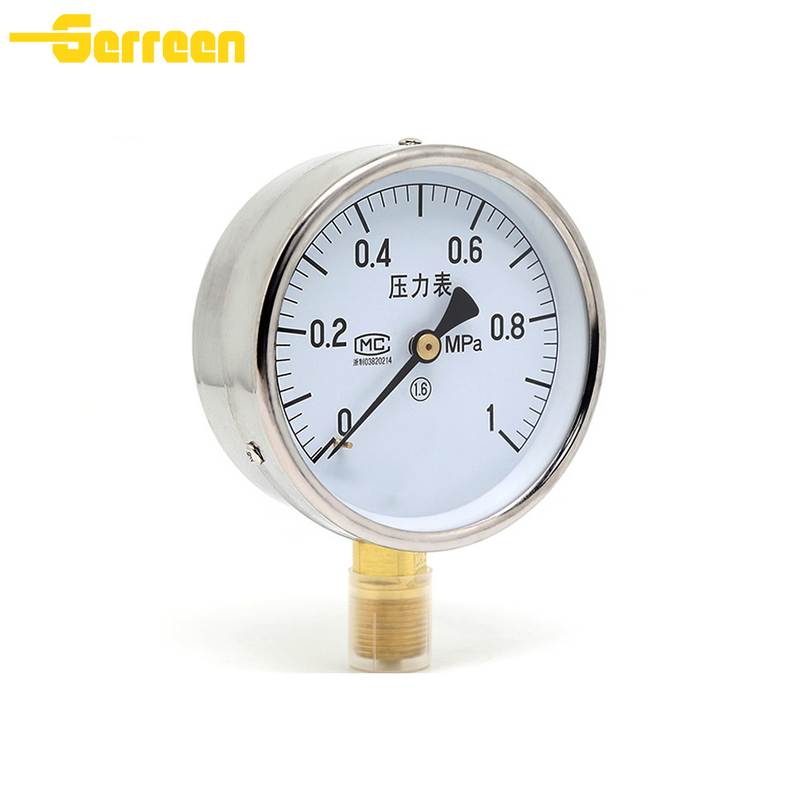

Y-100ZQ Series General Pressure Gauges
The Y-100ZQ series standard pressure gauge is a versatile instrument employing a Bourdon tube as its sensing element, primarily designed to measure the pressure of liquids, gases, or vapours that are non-corrosive to copper alloys and steel.
Key Features of Y-100 Series General Pressure Gauges
This series of pressure gauges prioritises reliability, durability, and user-friendliness in its design. Principal characteristics include:
Measuring Principle: Utilises the elastic deformation of Bourdon tubes, converting this deformation into rotary motion via a gear transmission mechanism to indicate pressure values.
Construction Materials: Connectors and movement typically comprise copper alloys, while the case (dial housing) is usually black plastic or painted steel.
Clear Readability: Features a 100mm (approx. 4-inch) diameter dial with distinct graduations for intuitive readings.
Durability: Rational construction ensures robust sealing and stable performance. Threaded connections utilise copper materials resistant to corrosion or rust, guaranteeing extended service life.
Accuracy: Mechanical Y-100 series pressure gauges typically offer accuracy grades of ±1.6% or ±2.5%, meeting requirements for most general monitoring tasks.
Versatile mounting options: Supports multiple installation methods including bottom mounting, rear flange bottom mounting, front flange bottom panel mounting, and rear mounting to accommodate diverse installation environments.
Environmental adaptability: Operates within a normal ambient temperature range of -40°C to +70°C, with relative humidity not exceeding 85%.
Application
The Y-100ZQ pressure gauge finds extensive use across industrial, commercial, and domestic systems, including:
Industrial Manufacturing: Monitoring pressure in hydraulic and pneumatic systems, compressors, boilers, pumps, and regulators.
HVAC (Heating, Ventilation, and Air Conditioning): Measuring refrigerant and air pressures to ensure climate control systems operate correctly.
Utilities: Monitoring pressure in water supply pipes, gas pipelines, and ventilation systems.
General Equipment: Suitable for general industrial machinery and commercial equipment where pressure monitoring is critical for safety, efficiency, and process control.
Automotive Sector: Employable for diagnosing engine performance and brake system pressure (requiring appropriate models and fittings).
Hydraulic pressure gauges are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All hydraulic pressure gauges are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
