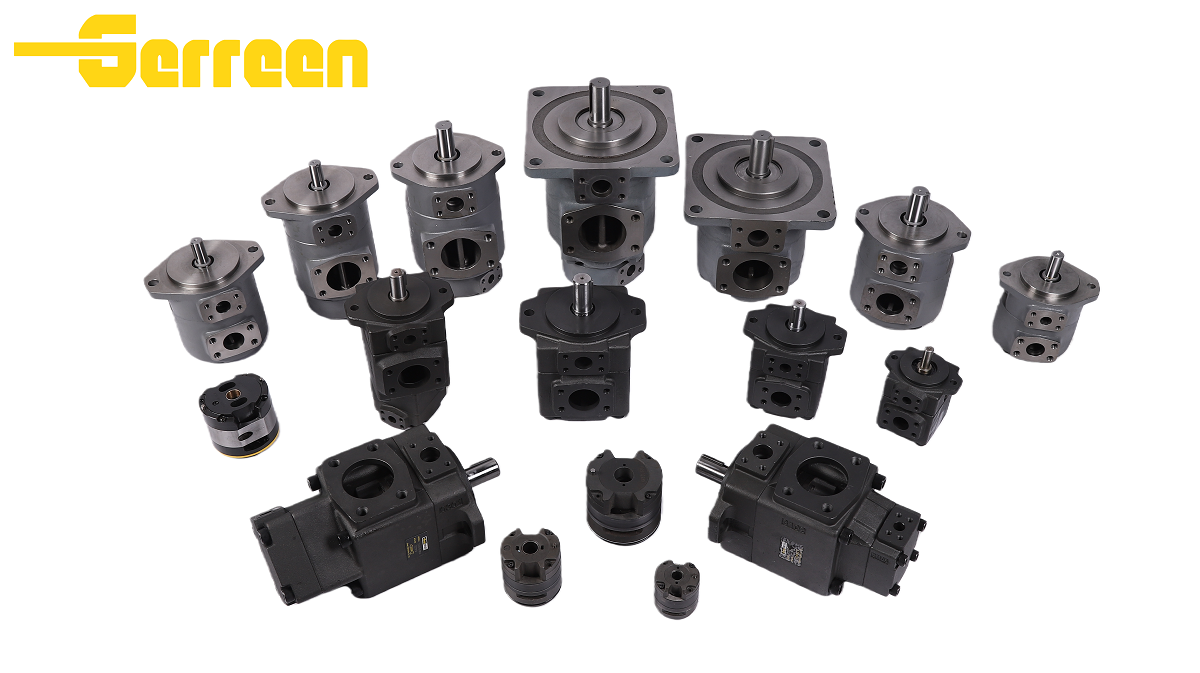

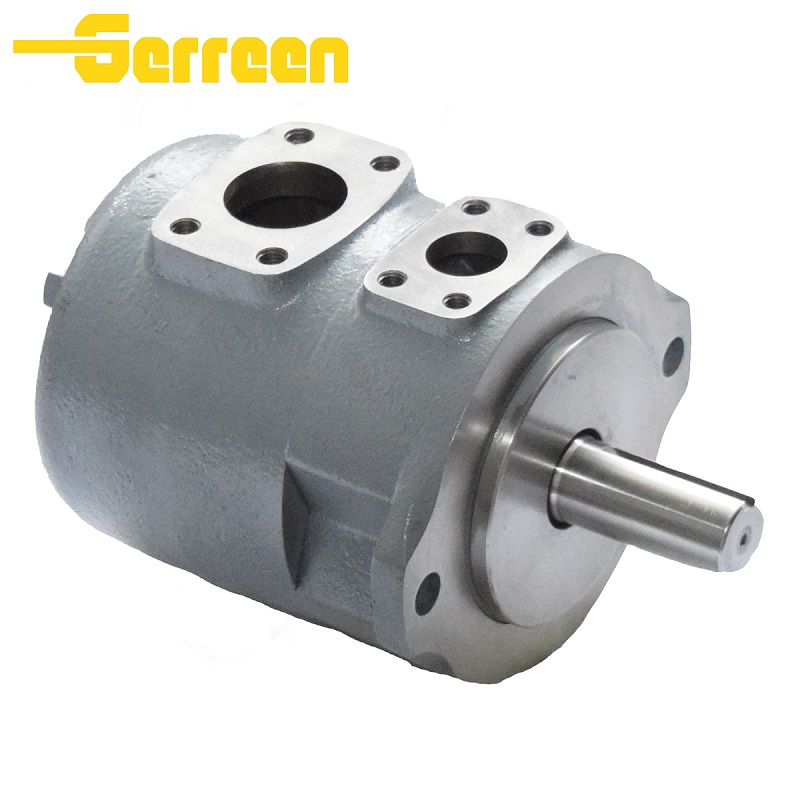

SQP Series-vane Pumps
Yes
ISO9001 CE
Standard
1 set
Right hand or Left hand
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Teeth Shaft
Product Description
The SQP Series Vane Pumps are engineered to deliver reliable, low-noise, and high-efficiency hydraulic performance with a compact design and durable construction. Ideal for diverse industrial applications including machine tools, plastic injection molding, die-casting, and general hydraulic systems, these pumps ensure stable flow, easy maintenance, and long service life.

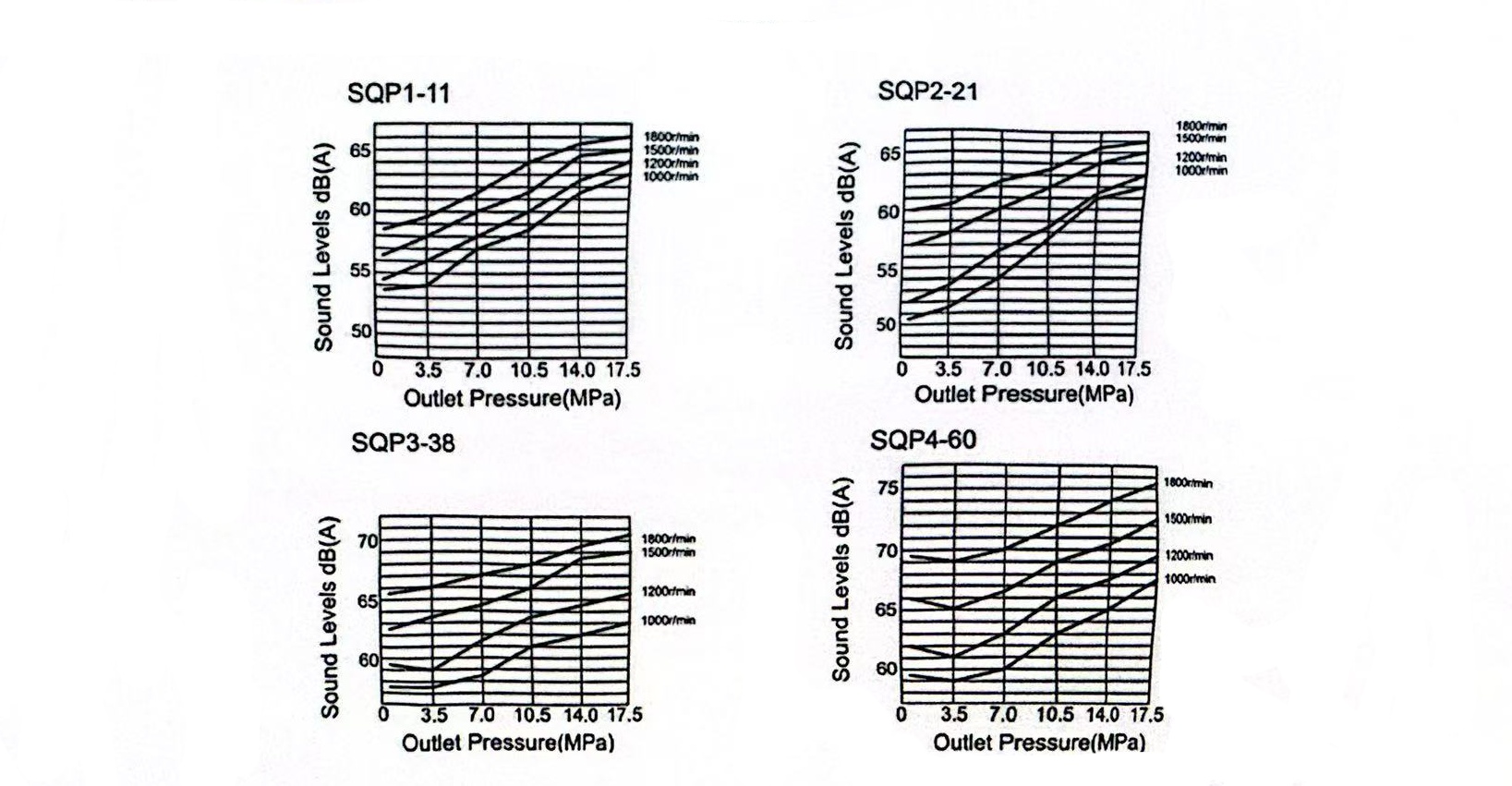

Low Noise Operation: Advanced vane and cam ring design reduce operational noise for quieter working environments.
High Efficiency: Optimized internal flow paths ensure excellent volumetric and mechanical efficiency.
Compact & Lightweight: Space-saving design allows easy integration into various hydraulic systems.
Wide Displacement Range: Multiple models available to suit different flow and pressure requirements.
Durable Construction: High-quality materials and precise manufacturing guarantee long service life.
Easy Maintenance: Simple design facilitates quick servicing and reduces downtime.
Interchangeable Design: Compatible with standard Vickers vane pumps for easy replacement and upgrade.
Vane pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
| (F3-) | SQP2 | -21 | -1 | C | （F） | -(LH) | -18 |
| Infuse front,oil intermiscibility | Series | Displacement code | Shaft type | Outlet positions | Installation type | Rotation | Design number |
| No-marking: Anti-wear hydraulic oil，Water glycol fluid or water-oil emulsions F3-phosphate ester fluid | SQP1 | 2,3,4,5,6,7,8,9,10,11,12,14 | 1-belt key straight shaft 86-Heavy belt key straight shaft | （Viewed from cover end of pump）A-Opposite inlet B-90°CCW from inlet C-inline with inlet D-90°CW from inlet | NO-marking: Flange Mounting F-Foot Mounting | (Viewde from shaft end of pump) LH-Left hand for counter clockwise NO -marking-Right hand for clockwise | 15 |
| SQP2 | 10,12,14,15,17,19,21,25 | 18 | |||||
| SQP3 | 21,25,30,32,35,38,45 | ||||||
| SQP4 | 42,45,50,57,60,66,75 |
1. Industrial Hydraulic Systems
2. Mobile Equipment
3. Construction and Engineering Machinery
4. Metallurgy and Steel Industry
5. Marine and Offshore Equipment
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
| Series | Displacement code | Geometric displacement mL/r | With antiwear hydraulic ol or phosphate ester fluid | With water glycol fluid | With water-oil emulsions | Min. speed r/min | |||
| MPa Max.pressure | r/min Max.speed | MPa Max.pressure | r/min Max.speed | MPa Max.pressure | r/min Max.speed | ||||
| SQP1 | 2 | 7.5 | 13.8 | 1800 | 13.8 | 1200 | 6.9 | 1200 | 600 |
| 3 | 10.2 | ||||||||
| 4 | 12.8 | 17.2 | 15.9 | ||||||
| 5 | 16.7 | ||||||||
| 6 | 19.2 | ||||||||
| 7 | 22.9 | ||||||||
| 8 | 26.2 | ||||||||
| 9 | 28.8 | ||||||||
| 10 | 31.0 | ||||||||
| 11 | 35.0 | ||||||||
| 12 | 37.9 | 15.7 | 13.8 | ||||||
| 14 | 44.2 | 13.8 | |||||||
| SQP2 | 10 | 32.5 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 12 | 38.3 | ||||||||
| 14 | 43.3 | ||||||||
| 15 | 46.7 | ||||||||
| 17 | 52.5 | ||||||||
| 19 | 59.2 | ||||||||
| 21 | 65.0 | ||||||||
| 25 | 79.2 | ||||||||
| SQP3 | 21 | 66.7 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 25 | 79.2 | ||||||||
| 30 | 95.0 | ||||||||
| 32 | 100 | ||||||||
| 35 | 109 | ||||||||
| 38 | 118 | ||||||||
| 45 | 140 | 13.8 | 13.8 | ||||||
| SQP4 | 42 | 134 | 17.2 | 1800 | 15.9 | 1200 | 6.9 | 1200 | 600 |
| 45 | 140 | ||||||||
| 50 | 156 | ||||||||
| 57 | 178 | ||||||||
| 60 | 189 | ||||||||
| 66 | 207 | ||||||||
| 75 | 237 | 13.8 | 13.8 | ||||||
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
