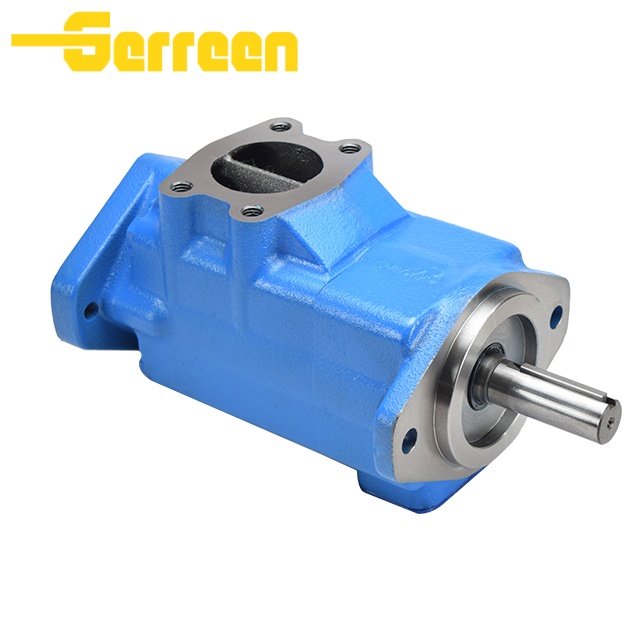

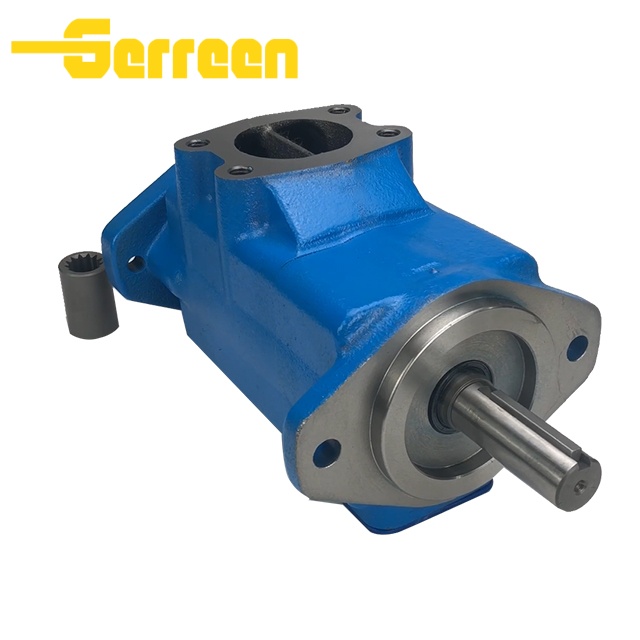

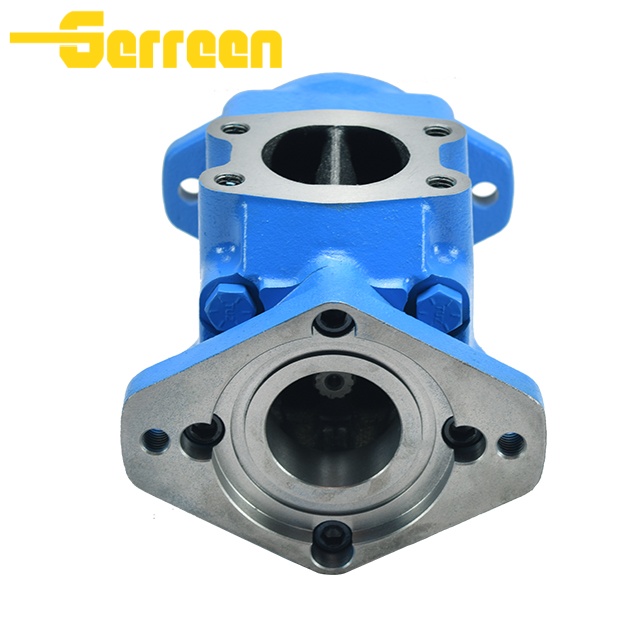

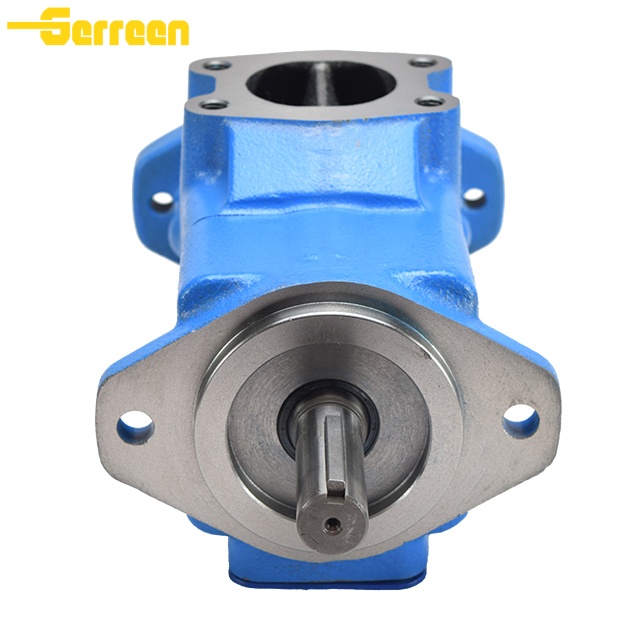

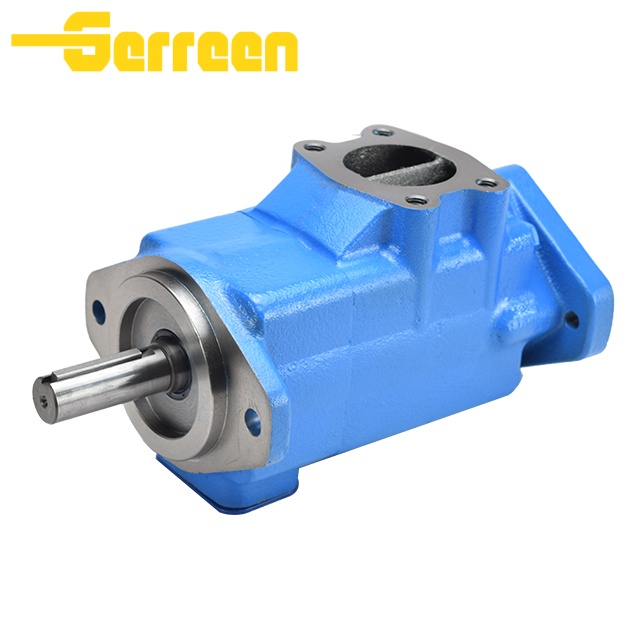

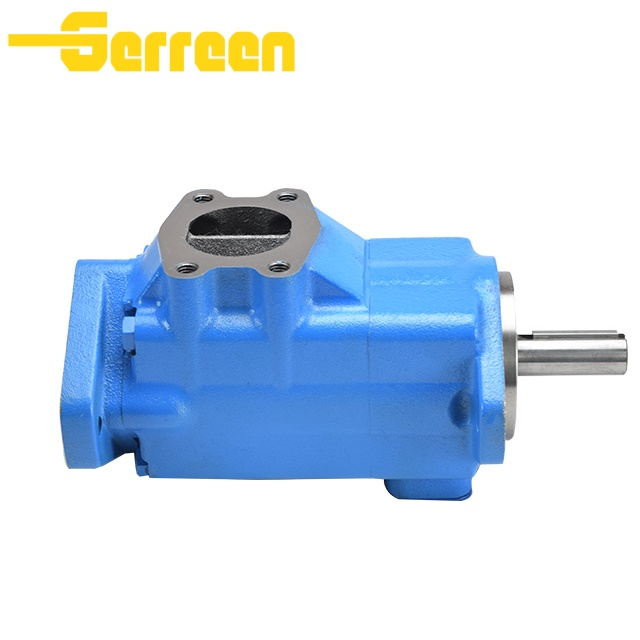

V Series-single Pumps
Gerreen Hydraulic
Yes
ISO9001，CE
Standard
1 set
Can be right hand rotation and left hand rotation.
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Teeth Shaft
Product Description
The V Series Single Pumps are high-performance, fixed-displacement vane pumps designed for medium-pressure industrial hydraulic applications. Featuring a compact intra-vane cartridge design with a 12-vane rotor, these pumps deliver smooth, low-noise operation and excellent volumetric efficiency. They offer a wide range of displacement options to suit various flow requirements and incorporate pressure-balanced construction to enhance reliability and extend service life. Widely used in injection molding machines, metalworking presses, and hydraulic power units, V Series Single Pumps are valued for their durability, ease of maintenance, and versatility in demanding industrial environments.
The pump’s vane assembly is housed in a compact, self-contained cartridge, allowing for easy maintenance and quick replacement without removing the entire pump.
Enhances volumetric efficiency and reduces internal leakage.
12-Vane Rotor System
Provides smooth and continuous flow with minimal pulsation, reducing noise and vibration in hydraulic systems.
Ideal for noise-sensitive applications.
Pressure-Balanced Construction
Internal pressure balancing reduces radial loads on the shaft and bearings, which increases the pump’s operational life and reliability.
Wide Displacement Range
Available in multiple displacement options (approximately 7 cc/rev to 193 cc/rev) to meet diverse flow and pressure requirements.
Compact and Robust Design
High power-to-weight ratio and small footprint simplify integration into hydraulic systems with limited space.
Low Noise Operation
Optimized vane design and internal flow paths significantly reduce noise levels compared to other pump types.
Versatile Mounting and Shaft Options
Multiple mounting flange types, shaft configurations, and outlet port positions provide flexibility for various industrial setups.
Easy Serviceability
Modular cartridge design facilitates quick servicing and replacement, minimizing downtime and maintenance costs.
Wide Application Suitability
Suitable for injection molding machines, metal presses, hydraulic power units, and other industrial hydraulic systems requiring medium pressure and reliable performance.
1. Industrial Hydraulic Systems
2. Mobile Equipment
3. Construction and Engineering Machinery
4. Metallurgy and Steel Industry
5. Marine and Offshore Equipment
Vane pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
| （F3-） | 25V | 19 | A | -1 | A | 22 | R |
| Note | Series | Flow code | Port connections | Shaft type | Outlet positions | Design number | Rotation |
| No-marking:Petroleum series oilemulsification fluid water glycol-fluid F3:phosphate ester fluid | 20V | 2,3,4,5,6,7,8，9, 10,11,12,14 | A-SAE 4-bolt flange | 1-Str key 151-Spline | (Viewed from cover end of pump) A-Opposite inlet B-90°CCW from inlet C-Inline with inlet D-90°CW from inlet | 22 | （Viewed from shaft end of pump） R-right hand for clockwise L- left hand for counter- clockwise |
| 25V | 10，12,14,15,17,19,21,25 | 1-Str key 86-HD Str key 11-Spline | |||||
| 35V | 21,25，21,25,30,32, 35,38,45 | ||||||
| 45V | 42,45,50,57, 60,66,75 |
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
| series | Flow code (USgpm) | Geometrie displacement mL/r（in³/r) | With antiwear hydraulic oil rl phosphate ester fluid | With water glycol fluid | With water-oil omulsions | Min. spead | |||
| Max.operating pressure MPa | Max.speed r/min | Max.operating pressure MPa | Max.speed r/min | Max.operating pressure MPa | Max.speed r/min | ||||
| 20V | 2 | 7.5（0.46） | 13.8 | 1800 | 13.8 | 1500 | 6.9 | 1200 | 600 |
| 3 | 10(0.61) | ||||||||
| 4 | 13(0.79) | 20.7 | 15.9 | ||||||
| 5 | 16.5(1.01) | ||||||||
| 6 | 19(1.16) | ||||||||
| 7 | 23(1.40) | ||||||||
| 8 | 27(1.67) | ||||||||
| 9 | 30(1.85) | ||||||||
| 10 | 32(1.95) | ||||||||
| 11 | 36(2.20) | ||||||||
| 12 | 40(2.44) | 15.9 | 13.8 | ||||||
| 14 | 45(2.78) | 13.8 | |||||||
| 25V | 10 | 32.5(1.98） | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 12 | 39(2.38) | ||||||||
| 14 | 45(2.78) | ||||||||
| 15 | 47(2.89) | ||||||||
| 17 | 55(3.36) | ||||||||
| 19 | 60(3.66) | ||||||||
| 21 | 67(4.13) | ||||||||
| 25 | 81(4.94) | ||||||||
| 35V | 21 | 67(4.13) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 25 | 81(4.94) | ||||||||
| 30 | 97(5.91) | ||||||||
| 32 | 101(6.16) | ||||||||
| 35 | 112(6.83) | ||||||||
| 38 | 121(7.37) | ||||||||
| 45 | 147(8.95) | 13.8 | 13.8 | ||||||
| 45V | 42 | 138(8.41) | 17.2 | 1800 | 15.9 | 1500 | 6.9 | 1500 | 600 |
| 45 | 147(8.95) | ||||||||
| 50 | 162(9.85) | ||||||||
| 57 | 181(11.05) | ||||||||
| 60 | 193(11.75) | ||||||||
| 66 | 212(12.93) | ||||||||
| 75 | 237(14.46) | 13.8 | 13.8 | ||||||
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
