2520VQSV10
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

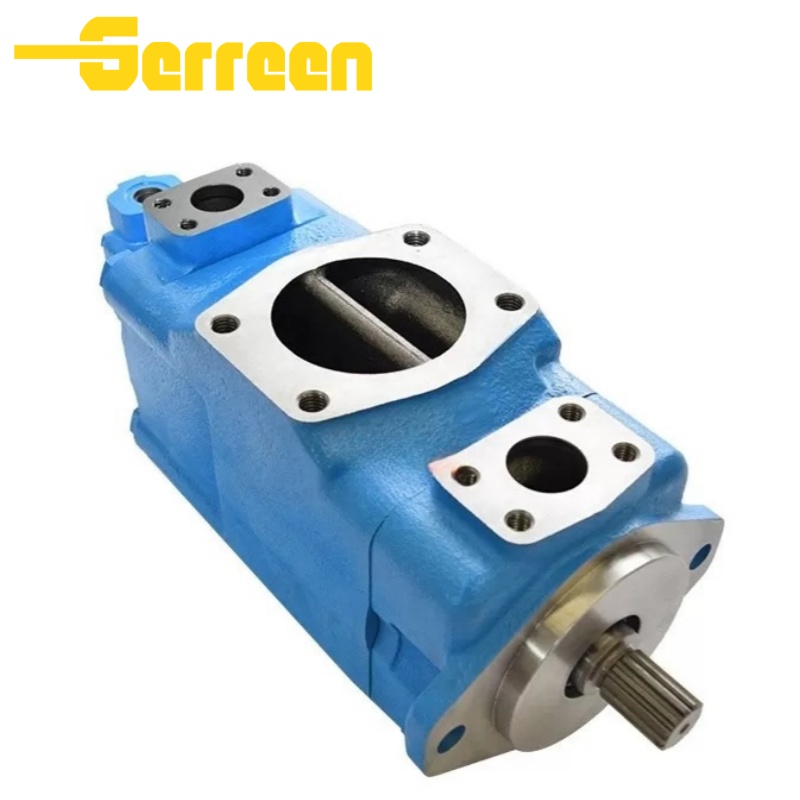

The 2520VQSV10 Industrial Vane Pump is a high-performance hydraulic pump designed for stable, efficient, and reliable operation in industrial applications. Its robust construction and precision components ensure smooth hydraulic flow, low noise, and long service life, making it ideal for heavy-duty machinery and automation systems.
The 2520VQSV10 is a single-section vane pump that uses a balanced vane design for consistent oil delivery. The vanes slide within the rotor slots against the cam ring, forming sealed chambers that allow continuous suction and discharge of hydraulic oil. This ensures stable pressure, smooth operation, and energy-efficient performance.
High Volumetric Efficiency – Reduced internal leakage ensures maximum oil delivery.
Low Noise & Vibration – Optimized internal design for quiet operation.
Durable Construction – Wear-resistant vanes and high-strength materials extend service life.
Compact Design – Saves space and allows flexible installation.
Stable Performance – Maintains consistent flow and pressure under varying load conditions.
Flexible Compatibility – Works with standard hydraulic oils (ISO VG32–68).
The 2520VQSV10 Industrial Vane Pump is designed for high-efficiency and reliable hydraulic performance in industrial applications. Its specifications highlight the pump’s capacity, operating range, and compatibility for various hydraulic systems.
The 2520VQSV10 Industrial Vane Pump is widely used in industrial hydraulic systems where stable flow, low noise, and reliable performance are essential. Typical applications include:
Machine Tools – Lathes, milling machines, and presses requiring precise hydraulic control
Hydraulic Power Units (HPU) – Centralized industrial hydraulic systems
Injection Molding Machines – Smooth and accurate hydraulic operation for plastic and rubber processing
Plastic & Rubber Machinery – Extrusion, molding, and forming equipment
Industrial Automation Equipment – Presses, conveyors, and assembly lines
Light Construction & Mobile Machinery – Small to medium hydraulic systems
These pumps provide efficient, reliable, and stable hydraulic performance across a wide range of industrial applications.
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
It is a single-section industrial vane pump designed for stable and efficient hydraulic performance.
2. What is the maximum operating pressure?
The pump can operate up to 16–20 MPa, depending on system conditions.
3. What hydraulic fluids are compatible?
It works with mineral or synthetic hydraulic oils with ISO VG32–68 viscosity.
4. Can it be used for continuous operation?
Yes, the pump is designed for continuous duty with consistent performance and low wear.
5. What are the typical applications?
Machine tools, hydraulic power units, injection molding machines, plastic and rubber machinery, and industrial automation equipment.
6. How does the vane design benefit the pump?
The balanced vane structure reduces radial load, vibration, and noise while maintaining smooth oil flow.
7. Is maintenance difficult?
No, the pump has a compact and durable design, making maintenance straightforward and minimizing downtime.
8. How does it improve system efficiency?
By providing stable flow, low internal leakage, and smooth operation, the pump reduces energy loss and heat generation.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
