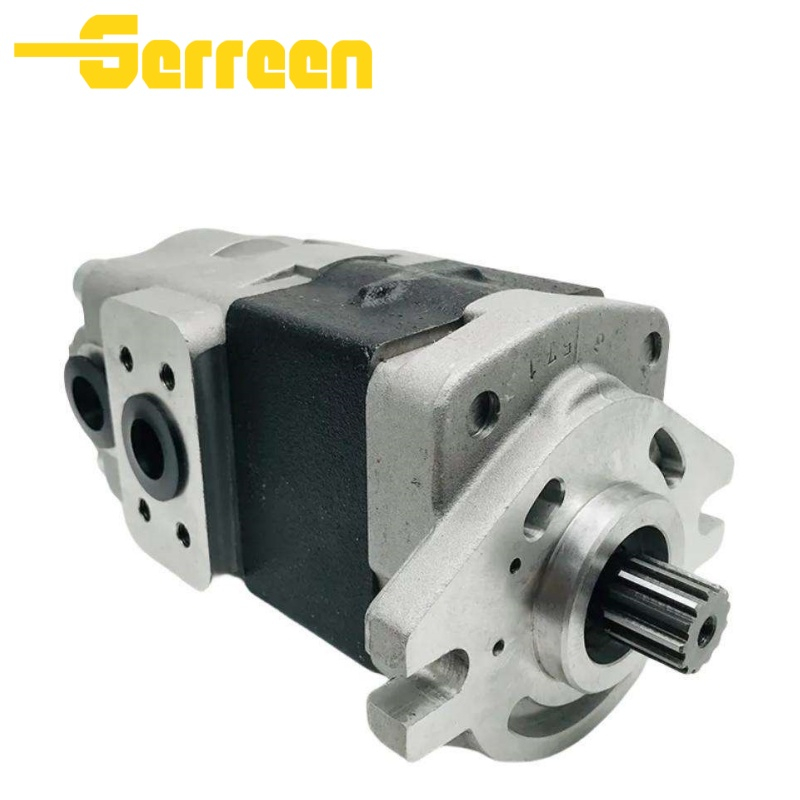

HPV35 Charge Pump
Green Hydraulic
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
spline shaft
1 set
Product Description
The HPV35 Charge Pump functions as an important low-pressure oil supply unit in hydraulic systems. It is installed on the HPV35 main hydraulic pump and is designed to provide stable charge flow and charge pressure for the main pump. The pump operates based on the principle of volumetric hydraulic transmission. Through the meshing rotation of external gears, the volume of sealed working chambers changes, enabling continuous suction and discharge of hydraulic oil.
The charge pump helps maintain favorable suction conditions for the main pump, supplies oil for hydraulic control circuits, and provides necessary lubrication and cooling for key internal components. When the hydraulic system operates under long-term heavy-load conditions, the charge pump ensures a stable charge pressure supply, helping prevent cavitation and insufficient oil supply. This effectively reduces wear and potential damage to critical components inside the main pump, such as pistons, bearings, and valve plates, ensuring stable and efficient operation of the entire hydraulic system, extending equipment service life, and reducing maintenance costs.
Low Noise & High Efficiency：Optimized gear design ensures smooth operation, low noise, and high volumetric efficiency.
Improve Main Pump Stability：Provides stable charge oil flow to maintain proper lubrication and cooling of the main pump.
Extend Hydraulic System Service Life：Reliable charge oil supply reduces wear and helps extend the lifespan of the hydraulic system.
Multiple Control Options：Compatible with different hydraulic control systems to meet various application requirements.
Specifications
| Type | Model | displacement（cm3） | Shaft Type |
| Gear Pump | HPV35 | other | Spline Shaft |
Applications
Hydraulic drives with high pressure, heavy load, variability, large displacement, long service life, and reliability.
Steel metallurgy and forging machinery
Ceramic and refractory material presses
Shipping and hydroelectric systems
Rubber vulcanization and paper production
Petroleum equipment
Construction and mobile machinery
Railway and tunneling machines
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The HPV35 Charge Pump is designed to provide the necessary hydraulic pressure for controlling variable displacement pumps and hydraulic systems. It ensures stable pilot pressure and reliable lubrication flow for the main pump during operation, helping maintain efficient system performance.
The HPV35 Charge Pump is commonly used in construction and industrial machinery such as excavators, hydraulic drilling equipment, road construction machines, and other heavy-duty hydraulic systems that require consistent pilot pressure and lubrication.
The HPV35 Charge Pump offers several advantages, including high efficiency, stable pressure output, compact design, reliable performance, and long service life. It is also engineered to operate smoothly under demanding working conditions.
The HPV35 Charge Pump is manufactured using high-strength alloy steel and precision-machined components. These materials provide excellent wear resistance, durability, and reliable operation even in high-pressure hydraulic environments.
Yes. The HPV35 Charge Pump is designed to be compatible with many OEM hydraulic pump systems. It can often be used as a replacement component while maintaining similar performance and installation dimensions.
Regular maintenance includes checking hydraulic oil cleanliness, inspecting seals and connections, and ensuring proper lubrication. Maintaining clean hydraulic fluid and performing periodic inspections will help extend the pump’s service life.
Common signs include unstable hydraulic pressure, unusual noise, reduced system performance, excessive heat generation, or visible leakage. If these symptoms occur, the pump should be inspected by a qualified technician.
Yes. The HPV35 Charge Pump is designed to operate reliably under high-load and continuous-duty conditions. Its robust internal structure allows it to maintain consistent performance even in demanding industrial applications.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
Charge Pump FAQ
A: No, it is integrated with the main pump and does not require separate installation. When replacing, ensure that the spline shaft is accurately aligned with the main pump drive shaft, tighten the fixing screws with a torque wrench, keep the contact surface flat and free of impurities, and use a seal ring of the correct size to ensure sealing performance.
2.What preparations are needed before starting the Charge Pump for the first time?
A: Manually fill the charge pump with clean hydraulic oil through the drain port to empty the internal air and avoid dry running damage. Jog start several times to confirm that the rotation direction is clockwise (when viewed from the shaft end), and there is no abnormal sound or oil leakage before formal operation. In addition, manually turn the main shaft to check the self-priming condition of the charge pump.
3.What are the requirements for hydraulic oil when using the Charge Pump?
A: The cleanliness of hydraulic oil must meet the ISO 18/15 standard, and the oil temperature should be kept between 15–65℃. It is recommended to regularly replace hydraulic oil and filters; under harsh working conditions such as mines and high dust, the replacement cycle should be shortened to avoid component wear caused by oil pollution.
4. Can the rotation direction of the Charge Pump be reversed? What are the consequences of reverse rotation?
A: No, it cannot be reversed; its rotation direction is the same as that of the main pump. Reverse rotation will cause no oil delivery, system pressure loss, internal gear wear, and even damage to the pump body and the main pump. When installing, pay attention to the chamfer direction of the gear rotor to avoid reverse installation.
5. Is the Charge Pump a dedicated accessory? Can it work normally without it?
A: It is a dedicated charge pump for the main pump and cannot be used universally with other models. The main pump cannot work normally without it, which will cause serious damage to the internal components of the main pump and affect the service life of the entire hydraulic system.
6.Can the displacement of the Charge Pump be replaced arbitrarily?
A: No, it cannot. The standard displacement is matched to the system requirements of the host equipment. Replacing it with an unapproved displacement (either smaller or larger) will lead to insufficient oil supply or excessive pressure, which may cause system failure or component damage. The appropriate displacement should be selected strictly according to the actual working conditions and system design parameters of the equipment.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
