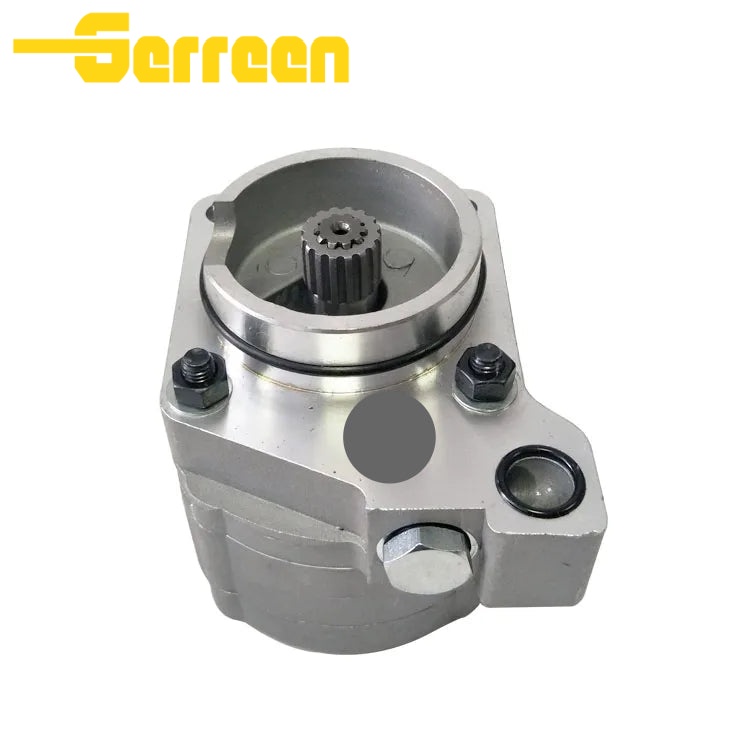

A8V0107 Charge Pump
Green Hydraulic
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
spline shaft
1 set
Product Description
The A8V0107 Charge Pump functions as an important low-pressure oil supply unit in hydraulic systems. It is designed to provide the main pump with stable charge flow and charge pressure. The pump operates based on the principle of volumetric hydraulic transmission, where the meshing rotation of external gears changes the volume of sealed working chambers, enabling continuous suction and discharge of hydraulic oil.
The charge pump helps maintain favorable suction conditions for the main pump, supplies oil for system control circuits, and provides necessary lubrication and cooling for key internal components. When the main pump high-pressure circuit operates under long-term high-pressure and heavy-load conditions, the charge pump ensures a stable charge pressure supply, helping prevent cavitation and insufficient oil supply. This reduces wear and potential damage to critical components such as the pistons, bearings, and valve plate, ensuring stable and efficient operation of the entire hydraulic system, extending equipment service life, and reducing maintenance costs.
Medium-Load & High-Efficiency Adaptability: With a standard displacement of 8.6 cm³/rev, it provides stable and efficient flow output, perfectly meeting the stable pilot control and strong lubrication needs of 18–25 ton class medium-heavy machinery. It is fully adapted to the 350 bar high-pressure working condition of the A8VO107 main pump, with strong anti-cavitation ability, effectively avoiding vibration and pressure abnormality caused by cavitation, and ensuring continuous medium-load operation in mines, infrastructure and other harsh environments.
Integrated Design & High Reliability: Integrated with the A8VO107 main pump, coaxial drive ensures high transmission efficiency and compact structure, which is perfectly adapted to the limited installation space of medium-heavy equipment. The built-in pilot relief valve stably maintains the pilot pressure at 4.8 MPa, effectively preventing system overpressure damage and internal parts wear; an additional pressure reduction valve can be optionally configured to meet the needs of multi-circuit control. The quenched alloy steel gear and ductile iron casing have excellent wear resistance and impact resistance, ensuring long service life and low failure rate under medium load and high-vibration working conditions.
Multi-Functional Integration & System Protection: It integrates three core functions: serving as the pilot control pressure source (driving multi-way valves, main pump regulators, travel/rotary motors and other executive components), providing forced lubrication for internal parts of the main pump (plungers, slippers, valve plates), and replenishing oil to prevent cavitation. It is an indispensable core component for the normal operation of the A8VO107 main pump, effectively reducing the failure rate caused by internal parts wear and hydraulic oil pollution. The integrated design also optimizes the hydraulic circuit layout, reducing pipeline connections and potential oil leakage points.
Strong Compatibility & Easy Maintenance: It is 100% interchangeable with the original Rexroth A8VO107 main pump, and is widely compatible with mainstream medium-heavy machinery models such as Caterpillar E320B/E325B, Sunward rotary drilling rigs, XCMG medium-sized excavators and Doosan DH220/DH250. The standardized design ensures convenient disassembly and assembly; daily maintenance only needs to check the oil cleanliness, oil level and seal integrity, clean the pump body regularly, and avoid medium solidification, which is simple and efficient, reducing equipment downtime and maintenance costs
High Adaptability to Working Conditions: It adopts a robust structural design, which can adapt to harsh working environments such as high temperature, high dust and high vibration in mines, construction sites and earthmoving operations. The hydraulic oil temperature adaptation range is 15–65℃, and the oil cleanliness requirement is ≥ ISO 18/15, which can maintain stable performance under complex working conditions, avoid jamming and pressure abnormality, and ensure the reliability of the entire hydraulic system.
Specifications
| Type | Model | displacement（cm3） | Shaft Type |
| Gear Pump | A8VO107 | other | Spline Shaft |
Applications
Hydraulic drives with high pressure, heavy load, variability, large displacement, long service life, and reliability.
Steel metallurgy and forging machinery
Ceramic and refractory material presses
Shipping and hydroelectric systems
Rubber vulcanization and paper production
Petroleum equipment
Construction and mobile machinery
Railway and tunneling machines
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
Charge Pump FAQ
A: No, it is integrated with the main pump and does not require separate installation. When replacing, ensure that the 10-tooth spline shaft is accurately aligned with the main pump drive shaft, tighten the fixing screws with a torque wrench, keep the contact surface flat and free of impurities, and use a seal ring of the correct size to ensure sealing performance.
2.What preparations are needed before starting the Charge Pump for the first time?
A: Manually fill the charge pump with clean hydraulic oil through the drain port to empty the internal air and avoid dry running damage. Jog start several times to confirm that the rotation direction is clockwise (when viewed from the shaft end), and there is no abnormal sound or oil leakage before formal operation. In addition, manually turn the main shaft to check the self-priming condition of the charge pump.
3.What are the requirements for hydraulic oil when using the Charge Pump?
A: The cleanliness of hydraulic oil must meet the ISO 18/15 standard, and the oil temperature should be kept between 15–65℃. It is recommended to regularly replace hydraulic oil and filters; under harsh working conditions such as mines and high dust, the replacement cycle should be shortened to avoid component wear caused by oil pollution.
4. Can the rotation direction of the Charge Pump be reversed? What are the consequences of reverse rotation?
A: No, it cannot be reversed; its rotation direction is the same as that of the main pump. Reverse rotation will cause no oil delivery, system pressure loss, internal gear wear, and even damage to the pump body and the main pump. When installing, pay attention to the chamfer direction of the gear rotor to avoid reverse installation.
5. Is the Charge Pump a dedicated accessory? Can it work normally without it?
A: It is a dedicated charge pump for the main pump and cannot be used universally with other models. The A8VO160 main pump cannot work normally without it, which will cause serious damage to the internal components of the main pump and affect the service life of the entire hydraulic system.
6.Can the displacement of the Charge Pump be replaced arbitrarily?
A: No, it cannot. The standard displacement is 12 cm³/rev; replacing it with other displacements (10/14 cm³/rev) without authorization will lead to insufficient or too high pilot pressure, abnormal lubrication flow, and early wear of the main pump. The displacement should be selected according to the actual working conditions of the equipment.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
