K3SP36B Charge Pump
Green Hydraulic
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
spline shaft
1 set
Product Description

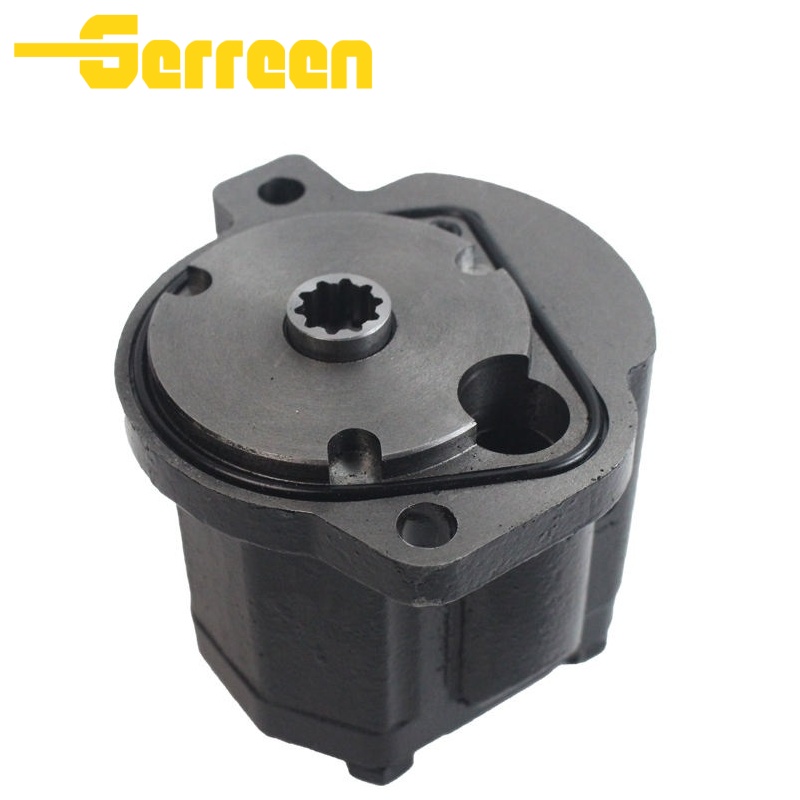

K3SP36B Charge Pump functions as an important low-pressure oil supply unit in hydraulic systems. It is installed on the K3SP36B main hydraulic pump and is designed to provide stable charge flow and charge pressure for the main pump. The pump operates based on the principle of volumetric hydraulic transmission. Through the meshing rotation of external gears, the volume of sealed working chambers changes, enabling continuous suction and discharge of hydraulic oil.
The charge pump helps maintain favorable suction conditions for the main pump, supplies oil for hydraulic control circuits, and provides necessary lubrication and cooling for key internal components. When the hydraulic system operates under long-term heavy-load conditions, the charge pump ensures a stable charge pressure supply, helping prevent cavitation and insufficient oil supply. This effectively reduces wear and potential damage to critical components inside the main pump, such as pistons, bearings, and valve plates, ensuring stable and efficient operation of the entire hydraulic system, extending equipment service life, and reducing maintenance costs.
Built with quenched and tempered alloy steel
Yield strength around 850 MPa
Strong resistance to deformation and wear
Gears are precision-machined with ±0.003 mm tolerance
Reduces internal leakage
Improves hydraulic efficiency
This precision helps increase system efficiency and maintain stable pressure output.
Triple-sealing structure
High-quality fluoro seals
Prevents oil leakage and contamination
This design reduces maintenance needs and increases reliability.
Dynamic balancing of gears
Vibration amplitude below 0.6 mm/s
Noise level around ≤ 68 dB(A)
This improves operator comfort and equipment stability during operation.
Supports multiple mounting orientations
Easy integration with different hydraulic systems
This flexibility allows it to be used in various machinery configurations.
Specifications
| Type | Model | displacement（cm3） | Shaft Type |
| Gear Pump | K3SP36B | other | Spline Shaft |
Applications
Hydraulic drives with high pressure, heavy load, variability, large displacement, long service life, and reliability.
Steel metallurgy and forging machinery
Ceramic and refractory material presses
Shipping and hydroelectric systems
Rubber vulcanization and paper production
Petroleum equipment
Construction and mobile machinery
Railway and tunneling machines
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
