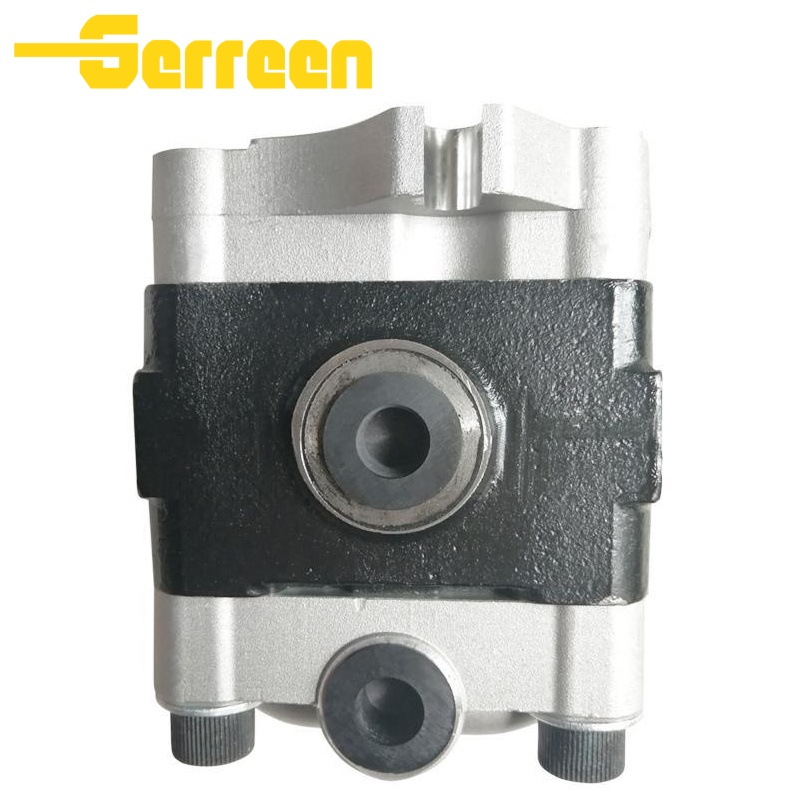

PVD-1B-10G5 Charge Pump
Green Hydraulic
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
spline shaft
1 set
Product Description
PVD-1B-10G5 Charge Pump is a high-reliability fixed-displacement external gear hydraulic auxiliary component designed for small hydraulic systems. It is mainly used to provide stable charge oil supply, maintain proper inlet pressure for the main pump, and support lubrication and cooling of key internal components.
The pump operates based on the principle of volumetric hydraulic transmission. Through the meshing rotation of external gears, the volume of sealed working chambers changes continuously, enabling stable suction and discharge of hydraulic oil. This ensures consistent charge pressure and helps maintain favorable suction conditions for the main pump.
The charge pump is designed for compatibility with PVD-1B axial piston pumps, providing stable oil supply for control circuits and helping prevent cavitation and insufficient oil supply during long-term heavy-load operation.
With a compact structure, stable performance, low noise, and easy maintenance, it is widely used in 3–6 ton excavators and other small hydraulic equipment. The product can directly replace original parts, effectively reducing maintenance costs and equipment downtime, and is widely applied in construction machinery, agricultural machinery, and other hydraulic systems.
Strong Versatility & High Compatibility: Specially developed for NACHI PVD-1B series axial piston main pumps, it is perfectly suitable for 3–6 ton small excavators and other small hydraulic equipment. It adopts a standardized mounting interface and special spline shaft design for the G5 version. It is 100% interchangeable with original spare parts, with easy disassembly and assembly, and strong universality in maintenance and replacement.
Stable Performance & Reliable Operation: Adopting high-quality ductile iron casing and quenched alloy steel gears, it has excellent wear resistance, impact resistance and high temperature resistance, and can adapt to high dust, high vibration and long-term continuous working conditions. The built-in charge relief valve stably controls pilot pressure at 3.0–3.6 MPa, effectively preventing system overpressure and ensuring stable operation under long-term light-medium load.
Multi-Functional Integration & System Protection: It integrates three core functions: pilot control pressure supply, forced lubrication, and oil replenishment. It shares a common suction port with the main pump circuit, optimizes oil supply efficiency, effectively compensates for oil leakage, prevents cavitation, reduces wear of precision components, and extends the service life of the main pump and hydraulic system.
Compact Structure & Excellent Adaptability: With integrated and compact design, it is small in size and lightweight, perfectly matching the limited installation space of small hydraulic equipment such as 3–6 ton mini excavators. It can be directly mounted on the main pump without extra space, with high integration and strong adaptability.
Low Noise & Easy Maintenance: Optimized gear meshing and precision machining lower operating noise to ≤ 68 dB, providing a quieter working environment. Standardized structure makes daily maintenance simple: only regular inspection of oil cleanliness, oil level and seals, pump cleaning and filter replacement are needed. Long service life reaches more than 2200 working hours, effectively reducing maintenance cost and downtime.
Specifications
| Type | Model | displacement（cm3） | Shaft Type |
| Gear Pump | PVD-1B-10G5 | other | Spline Shaft |
Applications
Hydraulic drives with high pressure, heavy load, variability, large displacement, long service life, and reliability.
Steel metallurgy and forging machinery
Ceramic and refractory material presses
Shipping and hydroelectric systems
Rubber vulcanization and paper production
Petroleum equipment
Construction and mobile machinery
Railway and tunneling machines
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
Charge Pump FAQ
A: No, it is integrated with the main pump and does not require separate installation. When replacing, ensure that the spline shaft is accurately aligned with the main pump drive shaft, tighten the fixing screws with a torque wrench, keep the contact surface flat and free of impurities, and use a seal ring of the correct size to ensure sealing performance.
2.What preparations are needed before starting the Charge Pump for the first time?
A: Manually fill the charge pump with clean hydraulic oil through the drain port to empty the internal air and avoid dry running damage. Jog start several times to confirm that the rotation direction is clockwise (when viewed from the shaft end), and there is no abnormal sound or oil leakage before formal operation. In addition, manually turn the main shaft to check the self-priming condition of the charge pump.
3.What are the requirements for hydraulic oil when using the Charge Pump?
A: The cleanliness of hydraulic oil must meet the ISO 18/15 standard, and the oil temperature should be kept between 15–65℃. It is recommended to regularly replace hydraulic oil and filters; under harsh working conditions such as mines and high dust, the replacement cycle should be shortened to avoid component wear caused by oil pollution.
4. Can the rotation direction of the Charge Pump be reversed? What are the consequences of reverse rotation?
A: No, it cannot be reversed; its rotation direction is the same as that of the main pump. Reverse rotation will cause no oil delivery, system pressure loss, internal gear wear, and even damage to the pump body and the main pump. When installing, pay attention to the chamfer direction of the gear rotor to avoid reverse installation.
5. Is the Charge Pump a dedicated accessory? Can it work normally without it?
A: It is a dedicated charge pump for the main pump and cannot be used universally with other models. The main pump cannot work normally without it, which will cause serious damage to the internal components of the main pump and affect the service life of the entire hydraulic system.
6.Can the displacement of the Charge Pump be replaced arbitrarily?
A: No, it cannot. The standard displacement is 12 cm³/rev; replacing it with other displacements (10/14 cm³/rev) without authorization will lead to insufficient or too high pilot pressure, abnormal lubrication flow, and early wear of the main pump. The displacement should be selected according to the actual working conditions of the equipment.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
