RFB series miniature direct return oil filters
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Product Description

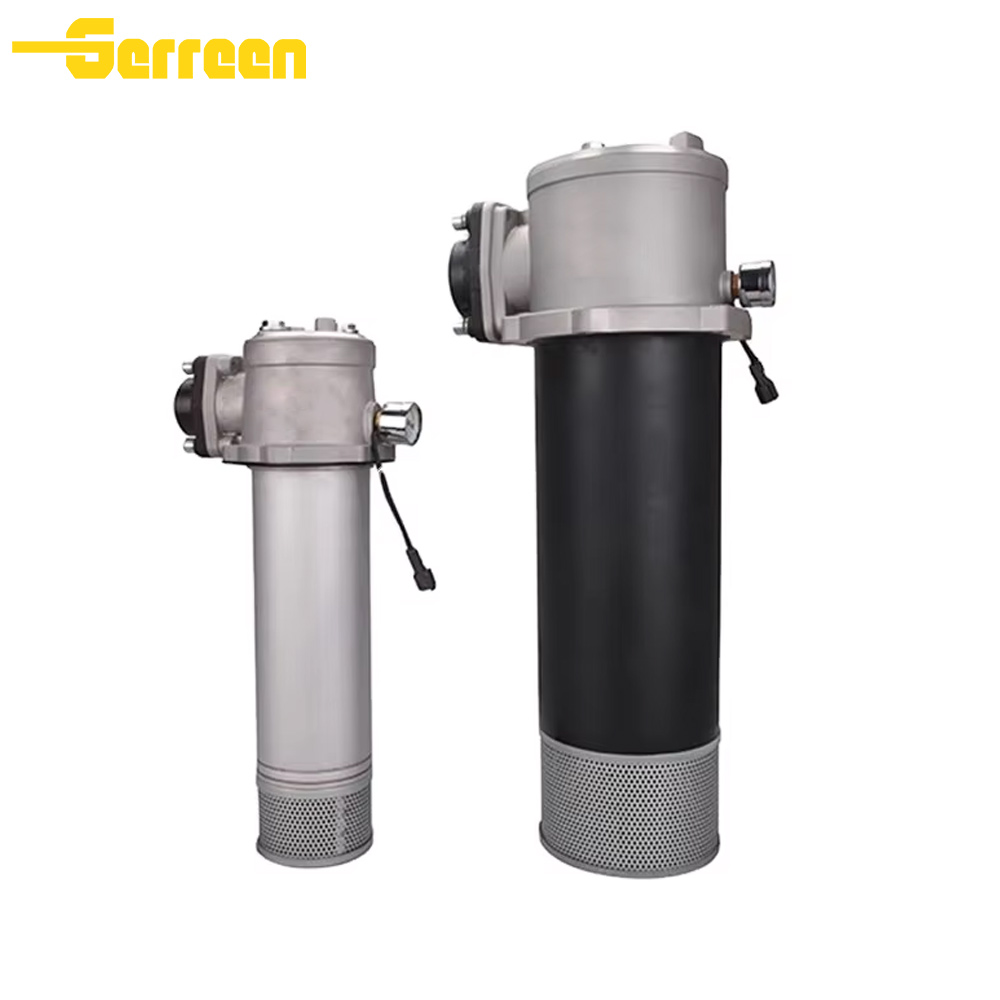

The RFB series miniature direct return oil filter is an advanced hydraulic filtration component that features a magnetic element and a check valve in addition to standard return filter features like a bypass valve and contamination indicator. These enhancements provide superior contamination control, particularly of fine ferrous particles, and allow for flexible installation options on the top, side, or bottom of the hydraulic tank.
Key Features of RFA series miniature direct return oil filters
Magnetic Element: Built-in permanent magnet efficiently attracts small ferromagnetic contaminants that are difficult for the main filter element to capture.
Check Valve: Integrated check valve at the bottom supports top, side, or bottom mounting on the oil tank, preventing oil leakage during filter element replacement.
High-Efficiency Filter Element: Primarily uses glass fiber filter material, offering high filtration accuracy (1 to 30 microns selectable) and strong dirt-holding capacity.
Safety Features:
Bypass Valve: Automatically opens when the filter element is clogged (0.4 MPa), preventing system oil starvation.
Contamination Indicator: Provides visual or electrical signals to indicate when the filter element needs replacement.
Maintenance and Structure: Features a dirt collection cup to prevent contaminants from falling back into the oil tank during filter element replacement; a liquid diffuser ensures smooth oil return and reduces air bubbles.
Application
Heavy Machinery and Engineering:
Excavators, cranes, bulldozers, loaders, and other construction vehicles effectively remove wear-generated iron filings and dust in harsh environments.
Industrial Manufacturing:
Injection molding machines, die-casting machines, large hydraulic presses, and automated production lines. Magnetic components are particularly adept at capturing fine metal debris generated during precision machining.
Mining and Metallurgy:
Mining equipment, rolling mill systems in steel plants, continuous casting machines, etc., address pollution control under heavy load and high-temperature conditions.
Wind Power Generation:
Pitch and yaw control systems of wind turbines ensure the cleanliness of hydraulic oil, guaranteeing stable equipment operation.
Oil and Petrochemical:
Drilling platforms and hydraulic control units in refineries meet the fluid purification needs under complex working conditions.
Marine and Offshore Engineering:
Ship hydraulic steering gears and deck machinery; their flexible installation methods are particularly suitable for the limited space in ship cabins.
Filter are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All Filter are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
We are a manufacture for Filter。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
