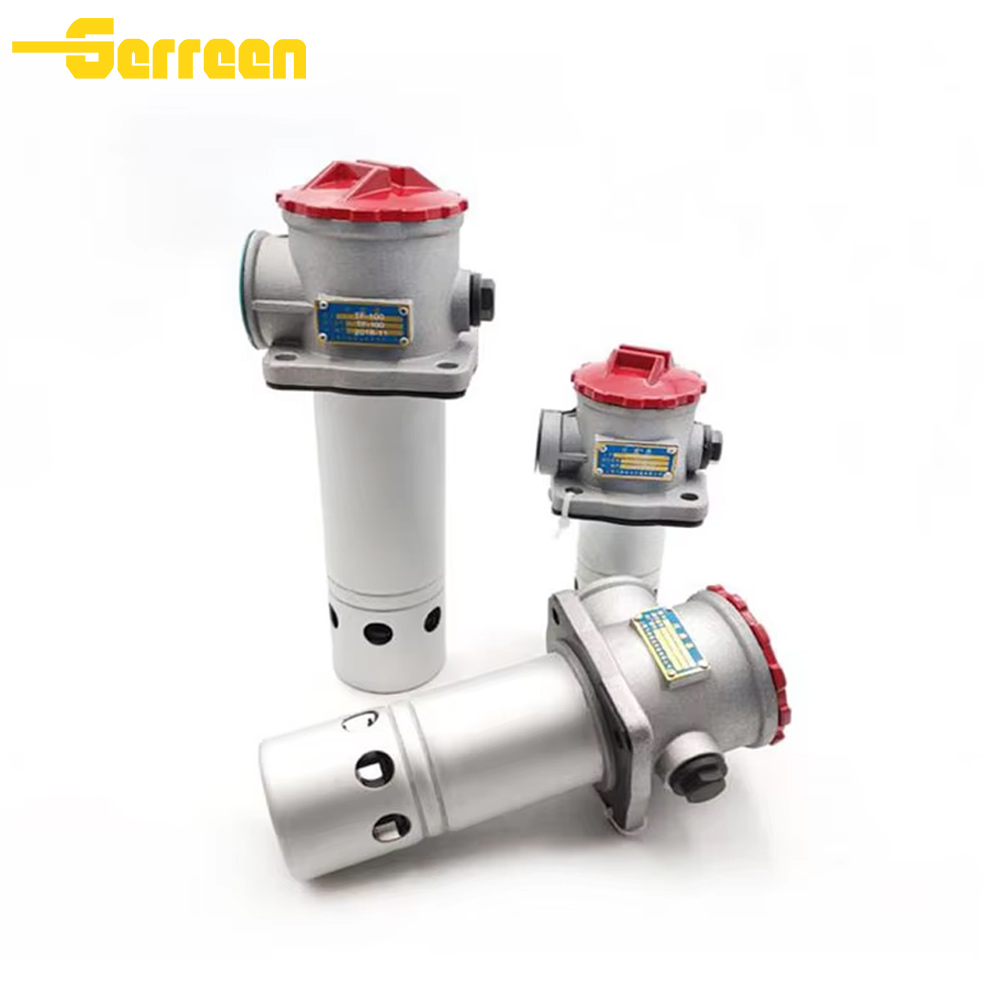

TFA Series Oil Suction Filters
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Product Description
The TFA series suction filter is an important component in hydraulic systems, primarily installed at the suction port of the oil pump to protect the oil pump and other hydraulic components from contaminants. Similar to the TF series, the TFA series filter does not have a self-sealing valve and can only be installed on the upper part of the oil tank, with the suction cylinder submerged below the oil level in the tank.
Key Features of TFA Series Oil Suction Filters
No Self-Sealing Valve: This is the main difference between the TFA and TF series. Due to the lack of a self-sealing valve, this filter can only be installed on the top of the oil tank. When replacing the filter element, the oil circuit cannot be automatically sealed, requiring the oil tank to be drained or an external shut-off valve to be used.
Installation Position: Can only be installed on the top of the oil tank, with the filter head (top connection part) exposed outside the oil tank for easy installation and maintenance.
Bypass Valve: Built-in bypass valve that automatically opens when the filter element is clogged or the oil viscosity is too high (vacuum reaches 0.02 MPa) to ensure normal oil suction by the oil pump and prevent cavitation.
Contamination Indicator: Optional visual or electrical signaling device is available, providing a signal when the vacuum reaches a preset value (e.g., 0.018 MPa) to indicate that the filter element needs cleaning or replacement.
Filtering Material: Typically uses stainless steel woven mesh, with a filtration accuracy range of 80 to 180 micrometers (µm).
Low Flow Resistance: As a suction filter, its design focuses on low pressure loss to ensure that the oil pump can smoothly draw in the oil.
Application
Heavy Machinery: Extensively used in the hydraulic systems of excavators, cranes, bulldozers, and mining machinery to filter out large debris and particles that might otherwise damage the pump in demanding operational environments.
Metallurgy and Steel Production: Integrated into the hydraulic and lubrication systems of rolling mills and continuous casting machines to manage contamination inherent in heavy industrial processes.
Manufacturing: Found in general industrial machinery, such as machine tools and automated production lines, where maintaining a baseline level of fluid cleanliness is critical for operational reliability and component longevity.
Power Generation: Employed in hydraulic control systems within power plants (both thermal and nuclear) where reliable operation of control valves and actuators is critical.
Agriculture: Safeguards the hydraulic systems in tractors, combines, and irrigation equipment from the soil, moisture, and organic debris encountered in farming operations.
Filter are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All Filter are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
We are a manufacture for Filter。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
