V15 Piston Pump
Green Hydraulic
Standard
1 set
Right hand or Left hand
1.Machine tools 2.Injection molding machines 3.Forging presses 4.Hydraulic presses
straight key shaft and spline shaft
Product Description

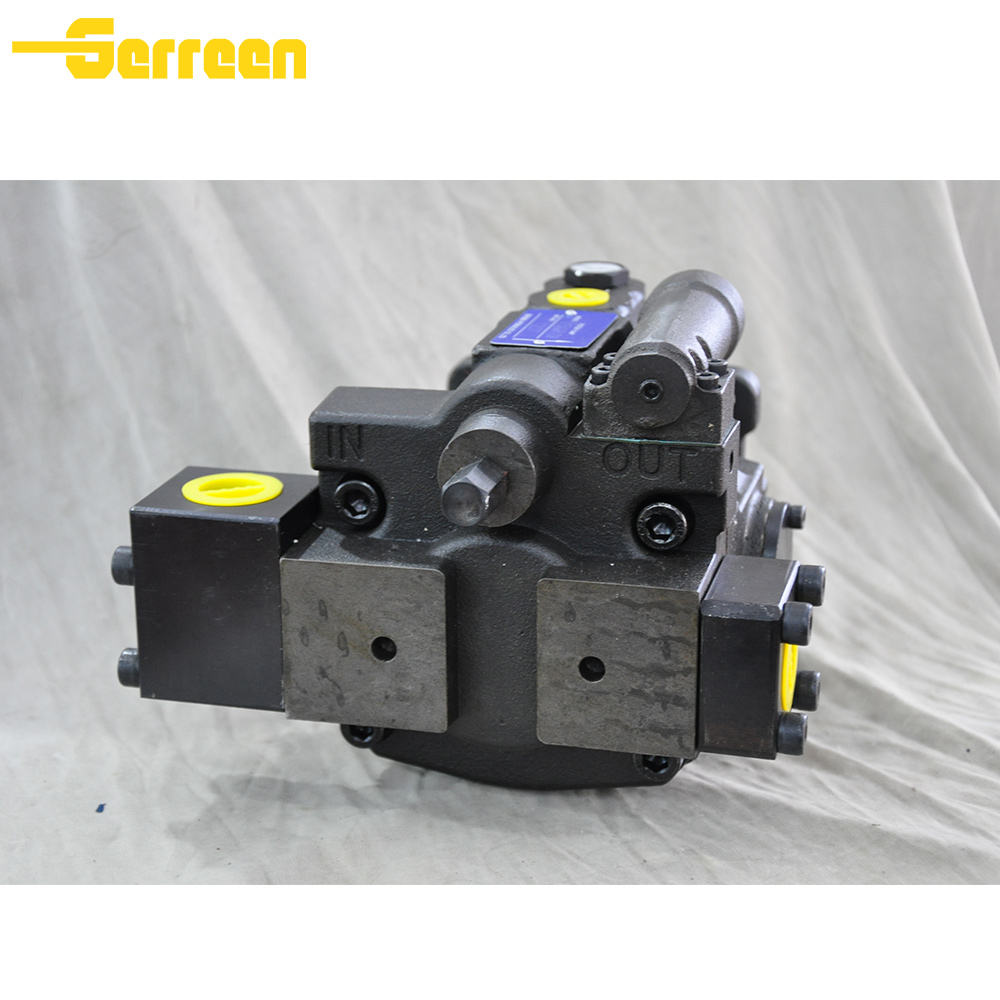

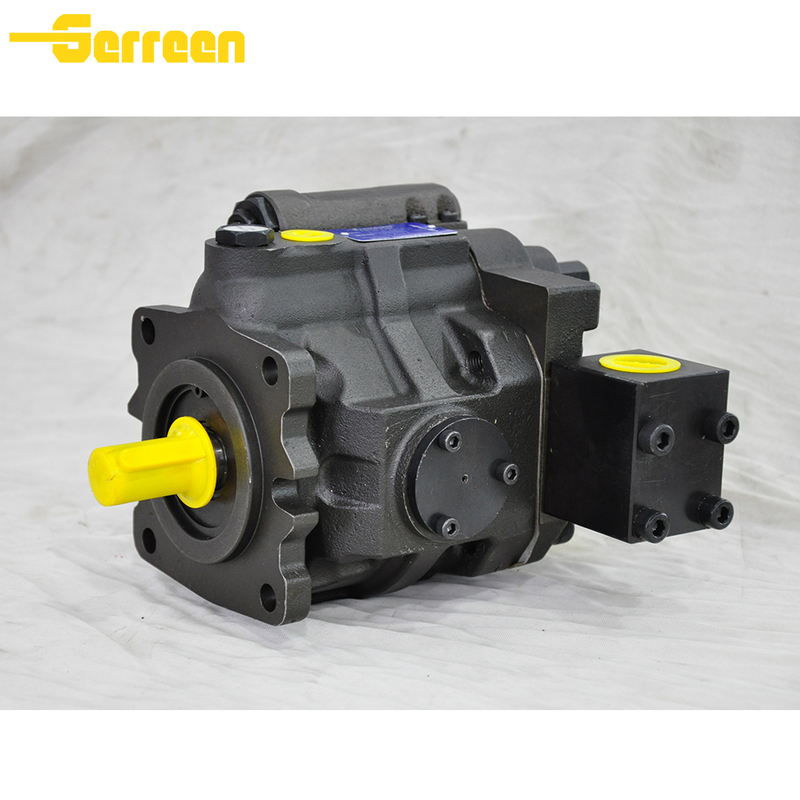

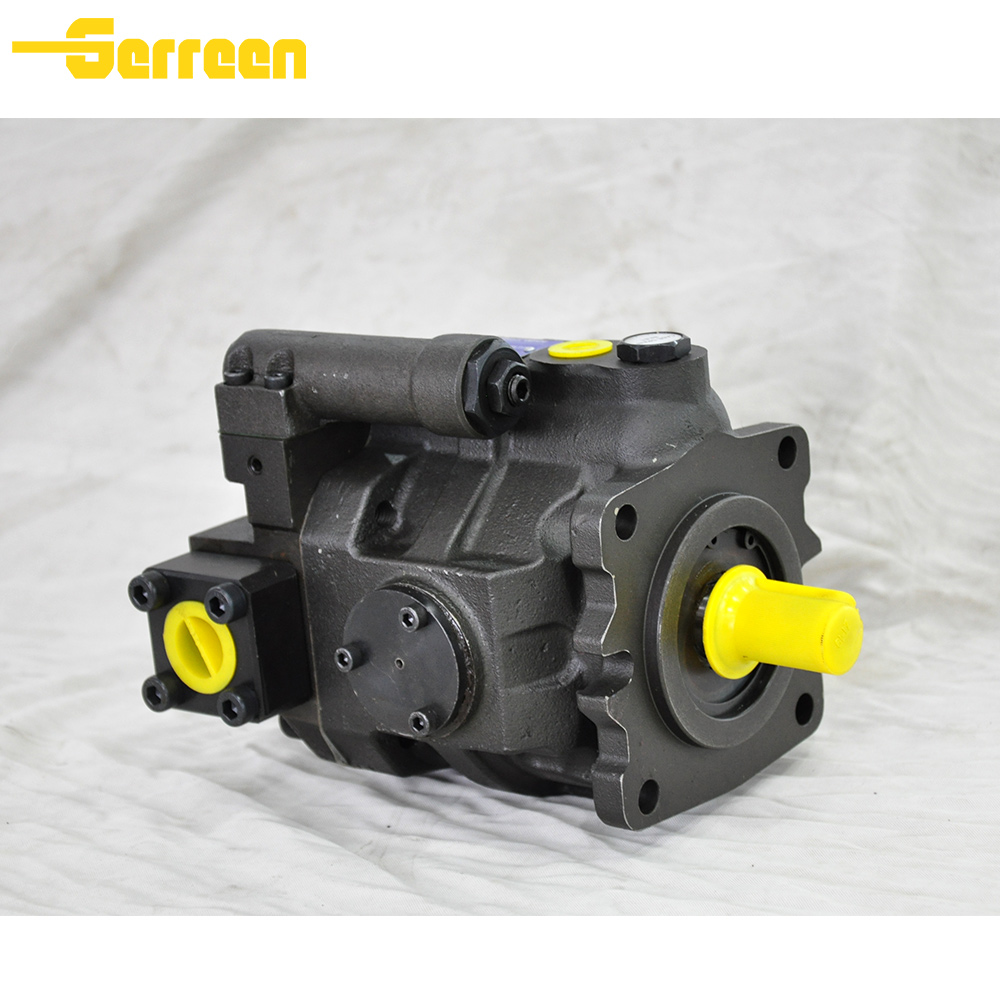

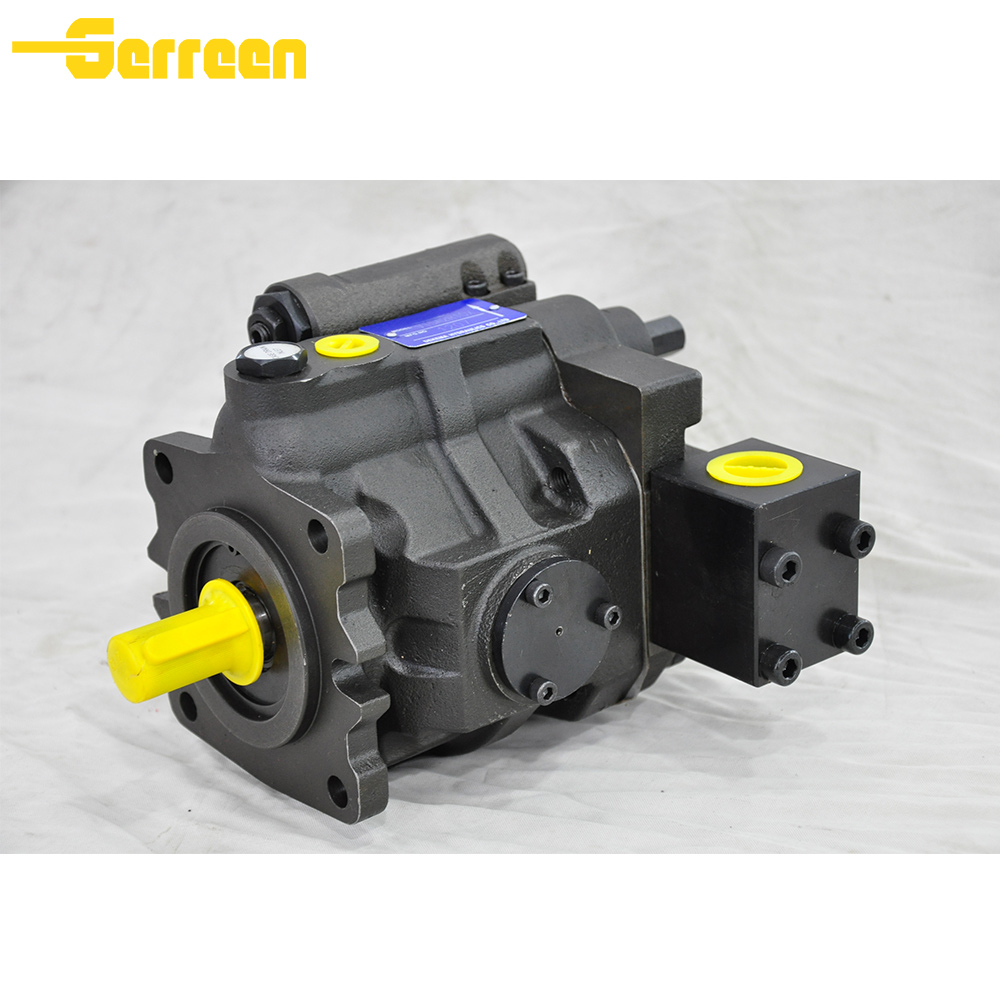

The V15 Series piston pump is a high-performance variable displacement pump specifically designed for open circuit applications. This pump provides superior energy efficiency, low noise levels, and durability in challenging industrial environments. The V15 pump's features make it ideal for a range of applications, including hydraulic power units, construction machinery, and mobile equipment.
Low Noise Operation: Designed with noise reduction technology to ensure quieter performance, making it ideal for noise-sensitive environments.
High Efficiency: Maximizes energy savings by maintaining efficient flow and pressure control during operation.
Durable Construction: Built to handle high-pressure systems, ensuring long service life even under demanding conditions.
Variable Displacement: Adjusts displacement based on system demand, offering flexibility and enhanced control in hydraulic circuits.
Compact Design: Smaller footprint compared to other high-capacity pumps, providing space-saving benefits in tight applications.
The V15 Series piston pump is an excellent choice when you need high performance, precision, and reliability. It's engineered to operate seamlessly across a wide range of industrial and mobile applications.
| Specification | Detail |
|---|---|
| Theoretical Discharge Rate | 14.8 cm³/rev |
| Maximum Operating Pressure | 21 MPa {210 bar} |
| Permissible Rotational Speed | 500 to 1800 rpm |
| Discharge Rate Adjustment Range | 4.5 to 26.6 L/min (at 1800 rpm, axial port) |
| Weight | 12.8 kg (axial port, with control method A) |
Plastic Molding Machines: The V15 pump is widely used in the hydraulic systems of injection molding machines, and its precise flow and pressure control capabilities help improve production efficiency and product quality.
Machine Tools: In various machine tools, the V15 pump provides stable hydraulic power and precise control, ensuring the accuracy and stability of the machining process.
Forging Machinery / Press Machines: Due to its high-pressure output and durability, the V15 pump is suitable for demanding forging and stamping equipment, capable of withstanding heavy loads and high operating pressures.
Hydraulic Power Units: The V15 pump is often integrated as a core component of hydraulic power units (such as Daikin's EHU and SUT series), providing power for various automation and control systems.
General Industrial Machinery: With its compact structure, low power consumption, and low oil temperature rise characteristics, the V15 pump is suitable for a variety of general industrial applications.
Piston pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All vane pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The V15 is a variable displacement axial piston pump primarily used in industrial hydraulic systems that require precise control of flow and pressure, such as plastic injection molding machines, CNC machinery, and forging presses.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
