K5V212DPH
Green Hydraulic
Yes
ISO9001，CE
Standard
1 set
Left-hand Rotation or Right-hand Rotation
Medium-to-large excavators,Rotary drilling rigs,Mining dump trucks and heavy loaders
straight key shaft and spline shaft
Product Description

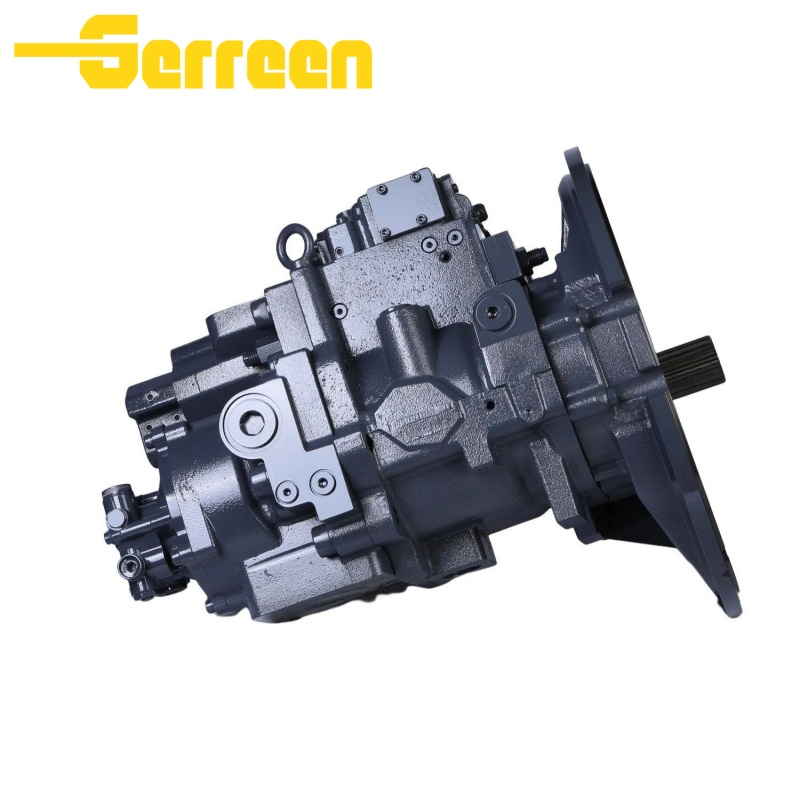

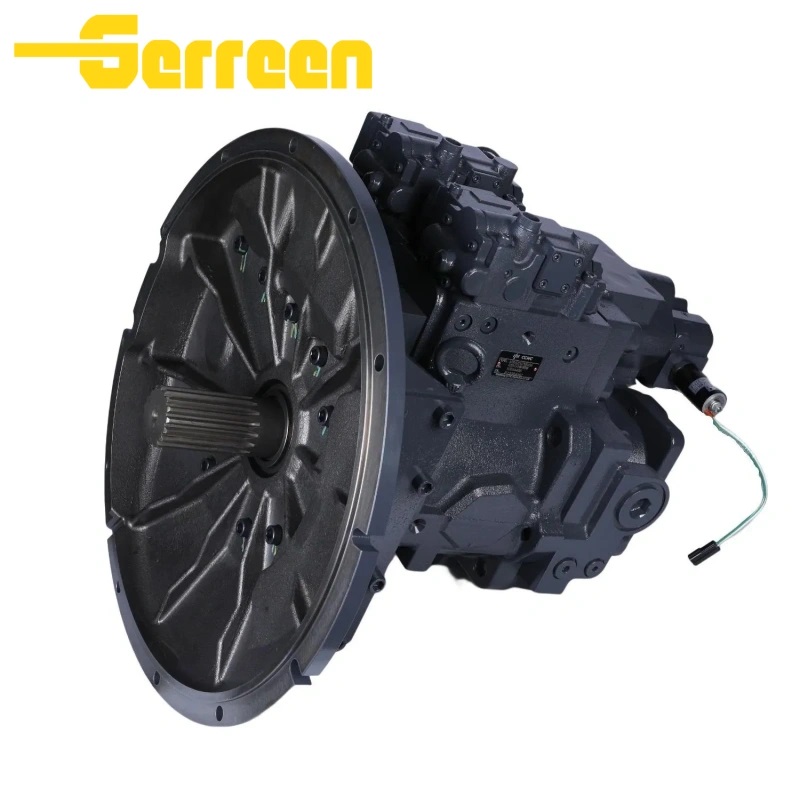

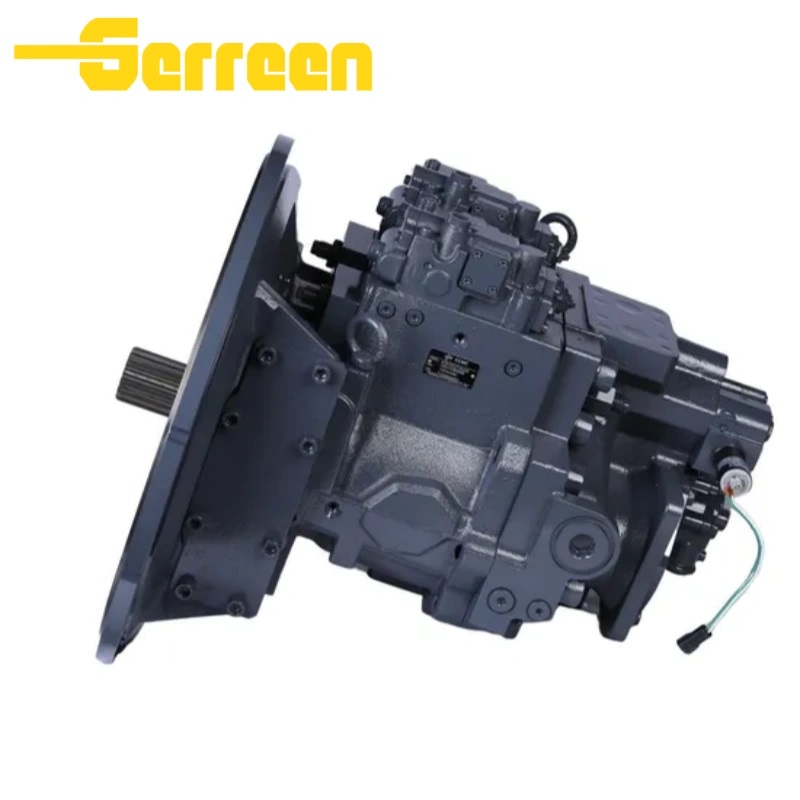

The k5V212DPH axial piston variable displacement hydraulic pump is a more affordable alternative to the original, a high-precision power component for hydraulic systems, belonging to variable displacement type, mainly used in 35MPa rated pressure and 40MPa max pressure working conditions. It adopts precision machining technology and high-quality materials, with the characteristics of high volumetric efficiency, strong pressure resistance, stable operation and long service life. As a core power source of hydraulic systems, K7V125DTP is widely used in various industrial and engineering fields such as construction machinery and industrial equipment, and can be finely adjusted according to the specific requirements of customers' hydraulic circuits and host equipment, providing reliable power support for the stable operation of the whole system.
Large Displacement & High Pressure Performance: With a nominal displacement of 212 cm³/rev, a rated pressure of 350 bar, and a peak pressure of 400 bar, it delivers ample hydraulic power to support simultaneous multi-action operations (e.g., excavator boom, arm, and swing movements) in heavy-duty machinery.
Robust & Durable Structure:Features Kawasaki's optimized swashplate, piston, and cylinder block design, with enhanced wear resistance and impact durability. It excels in harsh environments such as mining and construction sites, ensuring stable operation under heavy loads and extending service life.
Easy Installation & Maintenance:K7V125DTP adopts compact structural design, with reasonable layout of installation interface and shaft end structure, which is convenient for integration into various hydraulic systems matching this model; the plug-in design (optional) is adopted, which is convenient for quick replacement and maintenance, reducing the downtime of the equipment.
Specifications
| displacement（cm3） | pressure（Mpa）Rated | pressure（Mpa）Peak | Max Self Priming Speed（min-1） | Structure（single） | Structure（Tandem） | Structure（Parallel） |
| 214 | 34.3 | 39.2 | 2000*1 | ○ | ○ | ○ |
Applications
Excavators
Cranes
Wheel Loaders
Crushers
Crawler Drills/Pile Drivers
Concerte Pumps
Axial piston variable displacement hydraulic pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All axial piston variable displacement hydraulic pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
