When considering the price of an A Series Axial Piston Pump, several key factors come into play, including model size, displacement, control type, and overall system requirements. As a widely used variable displacement pump in industrial hydraulic systems, the A Series offers a balanced combination of performance, durability, and cost-efficiency.

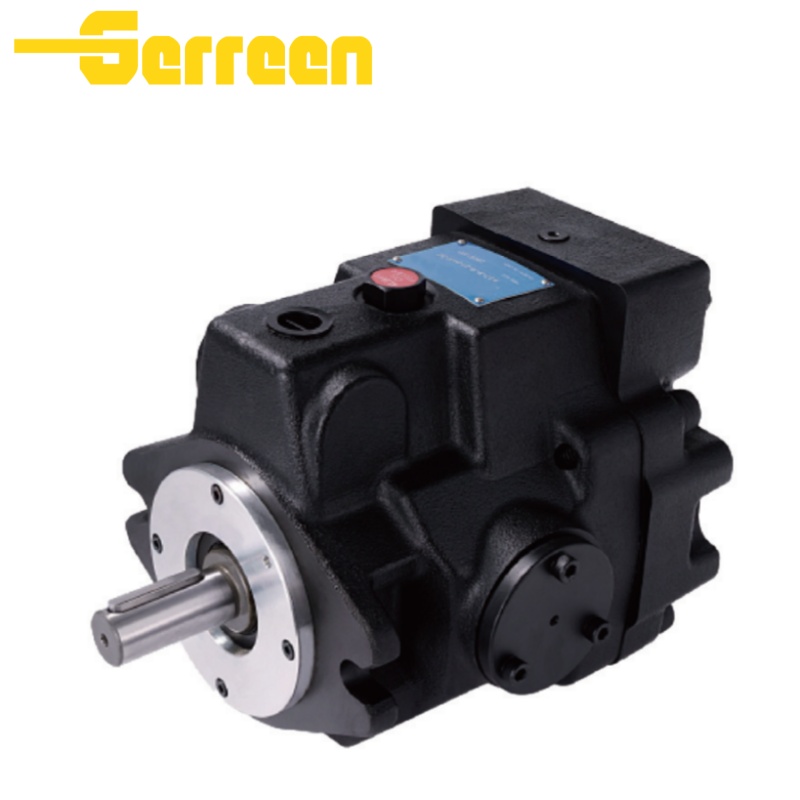

A Series Axial Piston Pump Working Principle

The A Series Axial Piston Pump is a highly efficient and reliable hydraulic component widely used in industrial applications. Its performance is based on a proven working principle that combines precision engineering with flexible flow control, making it an ideal choice for systems requiring stable and energy-efficient hydraulic power.

Basic Working Principle

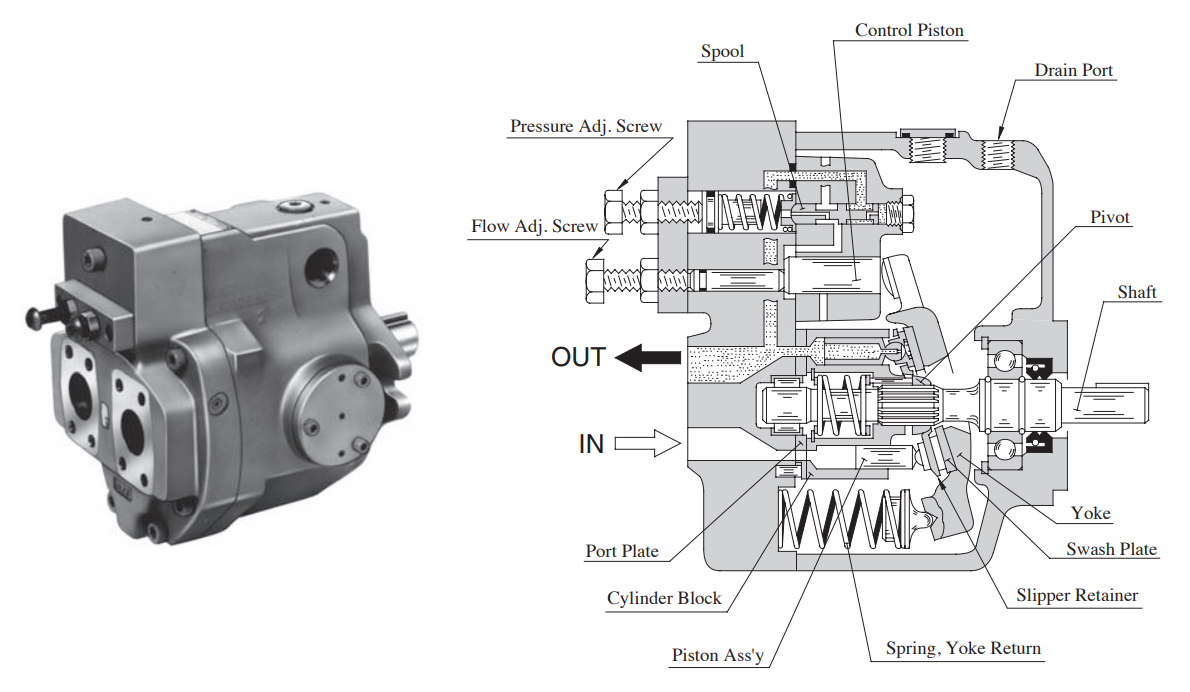

The A Series pump operates on the swash plate axial piston principle. Inside the pump, multiple pistons are arranged in a circular pattern within a rotating cylinder block. As the drive shaft rotates, the cylinder block rotates with it, causing the pistons to move back and forth along the axis.

This reciprocating motion is controlled by a fixed or variable-angle swash plate:

• When the pistons move away from the valve plate, the pump chamber volume increases, creating a vacuum that draws hydraulic fluid into the cylinder (suction phase).

• When the pistons move toward the valve plate, the chamber volume decreases, compressing the fluid and forcing it out into the hydraulic system (discharge phase).

This continuous cycle of suction and discharge generates a steady flow of hydraulic oil.

Variable Displacement Mechanism

One of the key features of the A Series axial piston pump is its variable displacement capability. By adjusting the angle of the swash plate, the stroke length of the pistons changes, which directly affects the output flow:

• Larger swash plate angle → Higher flow rate

• Smaller swash plate angle → Lower flow rate

• Zero angle → No flow output

This allows the pump to deliver only the required amount of fluid, improving energy efficiency and reducing unnecessary power consumption.

Control Methods

The A Series pump supports multiple control mechanisms that regulate the swash plate angle automatically:

• Pressure compensation control – adjusts flow based on system pressure

• Remote control – enables external adjustment

• Combined pressure and flow control – ensures optimal system performance

These control options make the pump highly adaptable to different operating conditions.

Key Advantages of the Working Principle

The design and working principle of the A Series axial piston pump provide several important benefits:

• High efficiency due to precise volumetric control

• Energy saving through demand-based flow adjustment

• Smooth and stable operation with low pulsation

• Low noise levels, suitable for industrial environments

• Long service life thanks to balanced internal forces and durable components

Typical Applications

Based on its working principle and performance characteristics, the A Series axial piston pump is commonly used in:

• Injection molding machines

• Hydraulic presses

• Machine tools

• General industrial hydraulic systems

Conclusion

The working principle of the A Series Axial Piston Pump is centered on the coordinated movement of pistons and the adjustable swash plate mechanism. This design not only ensures precise fluid delivery but also enhances energy efficiency and system reliability. As a result, the A Series remains a preferred solution for industrial hydraulic systems requiring consistent and controllable performance.

Specifications

Model		A10	A16	A22	A37	A56	A70	A90	A100	A145
displacement，max.(cm³)		10	15.8	22.2	36.9	56.2	70	91	100	145
Rated pressure	MPa	16	16	16	16	16	25	25	21	25
Shaft Speed Range r/min	Max	1800	1800	1800	1800	1800	1800	1800	1800	1800
	Min	600	600	600	600	600	600	600	600	600
Approx.Max(kg)	Flange Mtg.	5.1/8.5	16..5	16..5	28	35	58.5	72.5	72.5	92.5
	Foot Mtg.	-	18.7	18.7	32.3	39.3	70.5	93	93	117.7
