K3VG63 K3VG112 K3VG180 K3VG280 K3VG180DT K3VG280DT
Green Hydraulic
Yes
ISO9001，CE
Commercial Vehicles, Construction Machinery, Industrial Applications
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

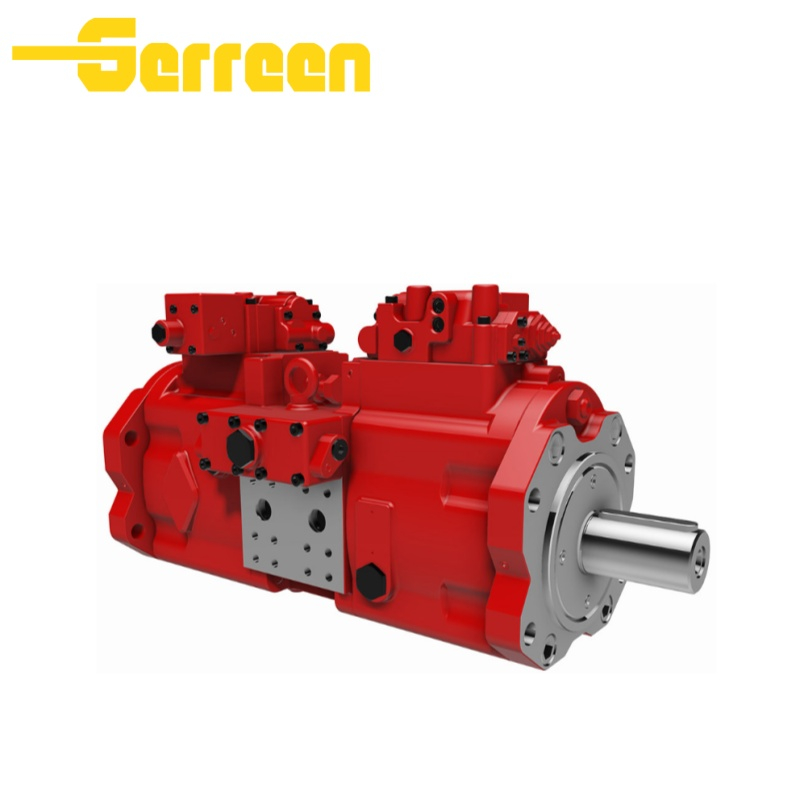

The K3VG Series axial piston pump is a high-performance, swash plate type variable displacement pump designed for heavy-duty hydraulic systems. It is widely used in construction machinery and mobile equipment, delivering high pressure, high efficiency, and reliable operation under demanding working conditions.
The flow rate of a piston pump is one of the most critical parameters in determining overall hydraulic system performance. For the K3VG Series axial piston pump, flow rate is precisely controlled through its advanced variable displacement design, ensuring optimal efficiency, power output, and system responsiveness in demanding applications.
Looking for a reliable and high-performance piston pump for sale? The K3VG Series axial piston pump is an excellent choice for customers who demand high pressure, durability, and efficiency in heavy-duty hydraulic applications. Designed for construction machinery and mobile equipment, the K3VG Series delivers outstanding performance even under the most demanding working conditions.
Reliable, High Pressure, Long Life Modular Design.
Low Noise and High Efficiency.
Self-Compensating piston return mechanism.
Extensive Range of Highly Responsive Control Options.
Auxiliary Gear Pump Option.
Rated Pressure 350 Bar.
Peak Pressure 400 Bar.
High Continuous Power Rating.
Fully Balanced Spherical Valve Plate.
Infinite displacement control.
Hydrostatically Balanced Swash Plate Support.
High Load Capacity Bearings.
| Model | K3VG63 | K3VG112 | K3VG180 | K3VG280 | K3VG180DT | K3VG280DT | |
| displacement，max.(cm³) | 63 | 112 | 180 | 280 | 360 | 560 | |
| Rated Pressure | bar | 350 | |||||
| Peak Pressure | bar | 1 continuous/4 peak | |||||
| Maximum Self Priming Speed(3) | rpm | 2600 | 2200 | 1850 | 1600 | 1850 | 1600 |
| Maximum Boosted Speed(4) | rpm | 3250 | 2700 | 2300 | 2000 | 2300 | 2000 |
| Maximum Input torque | N.m | 314 | 559 | 902 | 1400 | 1804 | 2800 |
| Weright | kg | 48 | 68 | 86 | 160 | 160 | 300 |

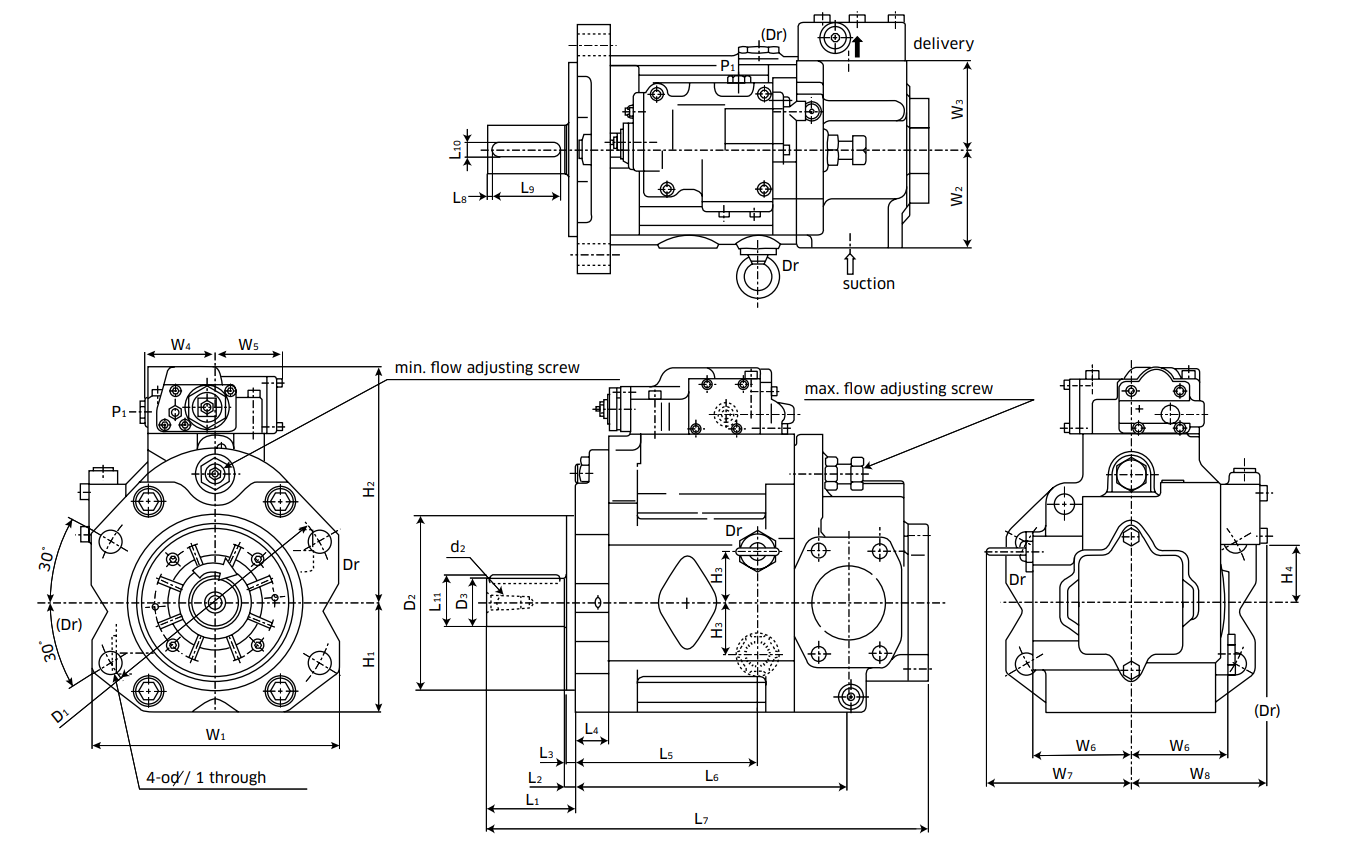

Axial Piston Pump Design
Applications
lndustrial manufacturing equipment
Machine tools and automation equipment
Hydraulic power units
Light engineering
Auxiliary equipment
Other industrial sectors
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The primary difference lies in the arrangement of pistons:
Axial piston pump: Pistons are arranged parallel to the drive shaft.
Radial piston pump: Pistons are arranged perpendicular (radially) around the shaft.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
