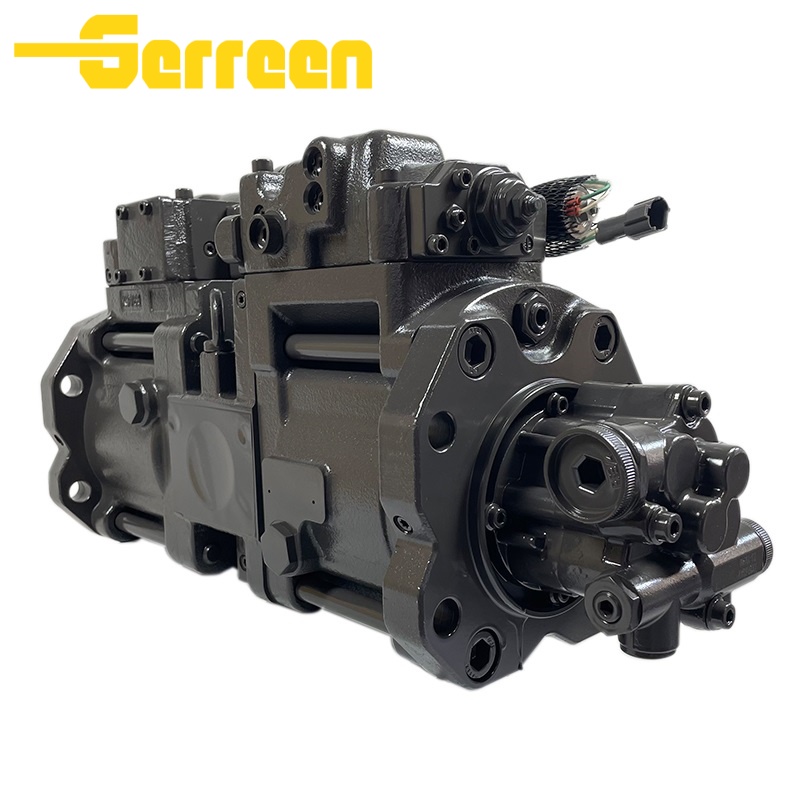

K3V63DTP Axial Piston Variable Pump

K3V63DTP Axial Piston Variable Pump overview

The K3V63DTP axial piston variable pump is a more affordable alternative to the original ，a high-performance swash plate type axial variable displacement piston pump developed and produced by Kawasaki Heavy Industries, belonging to the classic K3V series. It adopts a tandem double pump structure with an integrated PTO (Power Take-Off) interface, which is well-known for its high power density, stable operation and reliable high-pressure performance in medium-sized construction machinery applications. As a dedicated main pump for 11–15 ton excavators, this pump effectively balances efficiency, durability and compactness, providing stable and efficient power support for hydraulic systems in harsh working scenarios such as construction, mining and infrastructure, and has been widely recognized in the global construction machinery market with more than 25 years of application experience.

Core Features & Advantages

• High Power Density & Compact Structure: Adopting a half-cylindrical swash plate design, it achieves high pressure, light

  weight and compactness, effectively increasing power density (output per unit mass). The tandem double pump structure

  eliminates the power divider, improves transmission efficiency and reduces overall weight, which is perfectly adapted to

  the limited installation space of 11–15 ton excavators.

• High Efficiency & Strong Self-Priming Capacity: The adoption of a spherical valve plate and improved hydraulic balance

  ensures stable cylinder rotation, maintaining high volumetric efficiency even in low-pressure and low-speed ranges, and

  effectively reducing energy loss. With excellent self-priming performance, the maximum self-priming speed reaches 2650
  rpm, which can avoid cavitation caused by insufficient oil suction and ensure stable operation in complex working conditions.

• Long Service Life & High Durability: Equipped with large-capacity main bearings and a piston return mechanism that

  compensates for shoe wear, it can withstand long-term heavy-load impact and intermittent peak pressure of 39.2 MPa,

  significantly extending the service life under harsh working conditions such as mines and construction sites. The high-

  quality wear-resistant components (cylinder block, piston, valve plate) ensure stable performance and reduce maintenance

  frequency.

• Low Noise & Stable Operation: Through the optimized design of valve plate and pump casing rigidity, fluid pulsation and

  mechanical vibration during operation are effectively reduced, achieving lower noise operation and creating a more

  comfortable working environment for operators. The mature hydraulic control system ensures smooth displacement

  adjustment and stable power output without obvious pressure fluctuation.

• Versatile Control & Wide Compatibility: It supports multiple control modes such as constant power, pressure cut-off

  and negative flow control, which can accurately match the complex action needs of excavators, reduce energy consumption

  and improve operation smoothness. It is widely compatible with mainstream 11–15 ton excavator models, with complete

  accessories and convenient maintenance.

• Integrated PTO Interface & Practical Design: The integrated PTO interface can directly drive auxiliary components such

  as pilot gear pumps, simplifying the overall hydraulic layout of the equipment and reducing installation difficulty. The

  standardized interface design ensures interchangeability with original parts, facilitating quick replacement and maintenance.

Specifications

Application

1. Industrial Hydraulic Systems

2. Mobile Equipment

3. Construction and Engineering Machinery

4. Metallurgy and Steel Industry

5. Marine and Offshore Equipment

Packaging & Delivery

Axial piston variable pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Certifications & Quality Assurance

All  axial piston variable pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.Are you a manufacture for the vane pump or a wholesale ?

We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
